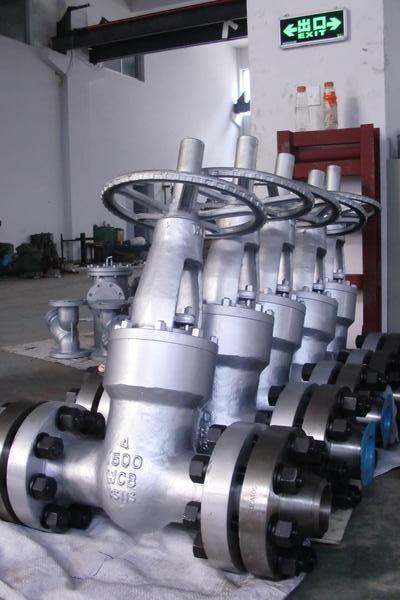

1500LB API 600 Gate Valve RTJ Bonnet Flanged Butt Welding Gate Valve

1500LB RTJ Presure Seal Gate Valve

EDVC Pressure seal Gate Valve are manufactured in accordance with API 600, ASME B16.34 specification and tested to API 598, and this series valves are of API 591 certified, and APl624, IS015848, TA Luft Certified. To ensure casting integrity.

Product Feature:

Flanged Ends I Butt Welding Ends
Pressure Seal Bonnet OS& Y
End to end dimensions and wall thickness conform to ANSI and API specification;
Anti blow-out stem design;
Ha「d facing seat design;
Gear operator can be furnished upon request; Optional by pass design;
Optional double packing with lantern ring;
Vacuum PWHT applied for Cr-Mo pup piece welding.

Product Range:

Body material: carbon steel, stainless steel, alloy steel

Nominal diameter: 1/2"～60"(DN15~1500)

Pressure range: Class150～2500(PN10~420)

End connection: RF, RTJ, BW

Working temperature:-29℃～+560℃
