2500LB WCC Pressure Seal Globe Valve / API 6D Globe Valve
2500LB WCC Pressure Seal Globe Valve
The pressure seal valves are designed in accordance with BS1873 and ASME B16.34 for service of high temperature and high pressure and are widely used in fossil fuel power plant. Compared with bolted bonnet joint valves, it provides absolute reliable sealing of the bonnet joint, so that the pressure seal valves are more compact and rigid as well as maintenance cost-effective at high temperature and high pressure service.
The two openings for medium flowing in and out are in the same direction, forming an angle of 180°. In addition, at seat and disc seal surface are over-lay with iron-base alloy or Co-base alloy or carbide alloy for long duration. For large size valves will be designed with main disc and vice disc type, and medium flow from up disc to down disc, that the operation torque will be greatly decreased and the seat tightness performance are more reliable
Design Features:
Design standard as per: BS1873,ASME B16.34, GB/T 12235, JB/T3595.
Generally, lift is just 1/4 of the valve seat port, ensuring a short opening and closing time.
Only one sealing face is designed on the valve body and valve disc,
For large size valves will be designed with main disc and vice disc type, and medium flow from up disc to down disc.
Full stellite overlay seat sealing surface
Good for manufacturing process and easy to maintain.
The valve is designed as a back seat sealing structure.
Use flexible and woven graphite collaboration type packing.
Absolute bonnet joint leak proof.
Optional by-pass design.
Product Range:
Body material: carbon steel, stainless steel, alloy steel
Nominal diameter: 1/2"～24"(DN15~DN600)
Pressure range:Class150～2500(PN10~PN420)
End connection: RF, RTJ, BW
Working temperature:-29℃～560℃
Operation: handwheel, gear box, electric,
Carbon & Stainless Steel Pressure Seal Gate Valves Class 600 - 2500

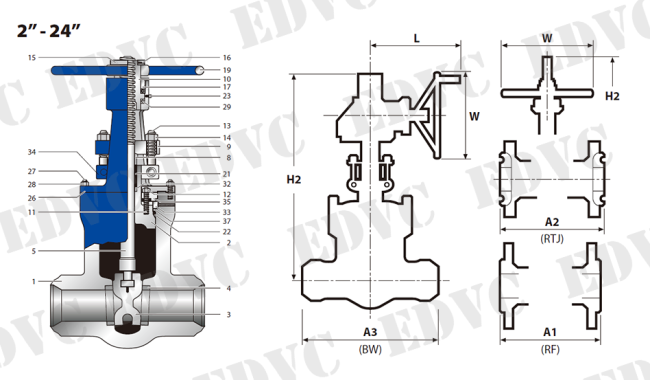

Bill of material
| NO | NAME OF PART | ASTM SPECIFICATION | ||||||
| CARBON STEEL | HIGH TEMPERATURE SERVICE | LOW TEMPERATURE SERVICE | STAINLESS STEEL | |||||
| 1 | BODY | A216-WCB | A217-WC6 | A217-WC9 | A217-C5 | A352-LCB/LCC/LC2/LC3 | CF8M | CF8C |
| 2 | BONNET | A216-WCB | A217-WC6 | A217-WC9 | A217-C5 | A352-LCB/LCC/LC2/LC3 | CF8M | CF8C |
| 3 | DISC | A216-WCB/CR13/316SS | A217-WC6 | A217-WC9 | A217-C5 | A352-LCB/LCC/LC2/LC3 | CF8M | CF8C |
| 4 | BODY SEAT RING | A 105+HARD FACE | A182-F11 | A182-F22 | A182-F50 | A182-F304 | F316 | F347 |
| 5 | STEM | A182-F6a | A182-F60 | A182-F6Q | A182-F6Q | A182-F304 | F316 | F347 |
| 8 | PACKING GLAND | A276-410 | A276-410 | A276-410 | A276-410 | A276-304 | F316 | F347 |
| 9 | GLAND FLANGE | A105 | A105 | A105 | A105 | A350 - LF2 | CF8M | CF8C |
| 10 | YOKE SLEEVE | A439-D2C | A439-D2C | A439-D2C | A439-D2C | B147-B8 | F316 | F347 |
| 11 | BONNET BOLT | A193-B7M | A193-B16 | A193-B16 | A193-B16 | A320-L7M | A193-B8 | A193-B8 |
| 12 | BONNET NUT | A194-2HM | A194-4 | A194-4 | A194-4 | A194-7M | A194-8 | A194-8 |
| 13 | GLAND BOLT | A193-B7M | A193-B7 | A193-B7 | A193-B7 | A320-L7M | A193-B8 | A193-B8 |
| 14 | GLAND NUT | A194-2HM | A194-2H | A194-2H | A194-2H | A194-7M | A194-8 | A194-8 |
| 15 | HANDLE NUT | STEEL | ||||||
| 16 | SET SCREW | STEEL | ||||||
| 17 | SLEEVE GLAND | STEEL | ||||||
| 19 | HANDWHEEL | A395 | ||||||
| 21 | PACKING | COMMERCIAL | ||||||
| 22 | GASKET | SPIRAL WOUND+GRAPHITE/RING JOINT | ||||||
| 23 | GREASE NIPPLE | STEEL | BRONZE | BRONZE | ||||
| 26 | YOKE | A216-WCB | A217-WC6 | A217-WC9 | A217-C5 | A352-LCC/LC1/LC2/LC3 | CF8M | CF8C |
| 27 | YOKE BOLT | A193-B7M | A193-B16 | A193-B16 | A193-B16 | A320-L7M | A193-B8 | A193-B8 |
| 28 | YOKE NUT | A194-2HM | A194-4 | A194-4 | A194-4 | A194-7M | A194-8 | A194-8 |
| 29 | BEARING | COMMERCIAL | ||||||
| 32 | PACKING WASHER | A276-410 | A276-410 | A276-410 | A276-410 | A276-304 | F316 | F347 |
| 33 | RETA1NER | A276-410 | A276-410 | A276-410 | A276-410 | A276-304 | F316 | F347 |
| 34 | HINGE CLAMP | A216-WCB | A217-WC6 | A217-WC9 | A217-C5 | A352-LCC/LC1/LC2/LC3 | CF8M | CF8C |
| 35 | BONNET CLAMP | A216-WCB | A217-WC6 | A217-WC9 | A217-C5 | A352-LCC/LC1/LC2/LC3 | CF8M | CF8C |
| 37 | GASKET SPACER | A276-410 | A276-410 | A276-410 | A276-410 | A276-304 | F316 | F347 |
ClaSS 600 - CarbON & STaINlESS STEEl PrESSurE SEal GaTE ValVES
DIMENSIONS & WEIGHTS
| VALVE SIZE | nps | 2 | 2.5 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 24 |
| dn | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | |
| A1 (RF) | in | 7.0 | 8.5 | 10.0 | 12.0 | 18.0 | 23.0 | 28.0 | 32.0 | 35.0 | 39.0 | 43.0 | 47.0 | 55.0 |
| mm | 178 | 216 | 254 | 305 | 457 | 584 | 711 | 813 | 889 | 991 | 1092 | 1194 | 1397 | |
| A2 (RTJ) | in | 11.5 | 13.0 | 14.0 | 17.0 | 22.0 | 26.0 | 31.0 | 33.0 | 35.0 | 39.0 | 43.0 | 47.0 | 55.0 |
| mm | 292 | 330 | 356 | 432 | 556 | 660 | 787 | 838 | 889 | 991 | 1092 | 1194 | 1397 | |
| A3 (BW) | In | 11.62 | 13.12 | 14.12 | 17.12 | 22.12 | 26.12 | 31.12 | 33.12 | 35.12 | 39.12 | 43.12 | 47.25 | 55.38 |
| mm | 295 | 333 | 359 | 435 | 562 | 663 | 790 | 841 | 892 | 994 | 1095 | 1200 | 1407 | |
|
H2 |
in | 23.2 | 24.8 | 26.3 | 36.0 | 42.5 | 49.9 | 59.5 | 70.5 | 73.1 | 85.1 | 88.6 | 97.2 | 118.1 |
| mm | 590 | 629 | 667 | 914 | 1080 | 1267 | 1511 | 1791 | 1857 | 2162 | 2251 | 2470 | 3000 | |
|
W |
in | 7.9 | 9.8 | 9.8 | 11.8 | 19.7 | 22.0 | 27.2 | 35.8 | 24.0 | 24.0 | 24.0 | 24.0 | 30.0 |
| mm | 200 | 250 | 250 | 300 | 500 | 560 | 690 | 610 | 610 | 610 | 610 | 610 | 760 | |
|
L |
in | / | / | / | / | / | / | / | 17.0 | 17.0 | 20.2 | 20.2 | 20.2 | 21.8 |
| mm | / | / | / | / | / | / | / | 432 | 432 | 512 | 512 | 512 | 554 | |
| WGT (RF) | lb | 154.4 | 209.5 | 220.5 | 326.3 | 540.2 | 705.6 | 948.2 | 1135.6 | 1477.4 | 1995.5 | 2535.8 | 3186.2 | 4586.4 |
| kg | 70 | 95 | 100 | 148 | 245 | 320 | 430 | 515 | 670 | 905 | 1150 | 1445 | 2080 | |
| WGT (BW) | lb | 136.7 | 176.4 | 185.2 | 253.6 | 377.1 | 474.1 | 590.9 | 701.2 | 959.2 | 1256.9 | 1587.6 | 1962.5 | 2833.4 |
| kg | 62 | 80 | 84 | 115 | 171 | 215 | 268 | 318 | 435 | 570 | 720 | 890 | 1285 |
ClaSS 900 - CarbON & STaINlESS STEEl PrESSurE SEal GaTE ValVES
DIMENSIONS & WEIGHTS
| VALVE SIZE | nps | 2 | 2.5 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 24 |
| dn | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | |
| A1 (RF) | in | 14.5 | 16.5 | 15.0 | 18.0 | 24.0 | 29.0 | 33.0 | 38.0 | 40.5 | 44.5 | 48.0 | 52.0 | 61.0 |
| mm | 368 | 419 | 381 | 457 | 610 | 737 | 838 | 965 | 1029 | 1130 | 1219 | 1321 | 1549 | |
| A2 (RTJ) | in | 14.62 | 16.62 | 15.12 | 18.12 | 24.12 | 29.12 | 33.12 | 38.12 | 40.88 | 44.88 | 48.5 | 52.5 | 61.75 |
| mm | 371 | 422 | 384 | 460 | 613 | 740 | 841 | 968 | 1038 | 1140 | 1232 | 1334 | 1568 | |
| A3 (BW) | in | 8.5 | 10.0 | 12.0 | 14.0 | 20.0 | 26.0 | 31.0 | 36.0 | 39.0 | 43.0 | 46.5 | 50.5 | 59.5 |
| mm | 216 | 254 | 305 | 356 | 508 | 660 | 787 | 914 | 991 | 1092 | 1181 | 1283 | 1511 | |
|
H2 |
in | 23.4 | 29.6 | 29.8 | 34.0 | 39.9 | 50.2 | 60.7 | 70.1 | 79.8 | 89.0 | 97.2 | 108.3 | 127.6 |
| mm | 594 | 753 | 756 | 864 | 1013 | 1276 | 1543 | 1781 | 2026 | 2261 | 2470 | 2750 | 3242 | |
|
W |
in | 11.8 | 17.7 | 17.7 | 19.7 | 22.0 | 18.1 | 24.0 | 24.0 | 24.0 | 24.0 | 29.9 | 29.9 | 24.0 |
| mm | 300 | 450 | 450 | 500 | 560 | 460 | 610 | 610 | 610 | 610 | 760 | 760 | 610 | |
|
L |
in | / | / | / | / | / | 16.8 | 17.0 | 20.2 | 20.2 | 20.2 | 21.8 | 21.8 | 20.1 |
| mm | / | / | / | / | / | 427 | 432 | 512 | 512 | 512 | 554 | 554 | 512 | |
| WGT (RF) | Ib | 132.3 | 207.3 | 224.9 | 330.8 | 617.4 | 1455.3 | 2116.8 | 2976.8 | 3748.5 | 5292 | 7320.6 | 9702.0 | 14927.9 |
| kg | 60 | 94 | 102 | 150 | 280 | 660 | 960 | 1350 | 1700 | 2400 | 3320 | 4400 | 6770 | |
| WGT (BW) | Ib | 88.2 | 141.1 | 176.4 | 220.5 | 407.9 | 1091.5 | 1620.7 | 2315.3 | 3087.0 | 4299.8 | 6019.7 | 8125.4 | 11973.2 |
| Kg | 40 | 64 | 80 | 100 | 185 | 495 | 735 | 1050 | 1400 | 1950 | 2730 | 3685 | 5430 |
ClaSS 1500 - CarbON & STaINlESS STEEl PrESSurE SEal GaTE ValVES
DIMENSIONS & WEIGHTS
| VALVE SIZE | nps | 2 | 2.5 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 24 |
| dn | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | |
| A1 (BW) | in | 8.5 | 10.0 | 12.0 | 16.0 | 22.0 | 28.0 | 34.0 | 39.0 | 42.0 | 47.0 | 53.0 | 58.0 | 64.0 |
| mm | 216 | 254 | 305 | 406 | 559 | 711 | 864 | 991 | 1067 | 1194 | 1346 | 1473 | 1626 | |
| A2 (RF) | in | 14.5 | 16.5 | 18.5 | 21.5 | 27.75 | 32.75 | 39.0 | 44.5 | 49.5 | 54.5 | 60.5 | 65.5 | 76.5 |
| mm | 368 | 419 | 470 | 546 | 705 | 832 | 991 | 1130 | 1257 | 1384 | 1537 | 1664 | 1943 | |
| A3 (RTJ) | in | 14.62 | 16.62 | 18.62 | 21.62 | 28.0 | 33.13 | 39.38 | 45.12 | 50.25 | 55.38 | 61.38 | 66.38 | 77.62 |
| mm | 371 | 422 | 473 | 549 | 711 | 841 | 1000 | 1146 | 1276 | 1406 | 1559 | 1686 | 1972 | |
|
H2 |
in | 23.4 | 29.6 | 29.6 | 34.0 | 48.0 | 51.6 | 64.8 | 77.8 | 87.2 | 91.8 | 111.1 | 122.1 | 148.3 |
| mm | 594 | 753 | 753 | 864 | 1219 | 1311 | 1645 | 1975 | 2216 | 2331 | 2823 | 3102 | 3766 | |
|
W |
in | 11.8 | 17.7 | 17.7 | 19.7 | 24.0 | 24.0 | 24.0 | 24.0 | 29.9 | 29.9 | 29.9 | 24.0 | 24.0 |
| mm | 300 | 450 | 450 | 500 | 610 | 610 | 610 | 610 | 760 | 760 | 760 | 610 | 610 | |
|
L |
in | / | / | / | / | 17.0 | 17.0 | 20.2 | 20.0 | 21.8 | 21.8 | 21.8 | 20.2 | 20.2 |
| mm | / | / | / | / | 432 | 432 | 512 | 512 | 554 | 554 | 554 | 512 | 512 | |
| WGT (RF) | Ib | 132.3 | 207.3 | 264.6 | 458.6 | 1058.4 | 2006.6 | 3109.1 | 4586.4 | 5755.1 | 7938 | 13141.8 | 16250.9 | 23395.1 |
| kg | 60 | 94 | 120 | 208 | 480 | 910 | 1410 | 2080 | 2610 | 3600 | 5960 | 7370 | 10610 | |
| WGT (BW) | Ib | 88.2 | 141.1 | 176.4 | 326.3 | 749.7 | 1499.4 | 2249.1 | 3197.3 | 3969 | 6063.8 | 10209.2 | 12612.6 | 18169.2 |
| kg | 40 | 64 | 80 | 148 | 340 | 680 | 1020 | 1450 | 1800 | 2750 | 4630 | 5720 | 8240 |
ClaSS 2500 - CarbON & STaINlESS STEEl PrESSurE SEal GaTE ValVES
DIMENSIONS & WEIGHTS
| VALVE SIZE | nps | 2 | 2.5 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 |
| dn | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | |
| A1 (RF) | in | 17.75 | 20.0 | 22.75 | 26.5 | 36.0 | 40.25 | 50.0 | 56.0 | 44 | 49 | 55 |
| mm | 451 | 508 | 578 | 673 | 914 | 1022 | 1270 | 1422 | 1118 | 1245 | 1397 | |
| A2 (BW) | in | 11 | 13 | 14.5 | 18 | 24 | 30 | 36 | 41 | 44 | 49 | 55 |
| mm | 279 | 330 | 368 | 457 | 610 | 762 | 914 | 1041 | 1118 | 1245 | 1397 | |
| A3 (RTJ) | in | 17.87 | 20.25 | 23.0 | 26.8 | 36.5 | 40.87 | 50.88 | 56.88 | / | / | / |
| mm | 454 | 514 | 584 | 683 | 927 | 1038 | 1292 | 1445 | / | / | / | |
|
H2 |
in | 23.4 | 29.6 | 29.6 | 34.3 | 47.3 | 57.1 | 63.4 | 82.5 | 90.2 | 97.2 | 116.1 |
| mm | 594 | 753 | 753 | 870 | 1201 | 1451 | 1610 | 2096 | 2291 | 2470 | 2950 | |
|
W |
in | 14.0 | 17.7 | 19.7 | 23.6 | 24.0 | 24.0 | 24.0 | 29.9 | 29.9 | 24.0 | 24.0 |
| mm | 355 | 450 | 500 | 600 | 610 | 610 | 610 | 760 | 760 | 610 | 610 | |
|
L |
in | / | / | / | / | 17.0 | 20.2 | 20.2 | 21.8 | 21.8 | 20.2 | 20.2 |
| mm | / | / | / | / | 432 | 512 | 512 | 554 | 554 | 512 | 512 | |
| WGT (RF) | lb | 172.1 | 273.4 | 334.1 | 702.7 | 1640.3 | 2673 | 48074 | 6925.5 | / | / | / |
| kg | 85 | 135 | 165 | 347 | 810 | 1320 | 2374 | 3420 | / | / | / | |
| WGT (BW) | lb | 101.3 | 182.3 | 1924 | 384.8 | 1053 | 1498.5 | 3240 | 6075 | 6885 | 8505 | 10125 |
| kg | 50 | 90 | 95 | 190 | 520 | 740 | 1600 | 3000 | 3400 | 4200 | 5000 |
