Full Opening Bolted Bonnet Swing Check Valve Class 150 - 2500 API 6D
Price:
Negotiable
MOQ:
1
Delivery Time:
50~90Days
Brand:
EDVC
Product Description
Bolted Bonnet Full Opening Swing Check Valve
EDVC Full Port Swing Check Valves are all designed to operate without any assistance, reacting to dominate flow direction. Minimal forward flow will instantly open the valve disc, while zero flow closes the valve disc preventing backflow. Optional mechanical devices (manual levers or gear operators) are available to manually or remotely open or close the valve.
The full port design results in lower turbulence and pressure drops than competitors. Full Port Swing Check Valves are fully “piggable” to accommodate inspection and cleaning devices. Available sizes range from 2” thru 36” in Classes 150 thru 2500.
Full Port Check Valves Carbon & Stainless Steel
Sizes 2” - 36”
Class 150 - 2500
| Design and Manufacturing Standards | |
| basic Design | aPI 6D & aNSI b16.34 |
| Shell Wall Thickness | aPI 6D |
| Face to Face Dimension | aNSI/aSME b16.10 |
| Flange End Dimension | aNSI/aSME b16.5 (2” to 24”) MSS SP-44 (26” & up) |
| butt-Weld End Dimension | aNSI/aSME b16.25 |
| Inspection & Testing | aPI 6D |
Carbon & Stainless Steel Full Port Check Valves Class 150 - 2500

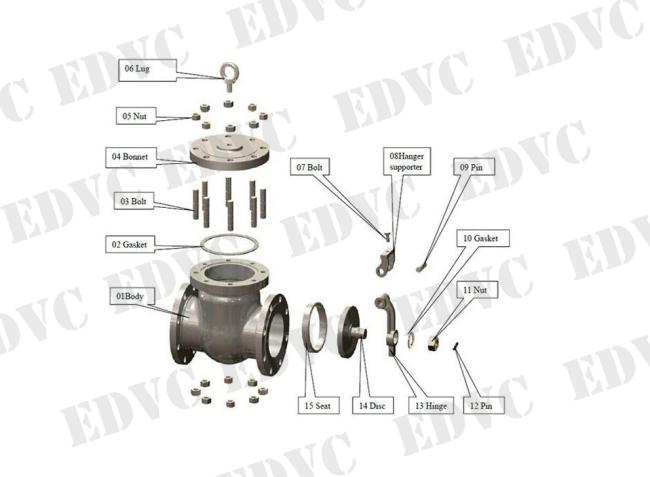

Bill of material
| NO | NAME OF PART | ASTM SPECIFICATION | ||||||
| CARBON STEEL | HIGH TEMPERATURE SERVICE | LOW TEMPERATURE SERVICE | STAINLESS STEEL | |||||
| 1 | BODY | A216-WCB | A217-WC6 | A217-WC9 | A217-C5 | A352-LCB/LCC/LC2/LC3 | CF8M | CF8C |
| 2 | BODY SEAT RING | A105+HARD FACE | A182-F11 | A182-F22 | A182-F5a | A182-F304 | F316 | F347 |
| 3 | DISC | A216 WCB+CR13 | A217-WC6 | A217-WC9 | A217-C5 | A352-LCB/LCC/LC2/LC3/LCC | CF8M | CF8C |
| 4 | DISC WASHER | AISI 304 | F316 | F347 | ||||
| 5 | DISC NUT | AISI 304 | F316 | F347 | ||||
| 6 | DISC PIN | AISI 304 | F316 | F347 | ||||
| 7 | ARM | A216-WCB | A217-WC6 | A217-WC9 | A217-C5 | A352-LCB/LC2/LC3 | CF8M | CF8C |
| 8 | BONNET BOLT | A193-B7M | A193-B16 | A193-B16 | A193-B16 | A320-L7M | A193-B8 | A193-B8 |
| 9 | BONNET NUT | A194-2HM | A194-4 | A194-4 | A194-4 | A194-7M | A194-8 | A194-8 |
| 10 | BONNET GASKET | SPIRAL WOUND+GRAPHITE/RING GASKET | ||||||
| 11 | COVER | A216-WCB | A217-WC6 | A217-WC9 | A217-C5 | A352-LCB/LCC/LC2/LC3 | CF8M | CF8C |
| 12 | EYE BOLT | C5 | SS | SS | ||||
| 13 | HINGE PIN | A276-410 | A276-410 | A276-410 | A276-410 | A276-304 | F316 | F347 |
| 14 | GASKET | GRAPHOIL | ||||||
| 15 | PLUG | C5 | F316 | F316 | ||||
ClaSS 150 - CarbON & STaINlESS STEEl Full POrT SWING CHECK ValVES

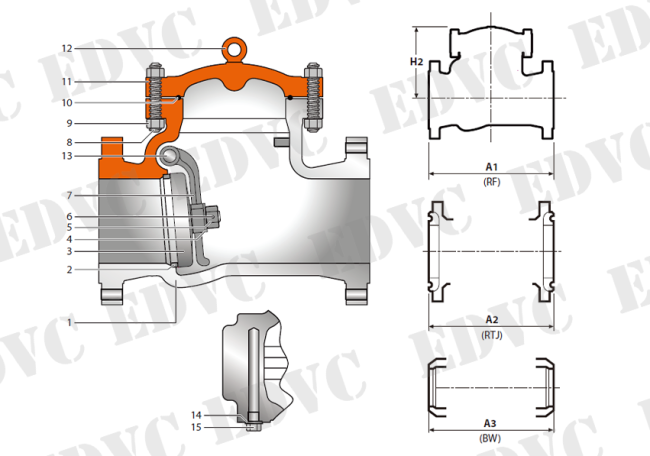

DIMENSIONS & WEIGHTS
| VALVE SIZE | nps | 2 | 2.5 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 24 | 28 | 30 | 36 |
| ds | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 700 | 750 | 900 | |
| A1 (RF) | in | 8.0 | 8.5 | 9.5 | 11.5 | 14.0 | 19.5 | 24.5 | 27.5 | 31.0 | 34.0 | 38.5 | 38.5 | 51.0 | 57.0 | 60.0 | 77.0 |
| mm | 203 | 216 | 241 | 292 | 356 | 495 | 622 | 698 | 787 | 864 | 978 | 978 | 1295 | 1448 | 1524 | 1956 | |
| A3 (BW) | in | 8.0 | 8.5 | 9.5 | 11.5 | 14.0 | 19.5 | 24.5 | 27.5 | 31.0 | 34.0 | 38.5 | 38.5 | 51.0 | 57.0 | 60.0 | 77.0 |
| mm | 203 | 216 | 241 | 292 | 356 | 495 | 622 | 698 | 787 | 864 | 978 | 978 | 1295 | 1448 | 1524 | 1956 | |
| H2 | in | 5.8 | 6.4 | 6.9 | 8.3 | 11.3 | 13.6 | 16.7 | 19.5 | 23.8 | 25.6 | 27.9 | 29.6 | 38.5 | 40.0 | 45.2 | 53.1 |
| mm | 147 | 163 | 176 | 210 | 288 | 346 | 424 | 496 | 605 | 649 | 708 | 752 | 978 | 1016 | 1149 | 1349 | |
| WGT (RF) | Ib | 35.2 | 48.5 | 66.1 | 97.0 | 172.0 | 260.2 | 520.4 | 757.8 | 929.7 | 1398 | 1799 | 2165 | 3925 | 4520.3 | 4643.9 | 7386.8 |
| kg | 16 | 22 | 30 | 44 | 78 | 118 | 236 | 344 | 422 | 634 | 816 | 982 | 1780 | 2050 | 2108 | 3350 | |
| WGT (BW) | Ib | 26.4 | 33.0 | 46.3 | 57.3 | 136.7 | 200.7 | 449.8 | 645.5 | 775.5 | 1195.0 | 1579.0 | 1879.0 | 3528.0 | 4300.0 | 4423.6 | 6945.8 |
| kg | 12 | 15 | 21 | 26 | 62 | 91 | 204 | 293 | 352 | 542 | 716 | 852 | 1600 | 1950 | 2008 | 3150 |
ClaSS 300 - CarbON & STaINlESS STEEl Full POrT SWING CHECK ValVES
DIMENSIONS & WEIGHTS
| VALVE SIZE | nps | 2 | 2.5 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 24 | 28 | 30 | 36 |
| ds | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 700 | 750 | 900 | |
| A1 (RF) | in | 10.5 | 11.5 | 12.5 | 14.0 | 17.5 | 21.0 | 24.5 | 28.0 | 33.0 | 34.0 | 38.5 | 40.0 | 53.0 | 59.0 | 62.75 | 82.0 |
| mm | 267 | 292 | 318 | 356 | 444 | 553 | 622 | 711 | 838 | 864 | 978 | 1016 | 1346 | 1499 | 1594 | 2083 | |
| A2 (RTJ) | in | 11.12 | 12.12 | 13.12 | 14.62 | 18.12 | 21.62 | 25.12 | 28.62 | 33.62 | 34.62 | 39.12 | 40.75 | 53.88 | 60.0 | 63.75 | 83.12 |
| mm | 283 | 308 | 333 | 371 | 460 | 549 | 638 | 111 | 854 | 880 | 994 | 1035 | 1368 | 1524 | 1619 | 2108 | |
| A3 (BW) | in | 10.5 | 11.5 | 12.5 | 14.0 | 17.5 | 21.0 | 24.5 | 28.0 | 33.0 | 34.0 | 38.5 | 40.0 | 53.0 | 59.0 | 62.75 | 82.0 |
| mm | 267 | 292 | 318 | 356 | 444 | 553 | 622 | 711 | 838 | 864 | 978 | 1016 | 1346 | 1499 | 1594 | 2083 | |
| H2 | in | 6.4 | 7.1 | 7.8 | 8.7 | 12.8 | 14.5 | 18.6 | 20.9 | 22.8 | 27.4 | 31.4 | 30.6 | 39.6 | 45.2 | 50.0 | 60.6 |
| mm | 163 | 180 | 197 | 220 | 326 | 368 | 473 | 530 | 580 | 695 | 797 | 776 | 1007 | 1149 | 1270 | 1540 | |
| WGT (RF) | Ib | 52.9 | 81.5 | 99.1 | 149.8 | 301.8 | 485.1 | 595.4 | 1091.5 | 1498.0 | 2094.8 | 2646.0 | 3304.5 | 4851.0 | 6174.0 | 7497.0 | 11025.0 |
| kg | 24 | 37 | 45 | 68 | 137 | 220 | 270 | 495 | 680 | 950 | 1200 | 1500 | 2200 | 2800 | 3400 | 5000 | |
| WGT (BW) | Ib | 46.3 | 77.1 | 77.1 | 112.4 | 242.3 | 401.3 | 463.1 | 1014.3 | 1156.6 | 1764.0 | 2138.9 | 2687.7 | 3924.9 | 5292.0 | 6504.8 | 9481.5 |
| kg | 21 | 35 | 35 | 51 | 110 | 182 | 210 | 460 | 525 | 800 | 970 | 1220 | 1780 | 2400 | 2950 | 4300 |
ClaSS 600 - CarbON & STaINlESS STEEl Full POrT SWING CHECK ValVES
DIMENSIONS & WEIGHTS
| VALVE SIZE | nps | 2 | 2.5 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 24 | 28 | 30 |
| ds | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 700 | 750 | |
| A1 (RF) | in | 11.5 | 13.0 | 14.0 | 17.0 | 22.0 | 26.0 | 31.0 | 33.0 | 35.0 | 39.0 | 43.0 | 47.0 | 55.0 | 63.0 | 65.0 |
| mm | 292 | 330 | 356 | 432 | 559 | 660 | 787 | 838 | 889 | 991 | 1092 | 1194 | 1397 | 1600 | 1651 | |
| A2 (RTJ) | in | 11.62 | 13.12 | 14.12 | 17.12 | 22.12 | 26.12 | 31.12 | 33.12 | 35.12 | 39.12 | 43.12 | 47.25 | 55.38 | 63.5 | 65.5 |
| mm | 295 | 333 | 359 | 435 | 562 | 664 | 791 | 841 | 892 | 994 | 1095 | 1200 | 1407 | 1613 | 1664 | |
| A3 (BW) | in | 11.5 | 13.0 | 14.0 | 17.0 | 22.0 | 26.0 | 31.0 | 33.0 | 35.0 | 39.0 | 43.0 | 47.0 | 55.0 | 63.0 | 65.0 |
| mm | 292 | 330 | 356 | 432 | 559 | 660 | 787 | 838 | 889 | 991 | 1092 | 1194 | 1397 | 1600 | 1651 | |
| H2 | in | 8.0 | 8.6 | 10.0 | 12.5 | 15.6 | 20.8 | 24.6 | 23.8 | 26.1 | 32.0 | 37.8 | 40.5 | 47.3 | 53.1 | 56.3 |
| mm | 202 | 219 | 253 | 318 | 397 | 529 | 625 | 604 | 664 | 812 | 960 | 1029 | 1202 | 1349 | 1429 | |
| WGT (RF) | Ib | 88.2 | 121.2 | 158.6 | 253.6 | 550.8 | 926.1 | 1349 | 1786.1 | 2425.5 | 3638 | 3969.0 | 6168.4 | 7197 | 9040.5 | 11025.0 |
| kg | 40 | 55 | 72 | 115 | 250 | 420 | 612 | 810 | 1100 | 1650 | 1800 | 2800 | 3264 | 4100 | 5000 | |
| WGT (BW) | Ib | 68.4 | 99.1 | 132.2 | 176.4 | 451.6 | 804.6 | 1085 | 1576.6 | 1940.4 | 2955 | 3197.3 | 5177.1 | 5654 | 7717.5 | 9481.5 |
| kg | 31 | 45 | 60 | 80 | 205 | 365 | 492 | 715 | 880 | 1340 | 1450 | 2350 | 2564 | 3500 | 4300 |
ClaSS 900 - CarbON & STaINlESS STEEl Full POrT SWING CHECK ValVES
DIMENSIONS & WEIGHTS
| VALVE SIZE | nps | 2 | 2.5 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 24 | 28 | 30 |
| ds | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 700 | 750 | |
| A1 (RF) | in | 14.5 | 16.5 | 15.0 | 18.0 | 24.0 | 29.0 | 33.0 | 38.0 | 40.5 | 44.5 | 48.0 | 52.0 | 61.0 | 69.0 | 73.0 |
| mm | 368 | 419 | 381 | 457 | 610 | 737 | 838 | 965 | 1029 | 1130 | 1219 | 1321 | 1549 | 1753 | 1854 | |
| A2 (RTJ) | in | 14.62 | 16.62 | 15.12 | 18.12 | 24.12 | 29.12 | 33.12 | 38.12 | 40.88 | 44.88 | 48.5 | 52.5 | 61.75 | 69.9 | 73.9 |
| mm | 371 | 422 | 384 | 460 | 613 | 740 | 841 | 968 | 1038 | 1140 | 1232 | 1333 | 1568 | 1775 | 1876 | |
| A3 (BW) | in | 14.5 | 16.5 | 15.0 | 18.0 | 24.0 | 29.0 | 33.0 | 38.0 | 40.5 | 44.5 | 48.0 | 52.0 | 61.0 | 69.0 | 73.0 |
| mm | 368 | 419 | 381 | 457 | 610 | 737 | 838 | 965 | 1029 | 1130 | 1219 | 1321 | 1549 | 1753 | 1854 | |
| H2 | in | 13.1 | 13.7 | 12.6 | 16.7 | 18.9 | 22.2 | 28.3 | 30.7 | 31.8 | 33.0 | 36.3 | 41.4 | 47.2 | 55.1 | 61.8 |
| mm | 333 | 349 | 321 | 423 | 479 | 565 | 721 | 781 | 807 | 838 | 921 | 1051 | 1200 | 1400 | 1569 | |
| WGT (RF) | Ib | 154.4 | 242.6 | 242.6 | 471.4 | 837.9 | 1374.7 | 2535.8 | 3197.3 | 3858.8 | 5336.1 | 7166.3 | 8820.0 | 12789.0 | 17309.3 | 19955.3 |
| kg | 70 | 110 | 110 | 214 | 380 | 624 | 1150 | 1450 | 1750 | 2420 | 3250 | 4000 | 5800 | 7800 | 9050 | |
| WGT (BW) | Ib | 110.3 | 191.8 | 187.4 | 383.3 | 661.5 | 1088.3 | 2094.8 | 2602,0 | 3197.3 | 4520.3 | 5953.5 | 7275.1 | 9922.5 | 14663.3 | 16868.3 |
| kg | 50 | 87 | 85 | 174 | 300 | 494 | 950 | 1180 | 1450 | 2050 | 2700 | 3300 | 4500 | 6650 | 7650 |
ClaSS 1500 - CarbON & STaINlESS STEEl Full POrT SWING CHECK ValVES
DIMENSIONS & WEIGHTS
| VALVE SIZE | nps | 2 | 2.5 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 24 |
| ds | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | |
| A1 (RF) | in | 14.5 | 16.5 | 18.5 | 21.5 | 27.75 | 32.75 | 39.0 | 44.5 | 49.5 | 54.5 | 60.5 | 65.5 | 76.5 |
| mm | 368 | 419 | 470 | 546 | 705 | 832 | 991 | 1130 | 1257 | 1383 | 1537 | 1664 | 1943 | |
| A2 (RTJ) | in | 14.62 | 16.62 | 18.62 | 21.62 | 28.0 | 33.13 | 39.38 | 45.12 | 50.25 | 55.38 | 61.38 | 66.38 | 77.62 |
| mm | 371 | 422 | 473 | 549 | 711 | 841 | 1000 | 1146 | 1276 | 1407 | 1559 | 1686 | 1972 | |
| A3 (BW) | in | 14.5 | 16.5 | 18.5 | 21.5 | 27.75 | 32.75 | 39.0 | 44.5 | 49.5 | 54.5 | 60.5 | 65.5 | 76.5 |
| mm | 368 | 419 | 470 | 546 | 705 | 832 | 991 | 1130 | 1257 | 1383 | 1537 | 1664 | 1943 | |
| H2 | in | 13.1 | 13.7 | 15.3 | 16.5 | 23.1 | 26.8 | 29.8 | 39.7 | 40.8 | 42.0 | 47.1 | 51.1 | 57.1 |
| mm | 333 | 349 | 389 | 419 | 587 | 680 | 756 | 1008 | 1035 | 1067 | 1197 | 1299 | 1451 | |
| WGT (RF) | Ib | 154.4 | 242.6 | 374.9 | 661.5 | 1531.1 | 2624.0 | 4079.3 | 7336 | 7938.0 | 10804.5 | 14553.0 | 17970.8 | 25908.8 |
| kg | 70 | 110 | 170 | 300 | 695 | 1190 | 1850 | 3330 | 3600 | 4900 | 6600 | 8150 | 11750 | |
| WGT (BW) | Ib | 110.3 | 191.8 | 297.7 | 540.2 | 1233.7 | 2127.8 | 3263.4 | 6080.3 | 6251.2 | 8599.5 | 11576.3 | 14222.3 | 19845.0 |
| kg | 50 | 87 | 135 | 245 | 560 | 965 | 1480 | 2760 | 2835 | 3900 | 5250 | 6450 | 9000 |
ClaSS 2500 - CarbON & STaINlESS STEEl Full POrT SWING CHECK ValVES
DIMENSIONS & WEIGHTS
| VALVE SIZE | nps | 2 | 2.5 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 |
| ds | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | |
| A1 (RF) | in | 17.75 | 20.0 | 22.75 | 26.5 | 36.0 | 40.25 | 50.0 | 56.0 | 62.0 | 68.0 |
| mm | 451 | 508 | 578 | 673 | 914 | 1022 | 1270 | 1422 | - | - | |
| A2 (RTJ) | in | 17.87 | 20.25 | 23.0 | 26.88 | 36.5 | 40.87 | 50.88 | 56.88 | - | - |
| mm | 454 | 514 | 584 | 683 | 927 | 1038 | 1292 | 1445 | - | - | |
| A3 (BW) | in | 17.75 | 20.0 | 22.75 | 26.5 | 36.0 | 40.25 | 50.0 | 56.0 | 62.0 | 68.0 |
| mm | 451 | 508 | 578 | 673 | 914 | 1022 | 1270 | 1422 | - | - | |
| H2 | in | 16.4 | 16.5 | 17.4 | 18.9 | 20.1 | 28.0 | 33.5 | 39.4 | 47.2 | 51.1 |
| mm | 416 | 419 | 441 | 479 | 511 | 711 | 851 | 1000 | 1200 | 1299 | |
| WGT (RF) | Ib | 330.8 | 529.2 | 771.8 | 1433.3 | 3197.3 | 5622.8 | 8709.8 | 12568.5 | - | - |
| kg | 150 | 240 | 350 | 650 | 1450 | 2550 | 3950 | 5700 | - | - | |
| WGT (BW) | Ib | 264.6 | 430.0 | 617.4 | 1190.7 | 2646.0 | 4851.0 | 6945.8 | 10032.8 | 13671.0 | 17860.5 |
| kg | 120 | 195 | 280 | 540 | 1200 | 2200 | 3150 | 4550 | 6200 | 8100 |
