600LB Handwheel Operation API Cast Steel Gate Valve OS&Y Bolted Bonnet
Price:
Negotiable
MOQ:
1
Delivery Time:
50~90Days
Brand:
EDVC
Product Description
600LB Handwheel Operation API 600 Gate Valve OS&Y Bolted Bonnet
OS&Y gate valves are specifically design to industry standards for straight thru, bi-directional flow which results in low flow loss and low pressure drop.
They are designed for applications where excellent flow conditions and tight shut-off are necessary. Our gate valves proudly service the oil/gas refining, pulp and paper, power generation and chemical/petrochemical industries worldwide.
We offer both Cast API 600 and Forged API 602 Gate valve designs in a wide range of sizes, pressure classes and materials to fit even the most unique and rugged applications on the planet!
Cast and Forged Steel Designs
-
A Plethora of Specialty Alloys to Choose From
-
Cryogenic, Pressure Seal & Automated Options Available
-
Features:
Outside Screw and Yoke (OS & Y), Rising Stem.
Bolted Bonnet.
Flexible Wedge (2" Solid).
Extended Bonnet for Cryogenic Services.
By Pass on Request.
Locking Device Optional.
Specifications:
Design: ASME B16.34/API 600.
Face to Face: ASME B16.10.
End to End: ASME B16.10.
End Flange: ASME B16.5/B16.47.
BW End: ASME B16.25.
Test: API 598.
Special: NACE MR-01-75.

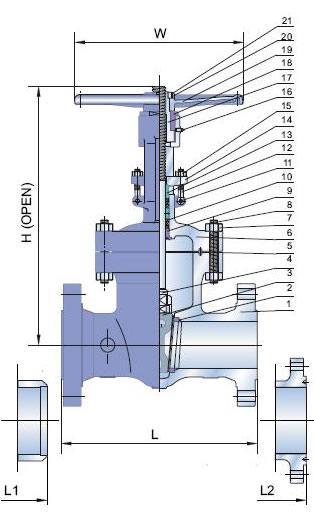

Structure of CL 600 LB Gate Valves
![ASME B16.34 Class 600 LB Cast Steel Gate Valve Flanged Ends]( "ASME B16.34 Class 600 LB Cast Steel Gate Valve Flanged Ends")
Parts & Materials:
1. Body: ASTM A216 GR.WCB.
2. Seat Ring: ASTM A105+Stellite Faced.
3. Disc: ASTM A216 GR.WCB+13Cr Faced.
4. Stem: ASTM A182 GR.F6.
5. Gasket: Soft Iron + Graphite.
6. Bonnet: ASTM A216 GR.WCB.
7. Bonnet Bolt Nuts: ASTM A194 GR.2H.
8. Bonnet Bolts: ASTM A193 GR.B7.
9. Backseat Bushing: ASTM A276 Type 410.
10. Stem Packing: Braided Graphite & Die formed Graphite Ring.
11. Eyebolt Pins: Carbon Steel.
12. Gland Eyebolts: ASTM A307 GR.B.
13. Gland: ASTM A276 Type 410.
14. Gland Flange: ASTM A216 GR.WCB.
15. Eyebolt Nuts: ASTM A194 GR.2H.
16. Grease Nipple: Carbon Steel.
17. Stem Nut: ASTM A439 GR.D-2.
18. Retaining Nut: Carbon Steel.
19. Hand wheel: Ductile Iron.
20. Hand wheel Nut: Carbon Steel.
21. Screw: Carbon Steel.
22. Yoke: ASTM A216 GR.WCB.
23. Yoke Pan Bolt: ASTM A194 GR.2H.
24. Nuts Yoke Pan Bolts: ASTM A193 GR.B7.
25. Bearing: Steel.
26. Lantern Ring on Request: ASTM A276 Type 410.
![Yoke]( "Yoke")
![Bearing]( "Bearing")
![Lantern Ring]( "Lantern Ring")
![Gear]( "Gear")
NPS d in 2 2-1/2 3 4 6 8 10 12 14 16 18 20 mm 51 64 76 102 152 200 248 298 327 375 419 464 L-L1 (RF-BW) in 11.50 13.00 14.00 17.00 22.00 26.00 31.00 33.00 35.00 39.00 43.00 47.00 mm 292 330 356 432 559 660 787 838 889 991 1092 1194 L2 (RTJ) in 11.62 13.12 14.12 17.12 22.12 26.12 21.12 33.12 35.12 39.12 43.12 47.25 mm 295 333 359 435 562 664 791 841 892 994 1095 1200 H (open) in 16.81 18.62 21.18 25.87 34.33 43.35 50.35 58.50 64.69 70.79 82.72 88.94 mm 427 473 538 657 872 1102 1279 1486 1643 1798 2101 2259 W in 9.84 9.84 11.81 13.78 19.69 22.05 28.35 24.02 24.02 24.02 24.02 29.92 mm 250 250 300 350 500 560 720 610 610 610 610 760 WT (Kg) BF 41 58 88 131 253 413 623 784 1288 1820 2150 2540 BW 35 50 68 104 208 328 496 637 1120 1448 1828 2201
