Anticorrosion Dust Collector Filter Cage
Galvanized Steel High Temperature Dust Collector Filter Cage With Weld Scars
The function of filter bag cage:
The role of the filter cage of the dust collector, the dust removal skeleton is called the rib of the dust filter bag, it should be light and easy to install and maintain, and the quality of the frame will also directly affect the filter state and service life of the filter bag. The dust removal skeleton and the dust removal filter bag are used together and are interdependent. The purpose of the dust removal skeleton is to support the dust removal equipment bag and use it together. The dust removal skeleton is the main accessory of the bag filter, commonly known as the rib of the outer filter and dust removal equipment. The dust removal equipment is frequently shaken during the working process, and the dust removal skeleton plays a supporting role and must be strong and durable. Therefore, the dust removal skeleton should be light, smooth, straight, and strong; there is no welding flash and no burr at the welding place.
Galvanized treatment dust collector filter bag cage Filter bag cage production:
Strong, wear-resistant and corrosion-resistant coating
Avoid the corrosion of the skeleton surface and the adhesion of the filter bag after the dust collector runs for a period of time, which will damage the bag.
To ensure smooth bag replacement, while reducing damage to the bag during the replacement process.
Increase usage time and reduce downtime.
| Goods Name | Standard | Description | Goods Name | Standard | Description |
| Clamps | φ180 | Spring curb | 120*2 | Normal quenching steel belt | |
| φ230 | 130*2 | ||||
| φ250 | 150*2 | ||||
| φ260 | 200*2 | ||||
| φ292 | 292*2 | ||||
| φ300 | 300*2 | ||||
| Hoop | φ160 | φ300-φ270 using wire rod ofφ4.2 | 120*2.5 | ||
| φ170 | 130*2.5 | ||||
| φ180 | 150*2.5 | ||||
| φ200 | 182*2.5 | ||||
| φ210 | 202*1.3 | Quenching stainless steel belt | |||
| φ250 | φ180 using wire rod of φ3.3 | 127*1.5 | |||
| φ260 | 127*1.9 | If it is highly corrosive, we can use titanium curb | |||
| φ280 | 130*2.5 | ||||
| φ292 | φ260-φ180 using wire rod of φ3.8 | 150*2.5 | |||
| φ300 | 129.6*2.5 | ||||
| φ400 | 280*2 | ||||
| φ615 | Pendant chain device | Hung huang, pendant chain | |||

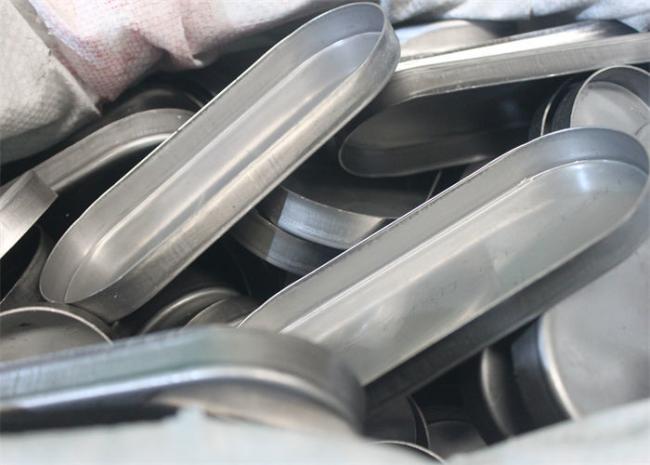

| Cap | 180 | upper cap lower cap | |||
| 200 | |||||
| 230 | Venturi tube | Carbon steel | |||
| 250 | Aluminum | ||||
| 292 | Stainless steel | ||||
| 300 | Unifying covering cap and venturi tube(integration) | ||||
| Filter cage | Material: hard-drawn wire | Galvanization treatment | Normal | Yellow | |
| White zinc plated treatment | High quality | Light silver | |||
| Organic silicon treatment | Black | ||||
| Material: stainless steel | 201-316L | ||||
| Any special requirement and production can be processed according to buyer’s sample(with | |||||
Why choose us?
1. Factory Experience: We are an experienced manufacturer with complete production lines and professional production equipment.
2. Quality assurance: We always strictly implement the quality management system, run through every detail of production, and be responsible for the products required by customers.
3. One-stop purchasing: We provide one-stop purchasing of filtration products to meet the different needs of global customers.
4. Other advantages: We respond quickly within 12 hours, provide efficient and high-quality services and competitive prices.

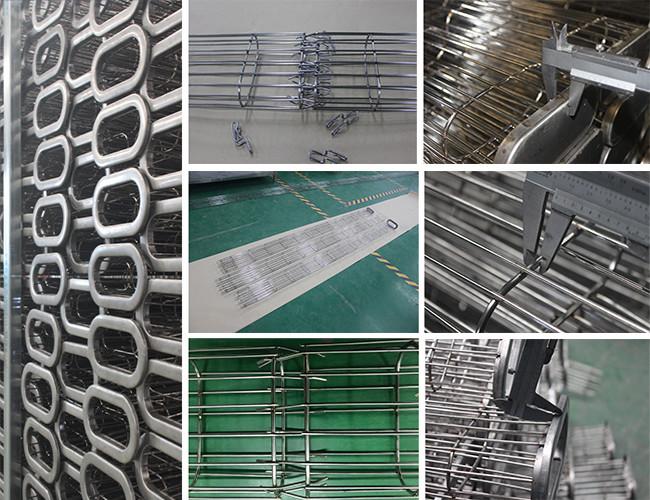

Filter Bag Cage Production Process:
Our factory:
Our Certificate:
More details, pls feel free to contact us, Thanks
