High Strength SS304 SS316 Round Bag Filter Parts Filter Cages Anticorrosion

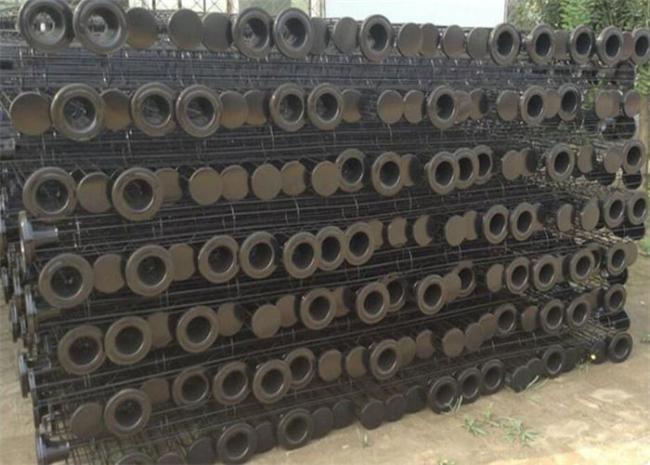

Stainless Steel High Strength Corrosion Resistant Round Filter Bag Cage
The function of filter bag cage:Filter bag cage is an accessory of pulse bag filter. It is formed by one-time welding with special equipment, and has the characteristics of firm welding and smooth and straight appearance.
The filter bag cage is an important part of the dust collector. It is the "rib" of the dust filter bag. It should be light and easy to install and maintain. The quality of the filter cage directly affects the filter state and service life of the filter bag. The key to the dust collector is to clean the dust, and the cleaning effect determines the success or failure of the dust filter bag cage and even the entire dust collector.
Filter Bag Cage Stainless Steel process:
Stainless steel is a term used to identify a family of steels with a minimum content of at least 11% chromium, an element that imparts extreme corrosion resistance to the material. Due to the passivation phenomenon, stainless steel is resistant to corrosion. Elements present in stainless steel react easily with the surrounding environment, especially chromium, which helps to form a thin protective layer that protects the material from subsequent corrosion attacks. Other elements, such as nickel, molybdenum, and titanium, make stainless steel easy to bend, weld, stamp, and machine so that it can be machined. Stainless steels fall into three broad categories: austenitic, ferritic, and martensitic. The steels used by CleanAir Europe belong to the austenitic series (300 series) for the manufacture of baskets and components.
Stainless Steel 316 is used in very harsh environments where there are many corrosion factors that can prolong over time. These environments include marine areas, saline environments, fumes or dust collectors handling chemicals.
Stainless steel 304 is used in environments where there are corrosive factors, but not as high humidity as the stainless steel 316 environment just described.
The Stainless Steel 304 Oval Filter Bag Cage Specifications:
| Type | Number of longitudinal threads |
Diameter of the longitudinal wires | Ring wire diameter | Material |
| Round Filter Cage | 6~24 10, 12, and 20 vertical wires most common |
3~6mm 10, 11, and 12 gauge wire most common |
86~190mm Common diameters: 4″ – 6-1/8″ |
Aluminum, S235JR, Galvanized Steel, 201, SS 304, SS 316, ABS, Carbon/Mild Steel, Epoxy Coated (High Temperature <325°) |
| Oval Filter Cage | 6-8-10--16 | 3~6mm 10, 11, and 12 gauge wire most common |
||
|
In addition to the above information, we also need your quantity, length, Distance of rings, collar and venturi condition. If you have drawings, we will produce according to the drawings.
Filter Bag Cage Top:Rolled Flange (Turned Down Flange),Split Collar (Rolled Band),Slotted,All Wire,Split Ring,Collar venturi...
|
||||
Why choose us?
1. Factory Experience: We are an experienced manufacturer with complete production lines and professional production equipment.
2. Quality assurance: We always strictly implement the quality management system, run through every detail of production, and be responsible for the products required by customers.
3. One-stop purchasing: We provide one-stop purchasing of filtration products to meet the different needs of global customers.
4. Other advantages: We respond quickly within 12 hours, provide efficient and high-quality services and competitive prices.
Filter Bag Cage Production Process:
Our factory:
Our Certificate:
More details, pls feel free to contact us, Thanks
