125mm 130mm Cement Filter Bags
Anti-Static Coal Mill Dust Collector Cement Plant Filter Bag
Cement Plant Filter Bag Introduction:
There are a lot of dust sources in the process of cement production, such as crusher, mill, conveyor, silo, top, bottom and packaging system, which will produce a lot of dust and soot, and the pollution to the environment is also very serious.
In cement industry, a large number of bag filters are used. According to the characteristics of dust conditions, it is very important to choose and use filter material correctly. It is generally divided into the following three types of filter media:
High temperature filter material: kiln head, kiln end, dryer
Anti-static filter material: coal mill
Normal temperature filter material: bin, packing station, cement mill and other environmental dust removal
Cement Plant Filter Bag Specifications:
| Industry | Application location | Common working conditions | Material |
| Cement plant | Raw mill | Inlet flue gas temperature:70-100℃ The moisture content is about 10% (The leakage point is about 45%) |
Polyester filter bags(Water and oil resistant) |
| Dryer | Inlet flue gas temperature:160-200℃ The moisture content is about 20%(The leakage point is about 60%) No corrosive gas |
Aramid + Fiberglass composite filter bags | |
| Coal mill dust removal | Inlet flue gas temperature:70-100℃ The moisture content is about8%(The leakage point is about 45%) |
Polyester filter bags , waterproof, oil-proof and anti-static | |
| Kiln head | Inlet flue gas temperature:100-180℃, The amount of dust at the inlet is large |
1,Aramid 2,P84+Fiberglass 3,P84+Aramid 4,P84 |
|
| Preheater | Inlet flue gas temperature:100-240℃, The moisture content is about10% No corrosive gas |
1,Aramid 2,P84+Fiberglass 3,P84+Aramid 4,P84 |
|
| Cement grinding | Inlet flue gas temperature:70-90℃, Inlet dust concentration is high(600g/m³) |
Polyester anti-static,film | |
| Slag | Inlet flue gas temperature:100-130℃, The moisture content is about 30%(The leakage point is about 65℃) |
Acrylic membrane filter bag | |
| Cement packer | Dust removal in ordinary environment | Polyester filter bag | |
| Cement bulk machine | |||
| Lift transporter | |||
| Crusher |
Production Process:
There are 19 working produres. Every product from Sinft had undergone detailed perfection.
Scientific surface treatment like heat setting, dipping, singeing, calendering and coating can signigicantly prevent the fabric from
shrinking,remove surface batting, imrove filtration effectiveness and increase heat resistant.
Package:
The dust filter bags are packed in PP woven bags or according to your requirements.
Company Introduction:
Hebei Sinft filter Co.,Ltd is a high-tech enterprise group integrating R&D, production and sales of dust
collector filter bags and filter cages. We are founded in 2007 and located in Shijiazhuang.

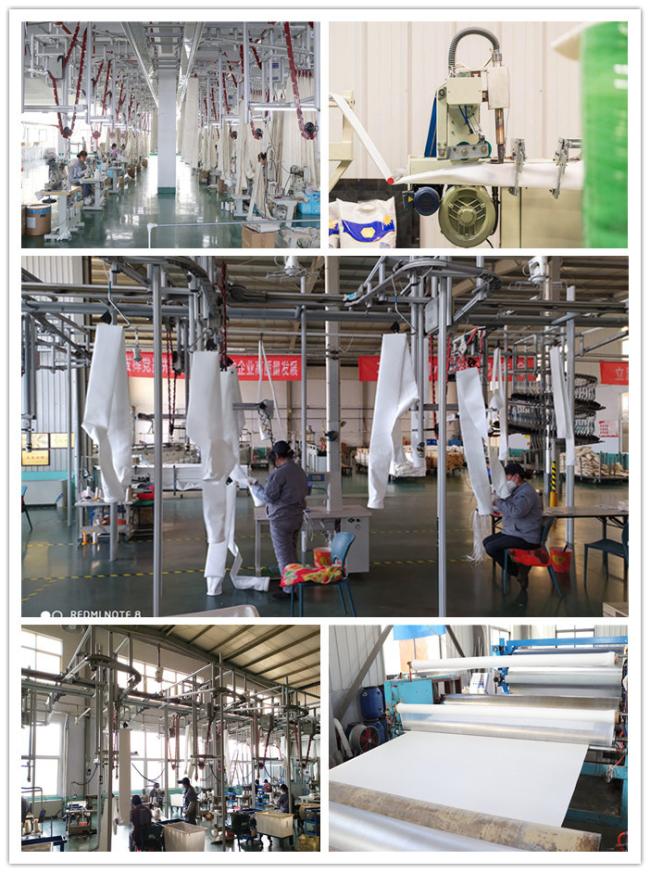

We own the most advanced complete sets of production equipment, the high-speed acupuncture production
lines, heat-setting and high temperature after-treatmentunits, laminating units, sewing equipment, and hanging
production lines.
Daily production capacity of filter bag is more than 7000 pcs, the scale of production and equipment are at the
forefront of the industry.
Sinft Team:
We often attend international and domestic exhibitions. The company will organize team building
activities regularly. We are not only colleagues, but also family members.
Sinft Certificate:
We have ISO 9001 Certifications. Our products are used in many places at home and abroad, such as
power plants in North America, cement plants in Europe which all Won high praise.
More details, pls feel free to contact us, Thanks
