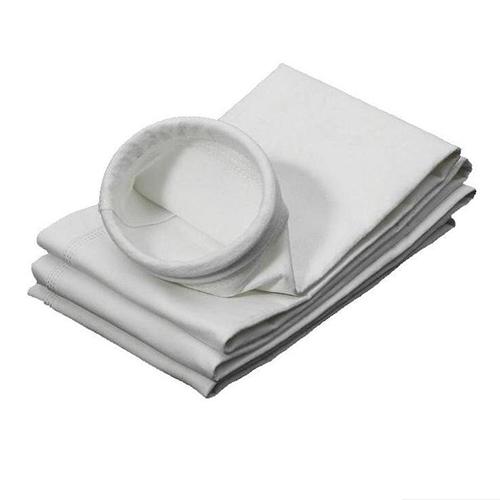

PTFE Membranes Dust Filter Bag
Long Life PTFE Film Dust Filter Bag for Pulse Jet Baghouse
Dust Filter Bag Introduction:
Pulse-Jet and plenum pulse baghouses collect dust on the outside of the filter bag. Dust-laden gas floods the baghouse, and
clean air exits through the inside of the filter bag while the dust particles collect on the outside filter bag surface. A support cage
prevents filter bag collapse during filtration, and aids in the re-distribution and cleaning of the dustcake. A wide variety of filter bags
can be manufactured to meet specific application needs.
We offer a wide range of filter meddia such as polypropylene, acrylic, polyester, aramid, PPS, P84, fiberglass and many other options
and finished such as high-efficiency PTFE membranes to meet the needs of different industries.
Dust Filter Bag material: Low Temp Filter Bag Media and High Temp Filter Bag Media.
Low Temp Filter Bag Media:
| Media | Relative Cost | Max Continuous Operating Temperature | Abrasion | Energy Absorpsion | Filtration Properties | Moist Heat | Alkaline | Mineral Acids | Oxygen (15%+) |
| Polyester | $ | 275 Degrees F. |
Excellent |
Excellent | Excellent | Poor | Fair | Fair | Excellent |
| Polypropylene |
$
|
170 Degrees F. | Excellent | Good | Good | Excellent | Excellent | Excellent | Excellent |
| Acrylic | $$ | 265 Degrees F. | Good | Good | Good | Excellent | Fair | Good | Excellent |
High Temp Filter Bag Media:
| Media | Relative Cost | Max Continuous Operating Temperature | Abrasion | Energy Absorpsion | Filtration Properties | Moist Heat | Alkaline | Mineral Acids | Oxygen (15%+) |
| Nomex | $$$ | 400 Degrees F. | Good | Good | Excellent | Good | Good | Fair | Excellent |
| Fiberglass | $$$$ | 500 Degrees F. | Fair | Fair | Fair | Excellet | Fair | Poor | Excellent |
| PPS | $$$$$ | 375 Degrees F. | Good | Good | Good | Good | Excellent | Excellent | Poor |
| P84 | $$$$$$ | 500 Degrees F. | Fair | Good | Excellent | Good | Fair | Good | Excellent |
| PTFE |
$$$$$$$
|
500 Degrees F. | Good | Good | Fair | Excellent | Excellent | Excellent | Excellent |
Production Process:
There are 19 working produres. Every product from Sinft had undergone detailed perfection.
Scientific surface treatment like heat setting, dipping, singeing, calendering and coating can signigicantly prevent the fabric
from shrinking,remove surface batting, imrove filtration effectiveness and increase heat resistant.
Package:
The dust filter bags are packed in PP woven bags or according to your requirements.
Company Introduction:
Hebei Sinft filter Co.,Ltd is a high-tech enterprise group integrating R&D, production and sales of dust
collector filter bags and filter cages. We are founded in 2007 and located in Shijiazhuang.
We own the most advanced complete sets of production equipment, the high-speed acupuncture production
lines, heat-setting and high temperature after-treatmentunits, laminating units, sewing equipment, and hanging
production lines.
Daily production capacity of filter bag is more than 7000 pcs, the scale of production and equipment are at the
forefront of the industry.
Sinft Team:
We often attend international and domestic exhibitions. The company will organize team building
activities regularly. We are not only colleagues, but also family members.
Sinft Certificate:
We have ISO 9001 Certifications. Our products are used in many places at home and abroad, such as
power plants in North America, cement plants in Europe which all Won high praise.
More details, pls feel free to contact us, Thanks
| Excellent |
