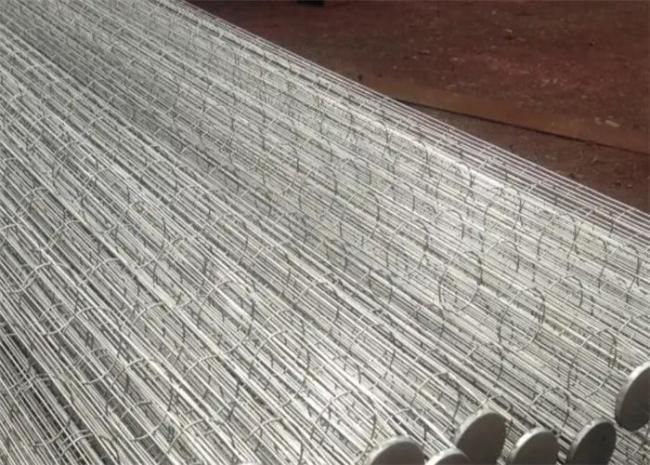

8 Vertical Wires Industrial Stainless Steel Filter Cage With Venturi Epoxy Coated
8 Vertical Wire Round Epoxy Coated Stainless Steel Filter Cage With Venturi
The function of Stainless Steel Filter Cage:
Stainless steel filter cage, also known as dust bag cage, is an indispensable accessory of bag filter. It is used as a frame to support dust filter bags. It can be compatible with six, eight, ten, twelve, sixteen, eighteen , Twenty, twenty-four ribs, the role of the dust removal skeleton is very large, and it is widely used in the dust removal industry and the chemical industry and other industrial places.
Shape: 1. (outer filter bag); 2. (outer filter type); 3. (outer filter type) (oval, diamond); 4. envelope type; 5. multi-section frame (oval multi-section frame. Round bag type multi-section frame (insert type, chuck type)); 6. Finished frame (frame with venturi. Frame packed in plastic bag and iron frame. Neatly arranged diamond frame)
The cage of the organic silicon Stainless Steel Filter Cage is a dust skeleton formed by one-time welding of carbon steel by a multi-head high-frequency automatic spot welding machine and subjected to post-processing of organic silicon.
The cage of the silicone dust collector is treated with silicone technology, which can replace the stainless steel frame, which can greatly reduce the maintenance cost of the equipment, and each frame manufactured can meet the requirements of lightness, smoothness and straightness.
The use temperature of the framework of the silicone dust collector can be used in the industrial and mining environment of about 280 ° C, and the instantaneous use temperature can reach 300 ° C. In some specific environments, it can replace the stainless steel dust removal skeleton to reduce the manufacturing cost of the enterprise. The production process of the skeleton of the silicone dust collector is the same as that of the plastic sprayed dust removal skeleton, except that the temperature and time of the drying process are higher than that of the plastic sprayed dust removal skeleton, and the powder sprayed on the surface of the dust collector skeleton is organic silicon powder.
Specifications
| Types: | Round Style/Flat Style/Envelope Style/ Special Style | ||
| Number Of Wires: | 8/10/12/16/20/24 vertical wires(usually) | ||
| Ring Space: | Ring spacing standard is 6 inch or 8 inch.(15.24cm or 20.32cm) | ||
| Cage Diameter: | Cage diameters range from 4 inch to 8 inch (100mm to 200mm) | ||
| Wire thickness: | Wire thickness ranges are 2mm to 5mm | ||
| Material: | Carbon Stee, Galvanized Steel, Stainless Steel | ||
| Finishment: | Epoxy, PVC vinyl coating | ||
| Packaging: | Cages are packed in custom designed cartons | ||
| Usage: | Dust from factory of mine, wood,Cement, chemical, medicine, dying,Paint, plastic, food & other industry,such as coal fired power stations, Steel Power station, Cement industry, Paper industry & other Industrial Segments. | ||
| Advantages: | 1.no corrosion 2.no damage 3.3-5 times longer life than other bag Cage with steel | ||
| 4. economical maintenance(almost no Maintenance required) | |||
| 5.prominent effect in removing dust from Filter by pulsing 6.easy to install | |||
| 7.no ventury installation required | |||
Standard Technical Data
| Round Style | Diameter(mm) | Bag Diameter(mm) | Length(mm) |
| 115 | 120 | 2000,2400 2800, | |
| 3200,3600,4000, | |||
| 125 | 130 | 4400,4800,5200, | |
| 147 | 152 | 560,060,007,000 | |
| 195 | 200 | ||
| Flat Style | Perimeter | Bag Perimeter | Length(mm) |
| 800 | 800 | 2000 3000 4000 | |
| 5000 6000 | |||
| 900 | 900 | ||
| Envelope Style | Length Width Thickness | Bag Length Width Thickness | |
| 1500X750x25mm | 1500X750x25mm | ||
Why choose us?
1. Factory Experience: We are an experienced manufacturer with complete production lines and professional production equipment.
2. Quality assurance: We always strictly implement the quality management system, run through every detail of production, and be responsible for the products required by customers.
3. One-stop purchasing: We provide one-stop purchasing of filtration products to meet the different needs of global customers.
4. Other advantages: We respond quickly within 12 hours, provide efficient and high-quality services and competitive prices.
Filter Bag Cage Production Process:
Our factory:
Our Certificate:
More details, pls feel free to contact us, Thanks
