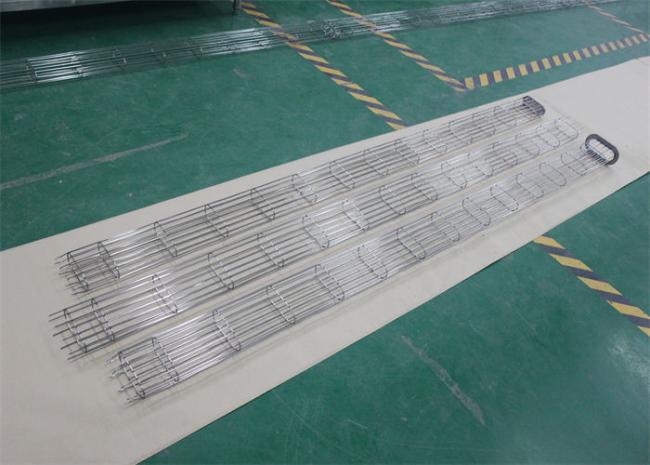

Circular 12 Vertical Lines Bag Supporting Cages in chemical industry
Circular 12 Vertical Lines Multi-Section Filter Cage Made Of High Temperature Carbon Steel
The function of filter bag cage:
Dust Collector Filter Cage, cloth bag cage bone is used in dust collectors in chemical industry, metallurgy, building materials, steel, cement, thermal power and other industries, to support the dust filter bag inside, to prevent collapse during blowing and cleaning, filter bag cage The quality of the bone directly affects the service life of the dust filter bag and the dust removal effect of the filter bag dust collector, which is one of the important accessories in the dust collector.
The filter bag cage bone is made of cold-drawn carbon steel wire or stainless steel wire as raw material, and it is formed by one-time welding with multi-head welding equipment. During the installation process, the filter bag will be scratched or the installer will be scratched, resulting in no loss.
Galvanized treatment dust collector filter bag cage Filter bag cage production:
The Dust Collector Filter Cage adopts galvanized technology, and the coating is firm, wear-resistant and corrosion-resistant, which avoids the rust on the surface of the skeleton and the adhesion of the filter bag after the dust collector works for a period of time, ensures the smooth change of the dust filter bag, and reduces the damage to the bag during the bag change process. . Features of dust removal framework The flow pattern design of the shell cyclone dust collector can act as a local cyclone and reduce the load of the filter bag. The shape of the cylindrical vault, the force is average, and the anti-explosion performance is good.
| Goods Name | Standard | Description | Goods Name | Standard | Description |
| Clamps | φ180 | Spring curb | 120*2 | Normal quenching steel belt | |
| φ230 | 130*2 | ||||
| φ250 | 150*2 | ||||
| φ260 | 200*2 | ||||
| φ292 | 292*2 | ||||
| φ300 | 300*2 | ||||
| Hoop | φ160 | φ300-φ270 using wire rod ofφ4.2 | 120*2.5 | ||
| φ170 | 130*2.5 | ||||
| φ180 | 150*2.5 | ||||
| φ200 | 182*2.5 | ||||
| φ210 | 202*1.3 | Quenching stainless steel belt | |||
| φ250 | φ180 using wire rod of φ3.3 | 127*1.5 | |||
| φ260 | 127*1.9 | If it is highly corrosive, we can use titanium curb | |||
| φ280 | 130*2.5 | ||||
| φ292 | φ260-φ180 using wire rod of φ3.8 | 150*2.5 | |||
| φ300 | 129.6*2.5 | ||||
| φ400 | 280*2 | ||||
| φ615 | Pendant chain device | Hung huang, pendant chain | |||
| Cap | 180 | upper cap lower cap | |||
| 200 | |||||
| 230 | Venturi tube | Carbon steel | |||
| 250 | Aluminum | ||||
| 292 | Stainless steel | ||||
| 300 | Unifying covering cap and venturi tube(integration) | ||||
| Filter cage | Material: hard-drawn wire | Galvanization treatment | Normal | Yellow | |
| White zinc plated treatment | High quality | Light silver | |||
| Organic silicon treatment | Black | ||||
| Material: stainless steel | 201-316L | ||||
| Any special requirement and production can be processed according to buyer’s sample(with | |||||
Why choose us?
1. Factory Experience: We are an experienced manufacturer with complete production lines and professional production equipment.
2. Quality assurance: We always strictly implement the quality management system, run through every detail of production, and be responsible for the products required by customers.
3. One-stop purchasing: We provide one-stop purchasing of filtration products to meet the different needs of global customers.
4. Other advantages: We respond quickly within 12 hours, provide efficient and high-quality services and competitive prices.
Filter Bag Cage Production Process:
Our factory:
Our Certificate:
More details, pls feel free to contact us, Thanks
