2m Long Dust Collector Filter Cage With Venturi
Silicone Powdered Black Round 2m Long Dust Collector Filter Cage With Venturi
The function of filter bag cage:

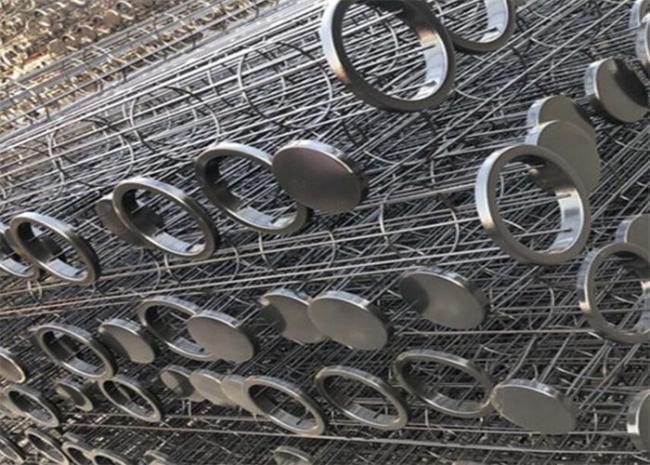

The Dust Collector Filter Cage is the rib of the filter bag. It should be light and easy to install and maintain. The quality of the dust removal frame directly affects the filter state and service life of the filter bag. The frame manufacturing equipment introduced by our company uses a high-frequency welding machine to weld the frame at one time. Use iron wire or stainless steel wire with sufficient strength and rigidity. Galvanized, sprayed, plated with silicone and other treatment methods, the skeleton of the dust removal accessories has the characteristics of low cost, convenient installation, light weight, and reduces the price of the equipment. It is an ideal dust removal accessory for users.
The cage of the organic silicon Dust Collector Filter Cage is a dust skeleton formed by one-time welding of carbon steel by a multi-head high-frequency automatic spot welding machine and subjected to post-processing of organic silicon.
The cage of the silicone dust collector is treated with silicone technology, which can replace the stainless steel frame, which can greatly reduce the maintenance cost of the equipment, and each frame manufactured can meet the requirements of lightness, smoothness and straightness.
The use temperature of the framework of the silicone dust collector can be used in the industrial and mining environment of about 280 ° C, and the instantaneous use temperature can reach 300 ° C. In some specific environments, it can replace the stainless steel dust removal skeleton to reduce the manufacturing cost of the enterprise. The production process of the skeleton of the silicone dust collector is the same as that of the plastic sprayed dust removal skeleton, except that the temperature and time of the drying process are higher than that of the plastic sprayed dust removal skeleton, and the powder sprayed on the surface of the dust collector skeleton is organic silicon powder.
| Goods Name | Standard | Description | Goods Name | Standard | Description |
| Clamps | φ180 | Spring curb | 120*2 | Normal quenching steel belt | |
| φ230 | 130*2 | ||||
| φ250 | 150*2 | ||||
| φ260 | 200*2 | ||||
| φ292 | 292*2 | ||||
| φ300 | 300*2 | ||||
| Hoop | φ160 | φ300-φ270 using wire rod ofφ4.2 | 120*2.5 | ||
| φ170 | 130*2.5 | ||||
| φ180 | 150*2.5 | ||||
| φ200 | 182*2.5 | ||||
| φ210 | 202*1.3 | Quenching stainless steel belt | |||
| φ250 | φ180 using wire rod of φ3.3 | 127*1.5 | |||
| φ260 | 127*1.9 | If it is highly corrosive, we can use titanium curb | |||
| φ280 | 130*2.5 | ||||
| φ292 | φ260-φ180 using wire rod of φ3.8 | 150*2.5 | |||
| φ300 | 129.6*2.5 | ||||
| φ400 | 280*2 | ||||
| φ615 | Pendant chain device | Hung huang, pendant chain | |||
| Cap | 180 | upper cap lower cap | |||
| 200 | |||||
| 230 | Venturi tube | Carbon steel | |||
| 250 | Aluminum | ||||
| 292 | Stainless steel | ||||
| 300 | Unifying covering cap and venturi tube(integration) | ||||
| Filter cage | Material: hard-drawn wire | Galvanization treatment | Normal | Yellow | |
| White zinc plated treatment | High quality | Light silver | |||
| Organic silicon treatment | Black | ||||
| Material: stainless steel | 201-316L | ||||
| Any special requirement and production can be processed according to buyer’s sample(with | |||||
