Dia 100mm-200mm Filter Cages For Pulse Jet Bag Filter Kiln Head Dedusting
Easy To Install Stainless Steel Filter Cage With Venturi For Pulse Jet Bag Filter Kiln Head Dedusting
The function of Stainless Steel Filter Cage:
Stainless steel filter cage, also known as dust bag cage, is an indispensable accessory of bag filter. It is used as a frame to support dust filter bags. It can be compatible with six, eight, ten, twelve, sixteen, eighteen , Twenty, twenty-four ribs, the role of the dust removal skeleton is very large, and it is widely used in the dust removal industry and the chemical industry and other industrial places.
Shape: 1. (outer filter bag); 2. (outer filter type); 3. (outer filter type) (oval, diamond); 4. envelope type; 5. multi-section frame (oval multi-section frame. Round bag type multi-section frame (insert type, chuck type)); 6. Finished frame (frame with venturi. Frame packed in plastic bag and iron frame. Neatly arranged diamond frame)
Cloth stainless steel filter cage should have the following characteristics:
1. Lightweight, smooth, straight and strong;
2. There is no welding flash or burr at the welding place;
3. Corrosion resistance and high temperature resistance;
4. Easy to install and maintain;
5. Long service life.
Specifications
| Types: | Round Style/Flat Style/Envelope Style/ Special Style | ||
| Number Of Wires: | 8/10/12/16/20/24 vertical wires(usually) | ||
| Ring Space: | Ring spacing standard is 6 inch or 8 inch.(15.24cm or 20.32cm) | ||
| Cage Diameter: | Cage diameters range from 4 inch to 8 inch (100mm to 200mm) | ||
| Wire thickness: | Wire thickness ranges are 2mm to 5mm | ||
| Material: | Carbon Stee, Galvanized Steel, Stainless Steel | ||
| Finishment: | Epoxy, PVC vinyl coating | ||
| Packaging: | Cages are packed in custom designed cartons | ||
| Usage: | Dust from factory of mine, wood,Cement, chemical, medicine, dying,Paint, plastic, food & other industry,such as coal fired power stations, Steel Power station, Cement industry, Paper industry & other Industrial Segments. | ||
| Advantages: | 1.no corrosion 2.no damage 3.3-5 times longer life than other bag Cage with steel | ||
| 4. economical maintenance(almost no Maintenance required) | |||
| 5.prominent effect in removing dust from Filter by pulsing 6.easy to install | |||
| 7.no ventury installation required | |||
Standard Technical Data
| Round Style | Diameter(mm) | Bag Diameter(mm) | Length(mm) |
| 115 | 120 | 2000,2400 2800, | |
| 3200,3600,4000, | |||
| 125 | 130 | 4400,4800,5200, | |
| 147 | 152 | 560,060,007,000 | |
| 195 | 200 | ||
| Flat Style | Perimeter | Bag Perimeter | Length(mm) |
| 800 | 800 | 2000 3000 4000 | |
| 5000 6000 | |||
| 900 | 900 | ||
| Envelope Style | Length Width Thickness | Bag Length Width Thickness | |
| 1500X750x25mm | 1500X750x25mm | ||
Why choose us?
1. Factory Experience: We are an experienced manufacturer with complete production lines and professional production equipment.
2. Quality assurance: We always strictly implement the quality management system, run through every detail of production, and be responsible for the products required by customers.
3. One-stop purchasing: We provide one-stop purchasing of filtration products to meet the different needs of global customers.
4. Other advantages: We respond quickly within 12 hours, provide efficient and high-quality services and competitive prices.
Filter Bag Cage Production Process:

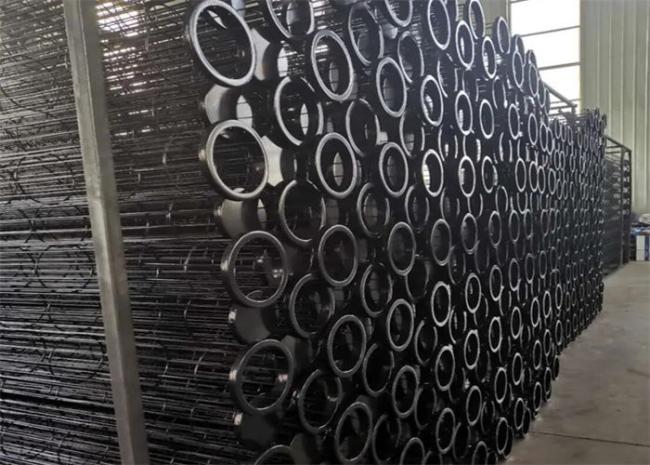

Our factory:
Our Certificate:
More details, pls feel free to contact us, Thanks
