Coated One Piece SS304 SS316 Filter Bag Cages And Venturi For Lumber Mill
Coated one piece round stainless steel filter cage with venturi for lumber mill
The function of Stainless Steel Filter Cage:
The surface of the stainless steel filter cage in contact with the dust filter bag is smooth and bright, without welding marks and burrs. The tension spring frame has the required number of turns and elasticity, and the spacing is even after being laid out. The surface of the filter bag frame is etched and electroplated according to different needs. Sprayed or painted, if used at high temperatures, its corrosion resistance is adequate for the application temperature.
The round stainless steel filter cage is generally formed at one time by the production equipment. The dust removal skeleton made in this way is welded, and the surface is smooth and straight. The transportation and production of the dust removal skeleton should meet the production standards required by the Ministry of Machinery Industry. The main production requirements for the dust collector frame are that it should have sufficient strength, rigidity, verticality and dimensional accuracy, which can prevent the dust removal accessories from being deformed and damaged. It is required that all solder joints of the dust removal skeleton should not have desoldering, missing soldering, or virtual welding. The surface of the skeleton in contact with the dust removal bag should be smooth, and there should be no welding scars and burrs.
Specifications
| Types: | Round Style/Flat Style/Envelope Style/ Special Style | ||
| Number Of Wires: | 8/10/12/16/20/24 vertical wires(usually) | ||
| Ring Space: | Ring spacing standard is 6 inch or 8 inch.(15.24cm or 20.32cm) | ||
| Cage Diameter: | Cage diameters range from 4 inch to 8 inch (100mm to 200mm) | ||
| Wire thickness: | Wire thickness ranges are 2mm to 5mm | ||
| Material: | Carbon Stee, Galvanized Steel, Stainless Steel | ||
| Finishment: | Epoxy, PVC vinyl coating | ||
| Packaging: | Cages are packed in custom designed cartons | ||
| Usage: | Dust from factory of mine, wood,Cement, chemical, medicine, dying,Paint, plastic, food & other industry,such as coal fired power stations, Steel Power station, Cement industry, Paper industry & other Industrial Segments. | ||
| Advantages: | 1.no corrosion 2.no damage 3.3-5 times longer life than other bag Cage with steel | ||
| 4. economical maintenance(almost no Maintenance required) | |||
| 5.prominent effect in removing dust from Filter by pulsing 6.easy to install | |||
| 7.no ventury installation required | |||
Standard Technical Data
| Round Style | Diameter(mm) | Bag Diameter(mm) | Length(mm) |
| 115 | 120 | 2000,2400 2800, | |
| 3200,3600,4000, | |||
| 125 | 130 | 4400,4800,5200, | |
| 147 | 152 | 560,060,007,000 | |
| 195 | 200 | ||
| Flat Style | Perimeter | Bag Perimeter | Length(mm) |
| 800 | 800 | 2000 3000 4000 | |
| 5000 6000 | |||
| 900 | 900 | ||
| Envelope Style | Length Width Thickness | Bag Length Width Thickness | |
| 1500X750x25mm | 1500X750x25mm | ||
Why choose us?
1. Factory Experience: We are an experienced manufacturer with complete production lines and professional production equipment.
2. Quality assurance: We always strictly implement the quality management system, run through every detail of production, and be responsible for the products required by customers.
3. One-stop purchasing: We provide one-stop purchasing of filtration products to meet the different needs of global customers.
4. Other advantages: We respond quickly within 12 hours, provide efficient and high-quality services and competitive prices.
Filter Bag Cage Production Process:

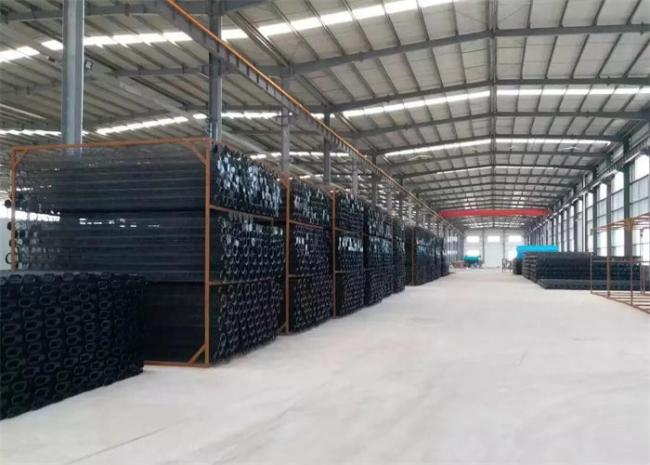

Our factory:
Our Certificate:
More details, pls feel free to contact us, Thanks
