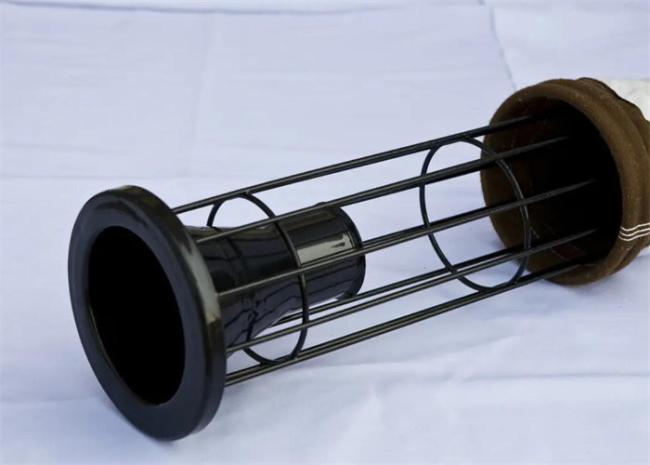

Epoxy Coated Stainless Steel Filter Cage Non Corrosion Multi Section
Epoxy-coated stainless steel filter cage features high temperature and corrosion resistance
The function of Stainless Steel Filter Cage:
The stainless steel filter cage is the rib of the filter bag. It should be light and easy to install and maintain. The quality of the dust removal frame directly affects the filter state and service life of the filter bag. The frame manufacturing equipment introduced by our company uses a high-frequency welding machine to weld the frame at one time. Use iron wire or stainless steel wire with sufficient strength and rigidity. Galvanized, sprayed, plated with silicone and other treatment methods, the skeleton of the dust removal accessories has the characteristics of low cost, convenient installation, light weight, and reduces the price of the equipment. It is an ideal dust removal accessory for users.
Stainless steel filter cage structure: multi-section, venturi, protection short tube, drop-down type, plug-in type, chuck type and other reasonable structures. Dust collector frame specifications: round, oval, flat, envelope, and other shapes can be customized according to customer requirements. Among them, circles are used more.
Welding technical requirements of stainless steel filter cage: The dust removal skeleton should have sufficient strength, rigidity, verticality and dimensional accuracy to prevent deformation under pressure, damage during transportation, and prevent the bag skeleton from contacting each other after being loaded into the dust collector and bagging difficulties, The occurrence of bag frame friction, etc.
Specifications
| Types: | Round Style/Flat Style/Envelope Style/ Special Style | ||
| Number Of Wires: | 8/10/12/16/20/24 vertical wires(usually) | ||
| Ring Space: | Ring spacing standard is 6 inch or 8 inch.(15.24cm or 20.32cm) | ||
| Cage Diameter: | Cage diameters range from 4 inch to 8 inch (100mm to 200mm) | ||
| Wire thickness: | Wire thickness ranges are 2mm to 5mm | ||
| Material: | Carbon Stee, Galvanized Steel, Stainless Steel | ||
| Finishment: | Epoxy, PVC vinyl coating | ||
| Packaging: | Cages are packed in custom designed cartons | ||
| Usage: | Dust from factory of mine, wood,Cement, chemical, medicine, dying,Paint, plastic, food & other industry,such as coal fired power stations, Steel Power station, Cement industry, Paper industry & other Industrial Segments. | ||
| Advantages: | 1.no corrosion 2.no damage 3.3-5 times longer life than other bag Cage with steel | ||
| 4. economical maintenance(almost no Maintenance required) | |||
| 5.prominent effect in removing dust from Filter by pulsing 6.easy to install | |||
| 7.no ventury installation required | |||
Standard Technical Data
| Round Style | Diameter(mm) | Bag Diameter(mm) | Length(mm) |
| 115 | 120 | 2000,2400 2800, | |
| 3200,3600,4000, | |||
| 125 | 130 | 4400,4800,5200, | |
| 147 | 152 | 560,060,007,000 | |
| 195 | 200 | ||
| Flat Style | Perimeter | Bag Perimeter | Length(mm) |
| 800 | 800 | 2000 3000 4000 | |
| 5000 6000 | |||
| 900 | 900 | ||
| Envelope Style | Length Width Thickness | Bag Length Width Thickness | |
| 1500X750x25mm | 1500X750x25mm | ||
Why choose us?
1. Factory Experience: We are an experienced manufacturer with complete production lines and professional production equipment.
2. Quality assurance: We always strictly implement the quality management system, run through every detail of production, and be responsible for the products required by customers.
3. One-stop purchasing: We provide one-stop purchasing of filtration products to meet the different needs of global customers.
4. Other advantages: We respond quickly within 12 hours, provide efficient and high-quality services and competitive prices.
Filter Bag Cage Production Process:
Our factory:
Our Certificate:
More details, pls feel free to contact us, Thanks
