Burr Free Galvanized Aluminum Series Silicone Bag Cage For Chemical Industry
Multi-Section Smooth, Burr-Free, Corrosion-Resistant, Galvanized Aluminum Baghouse Filter Cages
The function of aghouse Filter Cages:
Baghouse Filter Cages are produced from iron or stainless steel wire with sufficient strength and rigidity. Stainless steel frame The frame treated with silicone technology can replace the stainless steel frame. The maintenance cost of the equipment can be greatly reduced.
Baghouse Filter Cages Application: Widely used in dust removal equipment in metallurgy, building materials, power generation, chemical industry, food, waste incinerator and other industries.
Baghouse Filter Cages production standard
1. Baghouse Filter Cages requires that the support rings and longitudinal ribs are evenly distributed, and should have sufficient strength and rigidity to withstand the gas pressure of the dust filter bag in the state of filtration and cleaning, and to prevent collisions during normal transportation and installation. and impact damage and deformation.
2. The surface of Baghouse Filter Cages in contact with the dust filter bag should be smooth and clean, and no welding scars, unevenness and burrs are allowed.
3. The surface of Baghouse Filter Cages must be etched, galvanized, sprayed or painted according to different needs. If it is used for high temperature, its corrosion should meet the requirements of operating temperature.
Specifications
| Types: | Round Style/Flat Style/Envelope Style/ Special Style | ||
| Number Of Wires: | 8/10/12/16/20/24 vertical wires(usually) | ||
| Ring Space: | Ring spacing standard is 6 inch or 8 inch.(15.24cm or 20.32cm) | ||
| Cage Diameter: | Cage diameters range from 4 inch to 8 inch (100mm to 200mm) | ||
| Wire thickness: | Wire thickness ranges are 2mm to 5mm | ||
| Material: | Carbon Stee, Galvanized Steel, Stainless Steel | ||
| Finishment: | Epoxy, PVC vinyl coating | ||
| Packaging: | Cages are packed in custom designed cartons | ||
| Usage: | Dust from factory of mine, wood,Cement, chemical, medicine, dying,Paint, plastic, food & other industry,such as coal fired power stations, Steel Power station, Cement industry, Paper industry & other Industrial Segments. | ||
| Advantages: | 1.no corrosion 2.no damage 3.3-5 times longer life than other bag Cage with steel | ||
| 4. economical maintenance(almost no Maintenance required) | |||
| 5.prominent effect in removing dust from Filter by pulsing 6.easy to install | |||
| 7.no ventury installation required | |||
Standard Technical Data
| Round Style | Diameter(mm) | Bag Diameter(mm) | Length(mm) |
| 115 | 120 | 2000,2400 2800, | |
| 3200,3600,4000, | |||
| 125 | 130 | 4400,4800,5200, | |
| 147 | 152 | 560,060,007,000 | |
| 195 | 200 | ||
| Flat Style | Perimeter | Bag Perimeter | Length(mm) |
| 800 | 800 | 2000 3000 4000 | |
| 5000 6000 | |||
| 900 | 900 | ||
| Envelope Style | Length Width Thickness | Bag Length Width Thickness | |
| 1500X750x25mm | 1500X750x25mm | ||
Why choose us?
1. Factory Experience: We are an experienced manufacturer with complete production lines and professional production equipment.
2. Quality assurance: We always strictly implement the quality management system, run through every detail of production, and be responsible for the products required by customers.
3. One-stop purchasing: We provide one-stop purchasing of filtration products to meet the different needs of global customers.
4. Other advantages: We respond quickly within 12 hours, provide efficient and high-quality services and competitive prices.

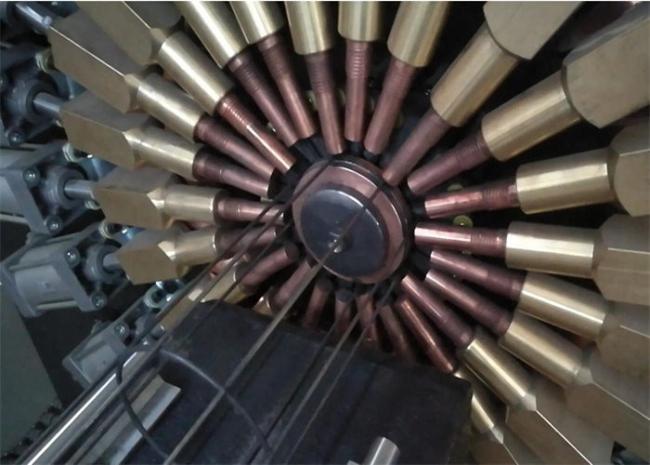

Filter Bag Cage Production Process:
Our factory:
Our Certificate:
More details, pls feel free to contact us, Thanks
