22 wires 155mm Industrial Filter Cages

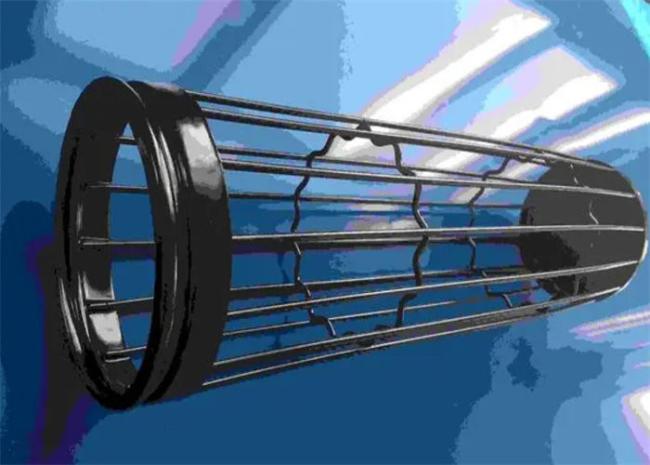

Industrial Filter Cage For Baghouse Dust Collector Industrial Dust Collector 22 Lines 155mm 1m
The function of Industrial Filter Cage:
Industrial Filter Cage is the rib of the dust filter bag. The quality of the skeleton directly affects the working state and service life of the filter bag. The post-treatment of the skeleton produced by our factory is galvanized or sprayed on the surface. The surface is plated with other coatings. The skeleton is one of the commonly used dust removal skeletons, which is flexible. Because the dust collector is limited by the indoor space, there is no space on the top of the dust collector to replace the dust bag cage, so a spring skeleton or (plug-in) multi-section type is used in the design. skeleton.
Process: The main problem is focused on welding.
1. Desoldering causes looseness.
2. Burrs scratch the filter bag. When selecting the dust removal frame, the filter bag filter frame should have sufficient strength, rigidity, verticality and dimensional accuracy to prevent deformation under pressure, damage during transportation, contact with each other after the filter bag is loaded into the filter, and difficulty in bagging, bagging The occurrence of frame friction, etc.; all the welding points of the dust collector frame are firm, and no desoldering, virtual welding and missing welding are allowed; the surface of the dust collector frame contacting the dust filter bag should be smooth, and no uneven welding scars and burrs are allowed. .
3. Ribs: The vertical ribs of the dust removal framework generally use 20-24 high temperature resistant carbon steels, each rib is Φ3.2 mm thick, the inner ring of the cage is made of Φ4 mm thick high temperature resistant carbon steel bars, one from the bottom of the cage upwards. There should be a distance of 50 mm between the cage ring and the bottom of the cage, the distance between the root cage ring and one cage ring should be less than 155 mm, and so on, a cage ring should keep a distance of 50 mm from the top flange bottom of the cage.
In addition, the processing quality requirements of the dust removal skeleton are also very important. Special ring making and processing spot welding equipment should be used to minimize burrs and maintain verticality during processing.
Specifications
| Types: | Round Style/Flat Style/Envelope Style/ Special Style | ||
| Number Of Wires: | 8/10/12/16/20/24 vertical wires(usually) | ||
| Ring Space: | Ring spacing standard is 6 inch or 8 inch.(15.24cm or 20.32cm) | ||
| Cage Diameter: | Cage diameters range from 4 inch to 8 inch (100mm to 200mm) | ||
| Wire thickness: | Wire thickness ranges are 2mm to 5mm | ||
| Material: | Carbon Stee, Galvanized Steel, Stainless Steel | ||
| Finishment: | Epoxy, PVC vinyl coating | ||
| Packaging: | Cages are packed in custom designed cartons | ||
| Usage: | Dust from factory of mine, wood,Cement, chemical, medicine, dying,Paint, plastic, food & other industry,such as coal fired power stations, Steel Power station, Cement industry, Paper industry & other Industrial Segments. | ||
| Advantages: | 1.no corrosion 2.no damage 3.3-5 times longer life than other bag Cage with steel | ||
| 4. economical maintenance(almost no Maintenance required) | |||
| 5.prominent effect in removing dust from Filter by pulsing 6.easy to install | |||
| 7.no ventury installation required | |||
Standard Technical Data
| Round Style | Diameter(mm) | Bag Diameter(mm) | Length(mm) |
| 115 | 120 | 2000,2400 2800, | |
| 3200,3600,4000, | |||
| 125 | 130 | 4400,4800,5200, | |
| 147 | 152 | 560,060,007,000 | |
| 195 | 200 | ||
| Flat Style | Perimeter | Bag Perimeter | Length(mm) |
| 800 | 800 | 2000 3000 4000 | |
| 5000 6000 | |||
| 900 | 900 | ||
| Envelope Style | Length Width Thickness | Bag Length Width Thickness | |
| 1500X750x25mm | 1500X750x25mm | ||
