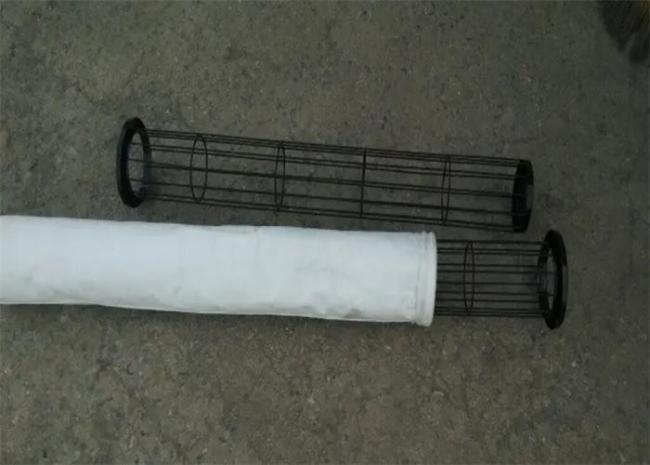

Silver 12 Vertical Wires Industrial Filter Cages With Venturi Tube
Industrial Filter Cage Power Plant Stainless Steel Corrosion Resistant Filter Bag Cage With Venturi Tube
The function of Industrial Filter Cage:
Industrial Filter Cage, also known as dust cage cage, is formed by one-time welding using special Taiwan cage cage production line equipment. The dust removal cage is the rib of the filter bag. The quality of the dust cage cage directly affects the working state and service life of the filter bag.
Dust bag cage raw materials: high-quality cold-drawn steel wire, stainless steel wire, etc.
Dust bag cage structure: multi-section, venturi, protection short pipe and other reasonable structures.
Dust bag cage, dust cage bone surface treatment: spraying, anti-corrosion treatment, surface silicone spraying, etc.
Influence factors of Industrial Filter Cage:
(1) Influence of the size of the dust removal frame: Among the geometric dimensions of the dust removal frame, the diameter of the dust removal frame, the gas and the shape and size of the exhaust pipe are the important influencing factors.
(2) The influence of gas parameters on the performance of the dust removal framework: including the influence of gas flow, the influence of gas dust concentration, the influence of gas moisture content, the influence of gas density, viscosity, pressure, temperature, etc.
(3) The influence of the physical properties of dust on the dust removal framework.
(4) Influence of the roughness of the inner wall of the dust removal skeleton: The dust particles concentrated near the wall surface will cause swirl flow due to the rough surface, so that some dust particles are thrown into the rising airflow and enter the exhaust pipe, reducing the dust removal efficiency.
Specifications
| Types: | Round Style/Flat Style/Envelope Style/ Special Style | ||
| Number Of Wires: | 8/10/12/16/20/24 vertical wires(usually) | ||
| Ring Space: | Ring spacing standard is 6 inch or 8 inch.(15.24cm or 20.32cm) | ||
| Cage Diameter: | Cage diameters range from 4 inch to 8 inch (100mm to 200mm) | ||
| Wire thickness: | Wire thickness ranges are 2mm to 5mm | ||
| Material: | Carbon Stee, Galvanized Steel, Stainless Steel | ||
| Finishment: | Epoxy, PVC vinyl coating | ||
| Packaging: | Cages are packed in custom designed cartons | ||
| Usage: | Dust from factory of mine, wood,Cement, chemical, medicine, dying,Paint, plastic, food & other industry,such as coal fired power stations, Steel Power station, Cement industry, Paper industry & other Industrial Segments. | ||
| Advantages: | 1.no corrosion 2.no damage 3.3-5 times longer life than other bag Cage with steel | ||
| 4. economical maintenance(almost no Maintenance required) | |||
| 5.prominent effect in removing dust from Filter by pulsing 6.easy to install | |||
| 7.no ventury installation required | |||
Standard Technical Data
| Round Style | Diameter(mm) | Bag Diameter(mm) | Length(mm) |
| 115 | 120 | 2000,2400 2800, | |
| 3200,3600,4000, | |||
| 125 | 130 | 4400,4800,5200, | |
| 147 | 152 | 560,060,007,000 | |
| 195 | 200 | ||
| Flat Style | Perimeter | Bag Perimeter | Length(mm) |
| 800 | 800 | 2000 3000 4000 | |
| 5000 6000 | |||
| 900 | 900 | ||
| Envelope Style | Length Width Thickness | Bag Length Width Thickness | |
| 1500X750x25mm | 1500X750x25mm | ||
Why choose us?
1. Factory Experience: We are an experienced manufacturer with complete production lines and professional production equipment.
2. Quality assurance: We always strictly implement the quality management system, run through every detail of production, and be responsible for the products required by customers.
3. One-stop purchasing: We provide one-stop purchasing of filtration products to meet the different needs of global customers.
4. Other advantages: We respond quickly within 12 hours, provide efficient and high-quality services and competitive prices.
Filter Bag Cage Production Process:
There are 19 working produres. Every product from Sinft had undergone detailed perfection.
Scientific surface treatment like heat setting, dipping, singeing, calendering and coating can signigicantly prevent the
fabric from shrinking,remove surface batting, imrove filtration effectiveness and increase heat resistant.
Our factory:
Package:
The dust filter bags are packed in PP woven bags or according to your requirements.
Company Introduction:
Hebei Sinft filter Co.,Ltd is a high-tech enterprise group integrating R&D, production and sales of dust
collector filter bags and filter cages. We are founded in 2007 and located in Shijiazhuang.
We own the most advanced complete sets of production equipment, the high-speed acupuncture production
lines, heat-setting and high temperature after-treatmentunits, laminating units, sewing equipment, and hanging
production lines.
Daily production capacity of filter bag is more than 7000 pcs, the scale of production and equipment are at the
forefront of the industry.
Sinft Team:
We often attend international and domestic exhibitions. The company will organize team building
activities regularly. We are not only colleagues, but also family members.
Sinft Certificate:
We have ISO 9001 Certifications. Our products are used in many places at home and abroad, such as
power plants in North America, cement plants in Europe which all Won high praise.
More details, pls feel free to contact us, Thanks
