ISO9001 Anticorrosive Industrial Filter Cages For Cement Mine Iron Industry

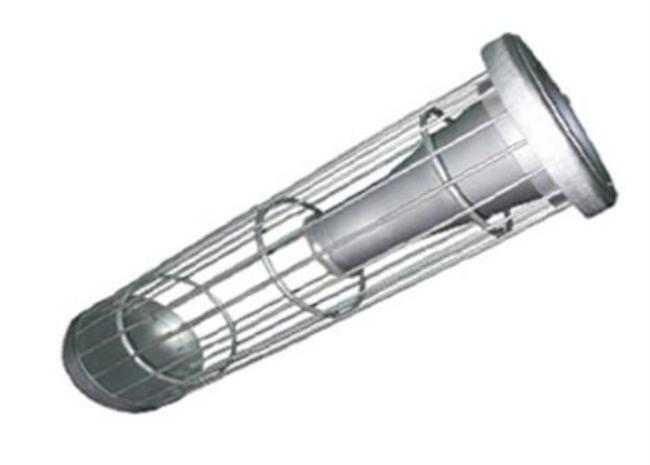

Multi-section Industrial Filter Cage with Venturi for Cement Mine Iron Food Pharmaceutical Chemical Industry
The function of Industrial Filter Cage:
Galvanized Industrial Filter Cage (galvanized bag cage, galvanized frame) is the main component in dust removal equipment. Galvanized frame has good use characteristics and advantages in dust removal work. Galvanized bag cage has good dust removal effect. The Industrial Filter Cage can be discharged either automatically or manually, but is discharged in a defined order. This galvanized Industrial Filter Cage (galvanized bag cage, galvanized frame) usually does not discharge dust for 1 day to several days in the early stage of operation until the dust holding capacity of the dust collector is reached, and then discharges in sequence. The galvanized frame (galvanized bag cage, galvanized frame) is the "rib" of the filter bag. This galvanized frame should be light and easy to install and maintain. The quality of the galvanized frame directly affects the filter state and service life of the filter bag.
The major feature of the venturi is that it can realize the conveying of powder by air flow. It mainly uses its jet suction effect, such as vacuum cleaners, powder conveying, coolers, flow meters, dryers and so on. The same is true for the injection pump in the chemical industry, so the material mainly depends on the application site, there are various kinds of iron, aluminum alloy, and plastic nylon. The lift of an airplane also comes from the effect of the venturi. Air moves faster on the upper surface of the wing than on the lower surface, creating lift. The iron venturi is generally used on the dust removal frame and the filter cartridge. It is generally formed by one-time drawing of a 1 mm thick steel plate. Lifetime iron venturi.
The welding process of the dust removal frame with venturi can be completed at one time when welding small components, that is, after welding and fixing the position, the assembly is completed with a suitable welding sequence. The assembly and welding of large-scale steel structures requires the welding of small groups first, and then the subsequent assembly and welding. When assembling parts, in order to prevent excessive stress and deformation during the assembly process, different types of spare parts should be made to meet the requirements of the specifications, shape and size of the components and the requirements of the model, and there should be no large external force during assembly. Prevents deformation of components caused by excessive welding stress and large binding forces.
Specifications
| Types: | Round Style/Flat Style/Envelope Style/ Special Style | ||
| Number Of Wires: | 8/10/12/16/20/24 vertical wires(usually) | ||
| Ring Space: | Ring spacing standard is 6 inch or 8 inch.(15.24cm or 20.32cm) | ||
| Cage Diameter: | Cage diameters range from 4 inch to 8 inch (100mm to 200mm) | ||
| Wire thickness: | Wire thickness ranges are 2mm to 5mm | ||
| Material: | Carbon Stee, Galvanized Steel, Stainless Steel | ||
| Finishment: | Epoxy, PVC vinyl coating | ||
| Packaging: | Cages are packed in custom designed cartons | ||
| Usage: | Dust from factory of mine, wood,Cement, chemical, medicine, dying,Paint, plastic, food & other industry,such as coal fired power stations, Steel Power station, Cement industry, Paper industry & other Industrial Segments. | ||
| Advantages: | 1.no corrosion 2.no damage 3.3-5 times longer life than other bag Cage with steel | ||
| 4. economical maintenance(almost no Maintenance required) | |||
| 5.prominent effect in removing dust from Filter by pulsing 6.easy to install | |||
| 7.no ventury installation required | |||
Standard Technical Data
| Round Style | Diameter(mm) | Bag Diameter(mm) | Length(mm) |
| 115 | 120 | 2000,2400 2800, | |
| 3200,3600,4000, | |||
| 125 | 130 | 4400,4800,5200, | |
| 147 | 152 | 560,060,007,000 | |
| 195 | 200 | ||
| Flat Style | Perimeter | Bag Perimeter | Length(mm) |
| 800 | 800 | 2000 3000 4000 | |
| 5000 6000 | |||
| 900 | 900 | ||
| Envelope Style | Length Width Thickness | Bag Length Width Thickness | |
| 1500X750x25mm | 1500X750x25mm | ||
Why choose us?
1. Factory Experience: We are an experienced manufacturer with complete production lines and professional production equipment.
2. Quality assurance: We always strictly implement the quality management system, run through every detail of production, and be responsible for the products required by customers.
3. One-stop purchasing: We provide one-stop purchasing of filtration products to meet the different needs of global customers.
4. Other advantages: We respond quickly within 12 hours, provide efficient and high-quality services and competitive prices.
Filter Bag Cage Production Process:
There are 19 working produres. Every product from Sinft had undergone detailed perfection.
Scientific surface treatment like heat setting, dipping, singeing, calendering and coating can signigicantly prevent the
fabric from shrinking,remove surface batting, imrove filtration effectiveness and increase heat resistant.
Our factory:
Package:
The dust filter bags are packed in PP woven bags or according to your requirements.
Company Introduction:
Hebei Sinft filter Co.,Ltd is a high-tech enterprise group integrating R&D, production and sales of dust
collector filter bags and filter cages. We are founded in 2007 and located in Shijiazhuang.
We own the most advanced complete sets of production equipment, the high-speed acupuncture production
lines, heat-setting and high temperature after-treatmentunits, laminating units, sewing equipment, and hanging
production lines.
Daily production capacity of filter bag is more than 7000 pcs, the scale of production and equipment are at the
forefront of the industry.
Sinft Team:
We often attend international and domestic exhibitions. The company will organize team building
activities regularly. We are not only colleagues, but also family members.
Sinft Certificate:
We have ISO 9001 Certifications. Our products are used in many places at home and abroad, such as
power plants in North America, cement plants in Europe which all Won high praise.
More details, pls feel free to contact us, Thanks
Our Certificate:
More details, pls feel free to contact us, Thanks
