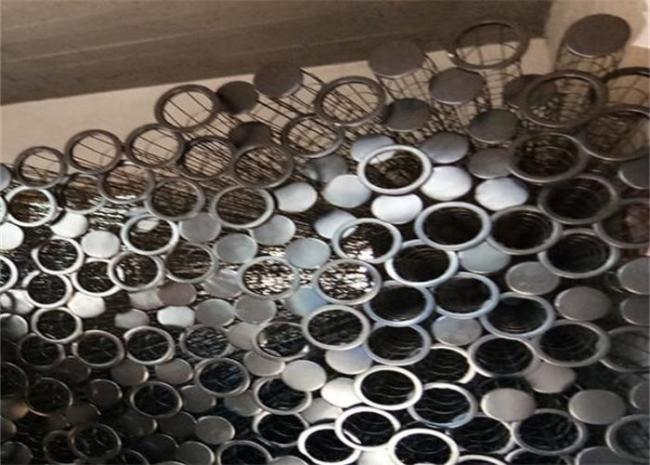

Stainless Steel Baghouse Filter Cages Products 5-12m High Temp Resistant
Baghouse Filter Cages Pulse Bag stainless steel material resistant to high temperature and corrosion
The function of aghouse Filter Cages:
Baghouse Filter Cages are the rib of the filter bag. The quality clock of Baghouse Filter Cages affects the working state and service life of the filter bag. Commonly used are round mouth, multi-joint, star and spring frame dust removal frame, also known as dust bag cage, which is an important accessory of bag filter. The raw materials are high-quality low carbon steel wire, galvanized steel wire, stainless steel wire and so on. The dust removal skeleton is used in different occasions according to its different forms.
Factors affecting the performance of the dust collector skeleton
(1) Influence of the size of the dust collector skeleton: In the geometric size of the dust removal skeleton, the diameter of the dust removal skeleton, the gas inlet and the shape and size of the exhaust pipe are important influencing factors.
(2) The influence of gas parameters on the performance of the dust collector skeleton: including the influence of gas flow, the influence of gas dust concentration, the influence of gas moisture content, the influence of gas density, viscosity, pressure, temperature, etc.
(3) The influence of the physical properties of the dust on the framework of the dust collector
(4) The influence of the roughness of the inner wall of the dust collector frame: the dust particles concentrated near the wall will cause a swirling flow due to the rough surface, so that some dust particles will be thrown into the rising airflow and enter the exhaust pipe, reducing the dust removal efficiency.
Specifications
| Types: | Round Style/Flat Style/Envelope Style/ Special Style | ||
| Number Of Wires: | 8/10/12/16/20/24 vertical wires(usually) | ||
| Ring Space: | Ring spacing standard is 6 inch or 8 inch.(15.24cm or 20.32cm) | ||
| Cage Diameter: | Cage diameters range from 4 inch to 8 inch (100mm to 200mm) | ||
| Wire thickness: | Wire thickness ranges are 2mm to 5mm | ||
| Material: | Carbon Stee, Galvanized Steel, Stainless Steel | ||
| Finishment: | Epoxy, PVC vinyl coating | ||
| Packaging: | Cages are packed in custom designed cartons | ||
| Usage: | Dust from factory of mine, wood,Cement, chemical, medicine, dying,Paint, plastic, food & other industry,such as coal fired power stations, Steel Power station, Cement industry, Paper industry & other Industrial Segments. | ||
| Advantages: | 1.no corrosion 2.no damage 3.3-5 times longer life than other bag Cage with steel | ||
| 4. economical maintenance(almost no Maintenance required) | |||
| 5.prominent effect in removing dust from Filter by pulsing 6.easy to install | |||
| 7.no ventury installation required | |||
Standard Technical Data
| Round Style | Diameter(mm) | Bag Diameter(mm) | Length(mm) |
| 115 | 120 | 2000,2400 2800, | |
| 3200,3600,4000, | |||
| 125 | 130 | 4400,4800,5200, | |
| 147 | 152 | 560,060,007,000 | |
| 195 | 200 | ||
| Flat Style | Perimeter | Bag Perimeter | Length(mm) |
| 800 | 800 | 2000 3000 4000 | |
| 5000 6000 | |||
| 900 | 900 | ||
| Envelope Style | Length Width Thickness | Bag Length Width Thickness | |
| 1500X750x25mm | 1500X750x25mm | ||
Why choose us?
1. Factory Experience: We are an experienced manufacturer with complete production lines and professional production equipment.
2. Quality assurance: We always strictly implement the quality management system, run through every detail of production, and be responsible for the products required by customers.
3. One-stop purchasing: We provide one-stop purchasing of filtration products to meet the different needs of global customers.
4. Other advantages: We respond quickly within 12 hours, provide efficient and high-quality services and competitive prices.
Filter Bag Cage Production Process:
Our factory:
Our Certificate:
More details, pls feel free to contact us, Thanks
