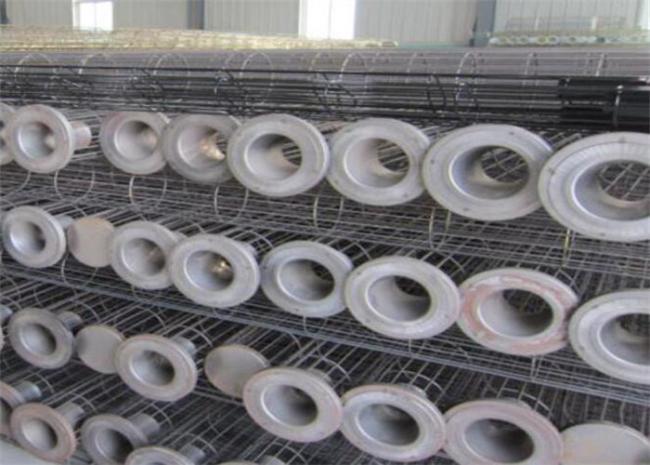

Customizable Galvanized Steel Filter Bag Cages Corrosion Resistant
Stainless Steel Dust Collector Filter Bag Cage Used For Pulse-Jet Bag Filters
We understands properly fitting cages are a must for optimum filter bag performance and long life. Filter bags must fit snugly around the cage to prevent wear on the bags, but must also be flexible enough to remove for cleaning. We provides filter cages available to fit most baghouse applications and offers a selection of circular, oval or flat panel cages depending on your requirements. Many different length and circumference options are available.
The frame material of the dust removal is 20# carbon steel, which is formed at one time by the frame production line to ensure straightness and twist. The frame of the filter bag is smooth after welding, without burrs, and has sufficient strength to prevent de-soldering, no de-soldering, false welding and leakage. welding phenomenon.
The dust removal framework adopts galvanized technology, and the coating is firm, wear-resistant and corrosion-resistant, which avoids the rust on the surface of the framework and the adhesion of the filter bag after the dust collector has been working for a period of time, ensuring smooth bag replacement and reducing damage to the bag during bag replacement.
Why choose us?
1. Factory Experience: We are an experienced manufacturer with complete production lines and professional production equipment.
2. Quality assurance: We always strictly implement the quality management system, run through every detail of production, and be responsible for the products required by customers.
3. One-stop purchasing: We provide one-stop purchasing of filtration products to meet the different needs of global customers.
4. Other advantages: We respond quickly within 12 hours, provide efficient and high-quality services and competitive prices.
The Stainless Steel 304 Oval Filter Bag Cage Specifications:
| Type | Number of longitudinal threads |
Diameter of the longitudinal wires | Ring wire diameter | Material |
| Round Filter Cage | 6~24 10, 12, and 20 vertical wires most common |
3~6mm 10, 11, and 12 gauge wire most common |
86~190mm Common diameters: 4″ – 6-1/8″ |
Aluminum, S235JR, Galvanized Steel, 201, SS 304, SS 316, ABS, Carbon/Mild Steel, Epoxy Coated (High Temperature <325°) |
| Oval Filter Cage | 6-8-10--16 | 3~6mm 10, 11, and 12 gauge wire most common |
||
|
In addition to the above information, we also need your quantity, length, Distance of rings, collar and venturi condition. If you have drawings, we will produce according to the drawings.
Filter Bag Cage Top:Rolled Flange (Turned Down Flange),Split Collar (Rolled Band),Slotted,All Wire,Split Ring,Collar venturi...
|
||||
Filter Bag Cage Production Process:
Our factory:
Our Certificate:
More details, pls feel free to contact us, Thanks
