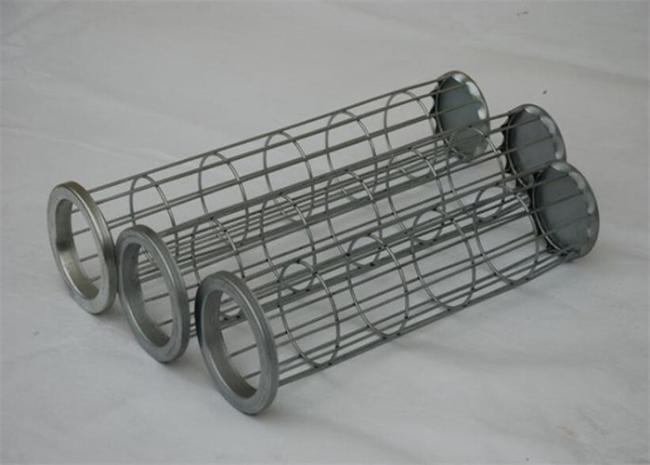

Baghouse Galvanized Dust Collector Bag Supporting Cages With Venturi
Baghouse Galvanized Dust Collector Supporting Filter Cage With Venturi
I. Overview
We manufactures cages to fit a wide variety of baghouse makes and models. Our dust collector cages can be made for your new baghouse or designed to fit an existing model from most other major dust collector manufacturers including:
Our cages can be fabricated in many different types of materials, coatings, lengths, and specifications.
Common Cage Materials Available:
Galvanized Steel
Carbon Steel
Mild Steel
304 Stainless Steel
316 Stainless Steel
2. Structural features
There are reasonable structural methods such as multi-section type, venturi tube, short protection tube, unloading type, plug-in type, chuck type, etc.
3. Surface treatment method
There are galvanizing, plastic spraying, anti-corrosion treatment, surface silicone spraying, etc. The surface silicone coating is especially suitable for the dust collector application of large generator sets.
Application:
Mine industry.
Medicine industry
Plastic, food industry.
Coal fired power stations.
Steel power station.
Cement industry.
Paper industry.
Building and construction industry.
Other industrial segments.
| Goods Name | Standard | Description | Goods Name | Standard | Description |
| Clamps | φ180 | Spring curb | 120*2 | Normal quenching steel belt | |
| φ230 | 130*2 | ||||
| φ250 | 150*2 | ||||
| φ260 | 200*2 | ||||
| φ292 | 292*2 | ||||
| φ300 | 300*2 | ||||
| Hoop | φ160 | φ300-φ270 using wire rod ofφ4.2 | 120*2.5 | ||
| φ170 | 130*2.5 | ||||
| φ180 | 150*2.5 | ||||
| φ200 | 182*2.5 | ||||
| φ210 | 202*1.3 | Quenching stainless steel belt | |||
| φ250 | φ180 using wire rod of φ3.3 | 127*1.5 | |||
| φ260 | 127*1.9 | If it is highly corrosive, we can use titanium curb | |||
| φ280 | 130*2.5 | ||||
| φ292 | φ260-φ180 using wire rod of φ3.8 | 150*2.5 | |||
| φ300 | 129.6*2.5 | ||||
| φ400 | 280*2 | ||||
| φ615 | Pendant chain device | Hung huang, pendant chain | |||
| Cap | 180 | upper cap lower cap | |||
| 200 | |||||
| 230 | Venturi tube | Carbon steel | |||
| 250 | Aluminum | ||||
| 292 | Stainless steel | ||||
| 300 | Unifying covering cap and venturi tube(integration) | ||||
| Filter cage | Material: hard-drawn wire | Galvanization treatment | Normal | Yellow | |
| White zinc plated treatment | High quality | Light silver | |||
| Organic silicon treatment | Black | ||||
| Material: stainless steel | 201-316L | ||||
| Any special requirement and production can be processed according to buyer’s sample(with | |||||
Why choose us?
1. Factory Experience: We are an experienced manufacturer with complete production lines and professional production equipment.
2. Quality assurance: We always strictly implement the quality management system, run through every detail of production, and be responsible for the products required by customers.
3. One-stop purchasing: We provide one-stop purchasing of filtration products to meet the different needs of global customers.
4. Other advantages: We respond quickly within 12 hours, provide efficient and high-quality services and competitive prices.
Filter Bag Cage Production Process:

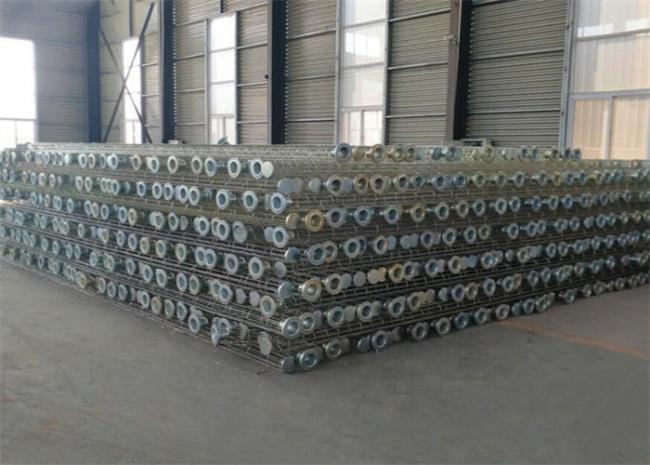

Our factory:
Our Certificate:
More details, pls feel free to contact us, Thanks
