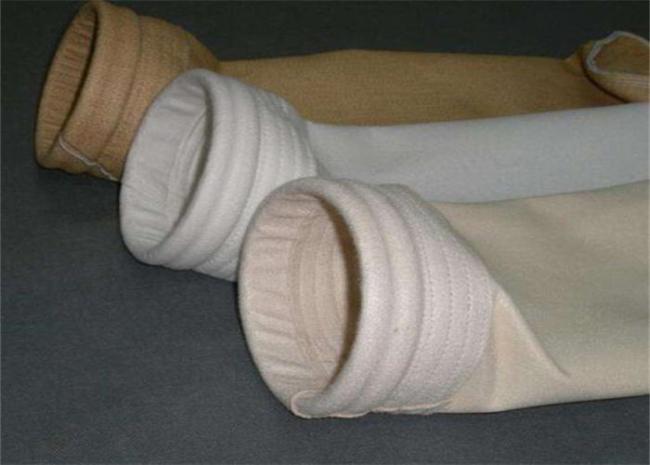

Non Woven Needle Punched PPS Filter Bag For Dust Collector
Non-woven Needle Punched PPS Filter Bag For Dust Collector
PPS needled felt heat resistant temperature between 170℃-210℃, long-term operating temperature below 160℃, instantaneous heat resistant 210℃, melting point 230℃. It has good flame retardancy, high wear resistance, high heat resistance, resistance to acid, alkali and oxidized alkali properties second only to PTFE needled felt. PPS film-covered needled felt filter material/filter bag, the product has high porosity, small void, high filtration accuracy, heating at 190 degrees for 30 minutes, the shrinkage rate is less than 0.7%, no shrinkage below 20 minutes! The instantaneous temperature of 190-200 degrees shall not exceed 5 minutes each time, and the cumulative temperature of a year shall not exceed 30 minutes; No more than 10 minutes at 180 to 190 degrees, and no more than 100 hours a year. In the normal operating environment, the emission concentration of coal-fired boilers in power plants can reach below 10mg/Nm³. pps needled felt coated filter bag is a widely accepted filter material in the pulse-dust cleaning dust collector for the filtration of coal-fired boilers, waste incinerators and power plant fly ash.
Specifications
| Name | Polyester Filter Felt | Polyester Filter Felt (Oil and water repellent) |
PPS/PTFE Filter Felt |
PPS Filter Felt | |
| Material | Fiber | PPS/M-Fiberglass | PPS/M-Fiberglass | PPS/PTFE fiber | PPS Fiber |
| Scrim | PPS | Glass Fiber | PTFE | PPS | |
| Weight | g/m³ | 550±20 | 850±20 | 580±20 | 550 |
| Thickness | mm | 2.0±0.2 | 3.0±0.2 | 1.8±0.2 | 1.9±0.1 |
| Air Permeability | m³/㎡.min.200pa | 18-28 | 15-40 | 10-18 | 12-18 |
| Breaking Strength(N/5cm) | Warp | ≥1000 | ≥2600 | ≥1000 | ≥800 |
| Weft | ≥1100 | ≥2700 | ≥1200 | ≥1200 | |
| Elongation@50N(%) | Warp | ≤30 | ≤10 | ≤30 | ≤25 |
| Weft | ≤50 | ≤10 | ≤45 | ≤40 | |
| Service Temperature(℃) |
Continuous℃ | 160-190 | ≤210 | ≤190 | ≤160 |
| Instant℃ | 210 | 150 | 210 | 190 | |
| Finishing | Singeing,Calendaring PTFE Coating |
Singeing,Calendaring PTFE Coating |
Singeing,Calendaring PTFE Coating |
Singeing Calendaring |
|
Filter Bag Applicant:
Asphalt Plants,Cement Mills,Incinerators,coal-fired thermal power plants, ash factories, and fly dust filters in large dust filtration systems.
Production Process:
There are 19 working produres. Every product from Sinft had undergone detailed perfection.
Scientific surface treatment like heat setting, dipping, singeing, calendering and coating can signigicantly prevent the fabric from
shrinking,remove surface batting, imrove filtration effectiveness and increase heat resistant.
Package:
The dust filter bags are packed in PP woven bags or according to your requirements.
Company Introduction:
Hebei Sinft filter Co.,Ltd is a high-tech enterprise group integrating R&D, production and sales of dust
collector filter bags and filter cages. We are founded in 2007 and located in Shijiazhuang.
We own the most advanced complete sets of production equipment, the high-speed acupuncture production
lines, heat-setting and high temperature after-treatmentunits, laminating units, sewing equipment, and hanging
production lines.
Daily production capacity of filter bag is more than 7000 pcs, the scale of production and equipment are at the
forefront of the industry.
Sinft Team:
We often attend international and domestic exhibitions. The company will organize team building
activities regularly. We are not only colleagues, but also family members.
Sinft Certificate:
We have ISO 9001 Certifications. Our products are used in many places at home and abroad, such as
power plants in North America, cement plants in Europe which all Won high praise.
More details, pls feel free to contact us, Thanks
