Galvanized Steel Burr Free Filter Cage for Aluminum Smelting Cement Industry
The galvanized dust filter cage introduce:
The galvanized dust filter cage is an important part of the dust collector, that is, the galvanized technology is used on the outside of the skeleton that has been welded and formed, which can prevent the galvanized skeleton from rusting. The application of galvanizing technology prolongs the service life of galvanized steel filter cage.
The galvanized steel filter cage is the "rib" of the filter bag. It is light and easy to install and maintain. The quality of the galvanized frame directly affects the filtering state and service life of the filter bag. The galvanized skeleton is a galvanized post-treatment surface after the dust removal skeleton is welded and formed. , Using one-time forming full galvanized, the surface is smooth and straight, no burrs are produced so that the filter bag is not damaged, the welding is uniform, and the structure is reasonable. The galvanized dust removal skeleton has a smooth appearance, no zinc bumps and burrs, and is silver-white or colored.

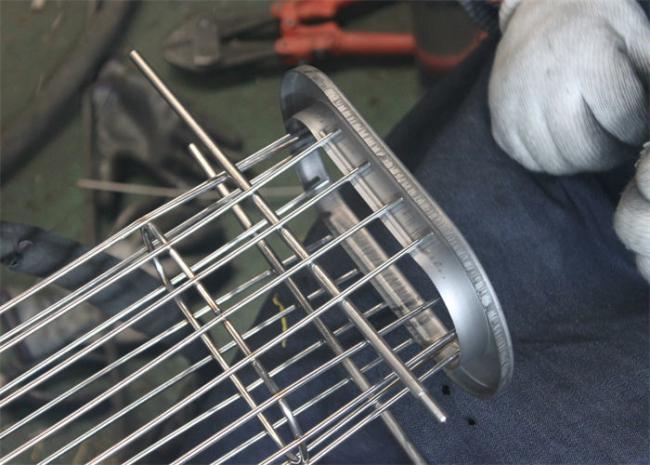

Galvanized dust bag cage is formed by one-time welding of equipment.
Filter cage galvanized process:
Principle and process: In the galvanizing process, the material to be treated is fully degreased and prepared before being immersed in an electrolytic, acid or alkaline solution containing zinc salts. Finally, a current channel is formed between the workpiece and the solution, allowing metallic zinc to deposit on the surface of the workpiece itself. After galvanizing, the treated part goes into a passivation bath, forming a thin protective film that, once dry, increases resistance to atmospheric corrosion and improves its appearance. The aesthetic appearance is metallic, the coloration depends on the passivation applied after the zinc layer.
The processing filter cage is carried out in cycles: the assessment is usually carried out by the client according to technical and aesthetic needs and type of use. Again, evaluate the type of passivation required. Cold electrolytic galvanizing enables micron-level residue control, good aesthetics and an excellent quality/price ratio. Another advantage of this process.
The galvanized dust filter cage dust removal framework technical requirements:
1. The galvanized steel filter cage must have sufficient strength, verticality and dimensional accuracy.
2. Galvanized steel filter cage table is galvanized.
3. All welded joints of the galvanized steel filter cage are good, and no de-soldering and welding leakage are allowed.
The galvanized dust filter cage Specifications:
| Type | Number of longitudinal threads |
Diameter of the longitudinal wires | Ring wire diameter | Material |
| Round Filter Cage | 6~24 10, 12, and 20 vertical wires most common |
3~6mm 10, 11, and 12 gauge wire most common |
86~190mm Common diameters: 4″ – 6-1/8″ |
Aluminum, S235JR, Galvanized Steel, 201, SS 304, SS 316, ABS, Carbon/Mild Steel, Epoxy Coated (High Temperature <325°) |

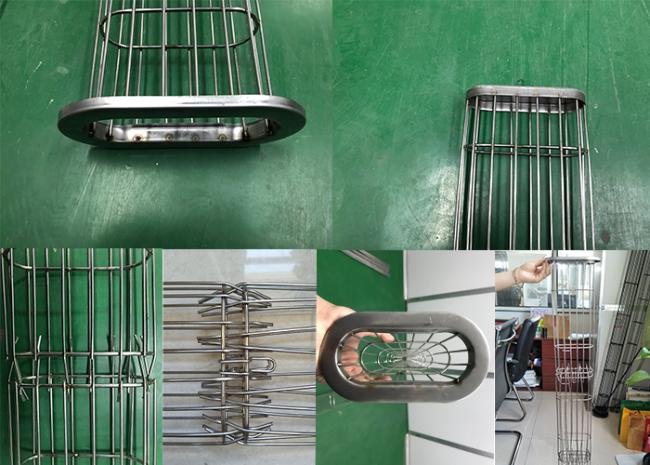

| Oval Filter Cage | 6-8-10--16 | 3~6mm 10, 11, and 12 gauge wire most common |
||
| In addition to the above information, we also need your quantity, length, Distance of rings, collar and venturi condition. If you have drawings, we will produce according to the drawings. | ||||

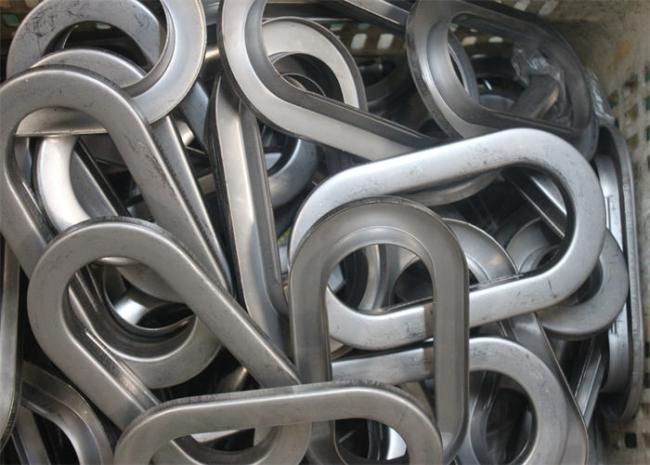

FILTER CAGE TOPS:Rolled Flange (Turned Down Flange),Split Collar (Rolled Band),Slotted,All Wire,Split Ring,Collar venturi...
FILTER CAGE BOTTOMS:Welded Cup,Crimped Cup,Snap Cup,Wire Formed...

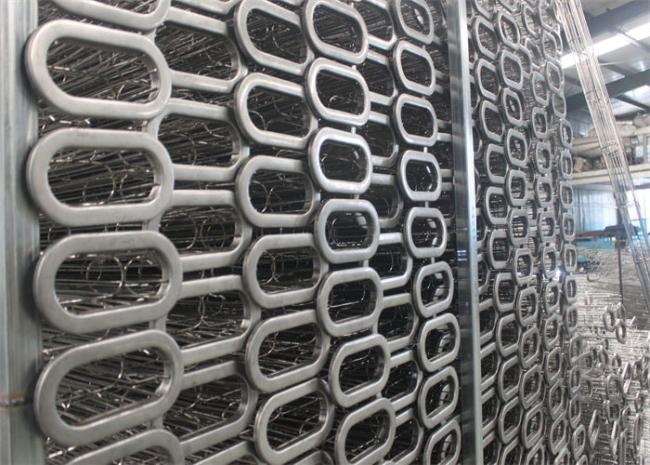

Our factory:
