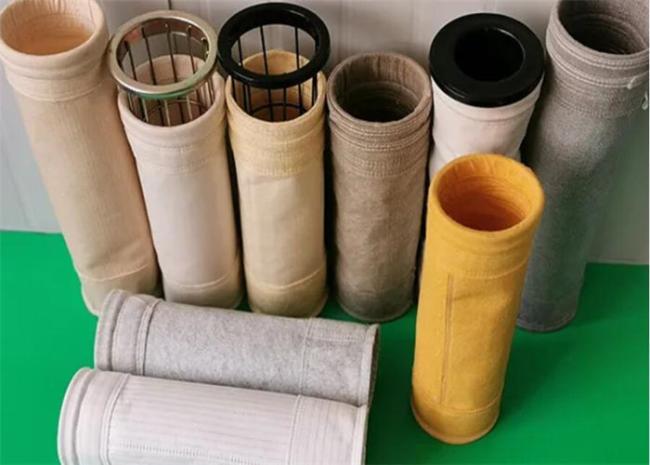

Garbage Incinerator Ryton PPS Filter Bag
High Temperature Resistant Fume PPS Filter Bag for Garbage Incinerator
PPS Filter Bag Feature:
The acid and alkali resistance is Excellent. PPS fiber does not burn, neither does it support burning. The temperature resistance is up to 200℃ (392℉). The resistance to oxidation is poor. So the working environment requires the oxygen content less than 14%(Vol.), and the oxynitride content is less than 600mg/Nm³. The higher oxygen contents the lower working temperature.
PPS Filter Bag Advantages:
1) The PPS filter bag has a high dust filtration performance which can successfully filter dust up to 99 percent thanks to high-quality materials and innovative manufacturing techniques.
2) The PPS filter bag has a long life and is resistant to high temperatures.
3) The PPS filter bag is excellent resistance to acids and alkaline.
PPS Filter Bag Specifications:
| Name | Polyester Filter Felt | Polyester Filter Felt (Oil and water repellent) |
PPS/PTFE Filter Felt |
PPS Filter Felt | |
| Material | Fiber | PPS/M-Fiberglass | PPS/M-Fiberglass | PPS/PTFE fiber | PPS Fiber |
| Scrim | PPS | Glass Fiber | PTFE | PPS | |
| Weight | g/m³ | 550±20 | 850±20 | 580±20 | 550 |
| Thickness | mm | 2.0±0.2 | 3.0±0.2 | 1.8±0.2 | 1.9±0.1 |
| Air Permeability | m³/㎡.min.200pa | 18-28 | 15-40 | 10-18 | 12-18 |
| Breaking Strength(N/5cm) | Warp | ≥1000 | ≥2600 | ≥1000 | ≥800 |
| Weft | ≥1100 | ≥2700 | ≥1200 | ≥1200 | |
| Elongation@50N(%) | Warp | ≤30 | ≤10 | ≤30 | ≤25 |
| Weft | ≤50 | ≤10 | ≤45 | ≤40 | |
| Service Temperature(℃) |
Continuous℃ | 160-190 | ≤210 | ≤190 | ≤160 |
| Instant℃ | 210 | 150 | 210 | 190 | |
| Finishing | Singeing,Calendaring PTFE Coating |
Singeing,Calendaring PTFE Coating |
Singeing,Calendaring PTFE Coating |
Singeing Calendaring |
|
PPS Filter Bag Applicant:
Asphalt Plants,Cement Mills,Incinerators,coal-fired thermal power plants, ash factories, and fly dust filters in large dust filtration systems.
Production Process:
There are 19 working produres. Every product from Sinft had undergone detailed perfection.
Scientific surface treatment like heat setting, dipping, singeing, calendering and coating can signigicantly prevent the fabric from
shrinking,remove surface batting, imrove filtration effectiveness and increase heat resistant.
Package:
The dust filter bags are packed in PP woven bags or according to your requirements.
Company Introduction:
Hebei Sinft filter Co.,Ltd is a high-tech enterprise group integrating R&D, production and sales of dust
collector filter bags and filter cages. We are founded in 2007 and located in Shijiazhuang.
We own the most advanced complete sets of production equipment, the high-speed acupuncture production
lines, heat-setting and high temperature after-treatmentunits, laminating units, sewing equipment, and hanging
production lines.
Daily production capacity of filter bag is more than 7000 pcs, the scale of production and equipment are at the
forefront of the industry.
Sinft Team:
We often attend international and domestic exhibitions. The company will organize team building
activities regularly. We are not only colleagues, but also family members.
Sinft Certificate:
We have ISO 9001 Certifications. Our products are used in many places at home and abroad, such as
power plants in North America, cement plants in Europe which all Won high praise.
More details, pls feel free to contact us, Thanks
