Organic Solvent Resistant PTFE Filter Bag
Organic Solvent Resistant 100% Needle Felt PTFE Filter Bag For Cement Factory
PTFE Filter Bag Introduction:
PTFE filter bag made of glass fabric with PTFE membrane are used in filtration processes where the working temperature can reach 260-280°C.
Glass fabric with PTFE membrane is generally used for dedusting of fumes filtration (boilers in power plants). This material has properties similar to those of needle felts made of 100% PTFE, but it is much more cost-effective. Note, however, that this fabric requires special components, as well as compliance with strict standards of usage
PTFE Filter Bag Advantage:
1. Excellent temperature resistance: up to 260℃ (572℉)
2. Extremely long working life. Service life can reach 6 years at the temperature 66℃～240℃ and normal working conditions.
3. Excellent performance of anti-acid and anti-alkali resistance
4. Excellent filter efficiency
5. Good performances of hydrolysis stability and flame retardant
6. Suitable using on various power plant boiler and waste incineration boiler. The weakness is poor folding property and higher price.
PTFE Filter Bag Specifications:
| Name | PTFE Filter Felt | PPS/PTFE Filter Felt |
|
| Material | Fiber | PTFE fiber | PPS/PTFE fiber |
| Scrim | PTFE | PTFE | |
| Weight | g/m³ | 750 | 580±20 |
| Thickness | mm | 1.0±1.3 | 1.8±0.2 |
| Air Permeability | m³/㎡.min.200pa | 3-9 | 10-18 |
| Breaking Strength(N/5cm) | Warp | ≥760 | ≥1000 |
| Weft | ≥760 | ≥1200 | |
| Elongation@50N(%) | Warp | ≤10 | ≤30 |
| Weft | ≤45 | ≤45 | |
| Service Temperature(℃) |
Continuous℃ | ≤260 | ≤190 |
| Instant℃ | 280 | 210 | |
| Finishing | Heat setting PTFE Membrane |
Singeing,Calendaring PTFE Coating |
|
PTFE Filter Bag Applicant:
Steel Foundries,Coal Fired Power Plants, drying kilns, garbage incinerators, thermal power plants, cement.

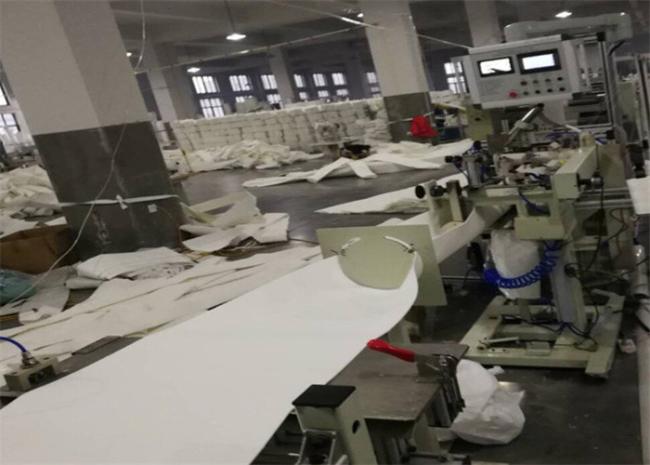

Production Process:
There are 19 working produres. Every product from Sinft had undergone detailed perfection.
Scientific surface treatment like heat setting, dipping, singeing, calendering and coating can signigicantly prevent the
fabric from shrinking,remove surface batting, imrove filtration effectiveness and increase heat resistant.

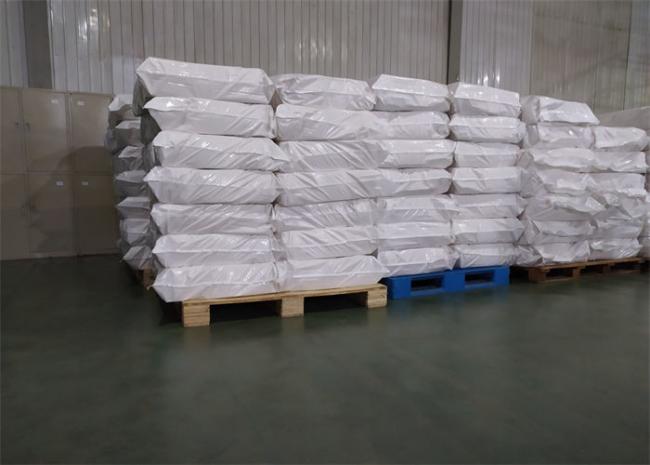

Package:
The dust filter bags are packed in PP woven bags or according to your requirements.
Company Introduction:
Hebei Sinft filter Co.,Ltd is a high-tech enterprise group integrating R&D, production and sales of dust
collector filter bags and filter cages. We are founded in 2007 and located in Shijiazhuang.
We own the most advanced complete sets of production equipment, the high-speed acupuncture production
lines, heat-setting and high temperature after-treatmentunits, laminating units, sewing equipment, and hanging
production lines.
Daily production capacity of filter bag is more than 7000 pcs, the scale of production and equipment are at the
forefront of the industry.
Sinft Team:
We often attend international and domestic exhibitions. The company will organize team building
activities regularly. We are not only colleagues, but also family members.
Sinft Certificate:
We have ISO 9001 Certifications. Our products are used in many places at home and abroad, such as
power plants in North America, cement plants in Europe which all Won high praise.
More details, pls feel free to contact us, Thanks
