Sinft High Strength Carbon Steel Filter Bag Cage Manufacturers For Asphalt Plant
High Strength Carbon Steel Galvanized Treatment Filter Bag Cage For Asphalt Plant
The galvanized dust filter cage introduce:
The galvanized dust filter cage is an important part of the dust collector, that is, the galvanized technology is used on the outside of the skeleton that has been welded and formed, which can prevent the galvanized skeleton from rusting. The application of galvanizing technology prolongs the service life of galvanized steel filter cage.

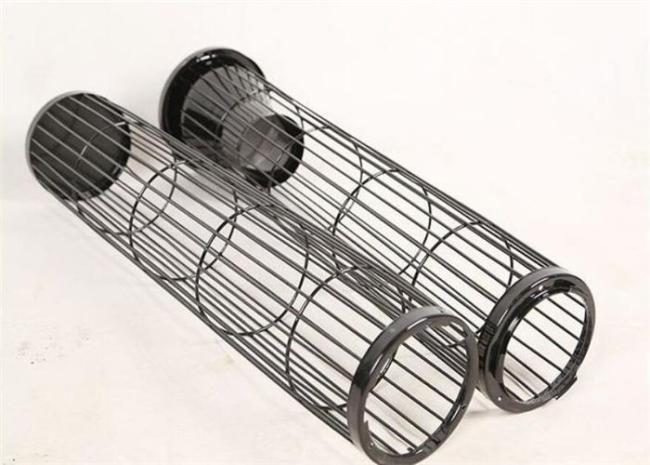

The galvanized steel filter cage is the "rib" of the filter bag. It is light and easy to install and maintain. The quality of the galvanized frame directly affects the filtering state and service life of the filter bag. The galvanized skeleton is a galvanized post-treatment surface after the dust removal skeleton is welded and formed. , Using one-time forming full galvanized, the surface is smooth and straight, no burrs are produced so that the filter bag is not damaged, the welding is uniform, and the structure is reasonable. The galvanized dust removal skeleton has a smooth appearance, no zinc bumps and burrs, and is silver-white or colored.
Galvanized dust bag cage is formed by one-time welding of equipment.
Filter cage galvanized process:
Principle and process: In the galvanizing process, the material to be treated is fully degreased and prepared before being immersed in an electrolytic, acid or alkaline solution containing zinc salts. Finally, a current channel is formed between the workpiece and the solution, allowing metallic zinc to deposit on the surface of the workpiece itself. After galvanizing, the treated part goes into a passivation bath, forming a thin protective film that, once dry, increases resistance to atmospheric corrosion and improves its appearance. The aesthetic appearance is metallic, the coloration depends on the passivation applied after the zinc layer.
The processing filter cage is carried out in cycles: the assessment is usually carried out by the client according to technical and aesthetic needs and type of use. Again, evaluate the type of passivation required. Cold electrolytic galvanizing enables micron-level residue control, good aesthetics and an excellent quality/price ratio. Another advantage of this process.
The Stainless Steel 304 Oval Filter Bag Cage Specifications:
| Type | Number of longitudinal threads |
Diameter of the longitudinal wires | Ring wire diameter | Material |
| Round Filter Cage | 6~24 10, 12, and 20 vertical wires most common |
3~6mm 10, 11, and 12 gauge wire most common |
86~190mm Common diameters: 4″ – 6-1/8″ |
Aluminum, S235JR, Galvanized Steel, 201, SS 304, SS 316, ABS, Carbon/Mild Steel, Epoxy Coated (High Temperature <325°) |
| Oval Filter Cage | 6-8-10--16 | 3~6mm 10, 11, and 12 gauge wire most common |
||
|
In addition to the above information, we also need your quantity, length, Distance of rings, collar and venturi condition. If you have drawings, we will produce according to the drawings.
Filter Bag Cage Top:Rolled Flange (Turned Down Flange),Split Collar (Rolled Band),Slotted,All Wire,Split Ring,Collar venturi...
|
||||
Why choose us?
1. Factory Experience: We are an experienced manufacturer with complete production lines and professional production equipment.
2. Quality assurance: We always strictly implement the quality management system, run through every detail of production, and be responsible for the products required by customers.
3. One-stop purchasing: We provide one-stop purchasing of filtration products to meet the different needs of global customers.
4. Other advantages: We respond quickly within 12 hours, provide efficient and high-quality services and competitive prices.
Filter Bag Cage Production Process:

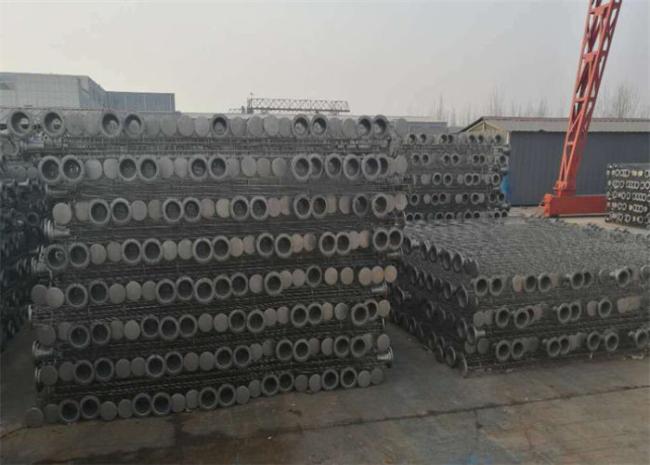

Our factory:
Our Certificate:
More details, pls feel free to contact us, Thanks
