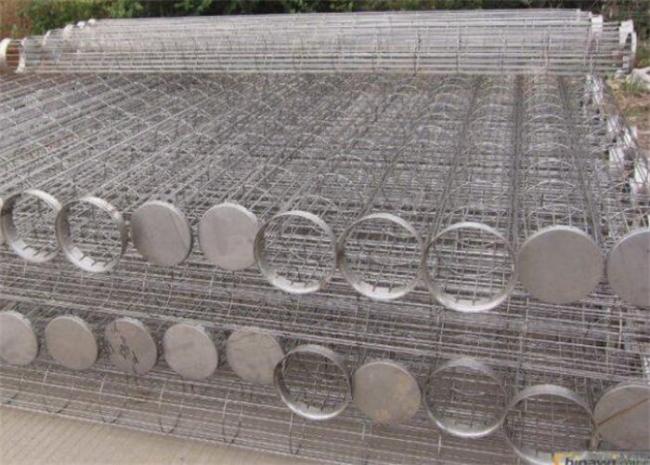

Galvanized Carbon Steel 8-Wire Burr-Free Filter Bag Cage For Cement Grinding And Dust Removal
Galvanized Carbon Steel 8-Wire Burr-Free Filter Bag Cage For Cement Grinding And Dust Removal
The function of filter bag cage:
Filter cage is an accessory of pulse bag filter. It is formed by one-time welding with special equipment, and has the characteristics of firm welding and smooth and straight appearance.
The filter bag cage is an important part of the dust collector. It is the "rib" of the dust filter bag. It should be light and easy to install and maintain. The quality of the filter cage directly affects the filter state and service life of the filter bag. The key to the dust collector is to clean the dust, and the cleaning effect determines the success or failure of the dust bag cage and even the entire dust collector.
Features:
It adopts one-time forming fully galvanized, the surface is smooth and straight, no burrs are produced, so that the filter bag is not damaged, the welding is uniform, the structure is reasonable, and it is durable and so on.
Technical requirements:
1. There should be sufficient strength, rigidity, verticality and dimensional accuracy to prevent deformation under compression and damage during transportation.
2. The surface of the filter bag dust removal skeleton must be treated with anti-corrosion, which can be sprayed or galvanized. The anti-corrosion treatment agent used for high temperature should meet the needs of high temperature;
3. All solder joints must be firm, and no desoldering, virtual soldering and missing soldering are allowed;
The Galvanized Carbon Steel Filter Bag Cage Specifications:
| Type | Number of longitudinal threads |
Diameter of the longitudinal wires | Ring wire diameter | Material |
| Round Filter Cage | 6~24 10, 12, and 20 vertical wires most common |
3~6mm 10, 11, and 12 gauge wire most common |
86~190mm Common diameters: 4″ – 6-1/8″ |
Aluminum, S235JR, Galvanized Steel, 201, SS 304, SS 316, ABS, Carbon/Mild Steel, Epoxy Coated (High Temperature <325°) |
| Oval Filter Cage | 6-8-10--16 | 3~6mm 10, 11, and 12 gauge wire most common |
||
|
In addition to the above information, we also need your quantity, length, Distance of rings, collar and venturi condition. If you have drawings, we will produce according to the drawings.
Filter Bag Cage Top:Rolled Flange (Turned Down Flange),Split Collar (Rolled Band),Slotted,All Wire,Split Ring,Collar venturi...
|
||||
Why choose us?
1. Factory Experience: We are an experienced manufacturer with complete production lines and professional production equipment.
2. Quality assurance: We always strictly implement the quality management system, run through every detail of production, and be responsible for the products required by customers.
3. One-stop purchasing: We provide one-stop purchasing of filtration products to meet the different needs of global customers.
4. Other advantages: We respond quickly within 12 hours, provide efficient and high-quality services and competitive prices.
Filter Bag Cage Production Process:
Our factory:
Our Certificate:
More details, pls feel free to contact us, Thanks
