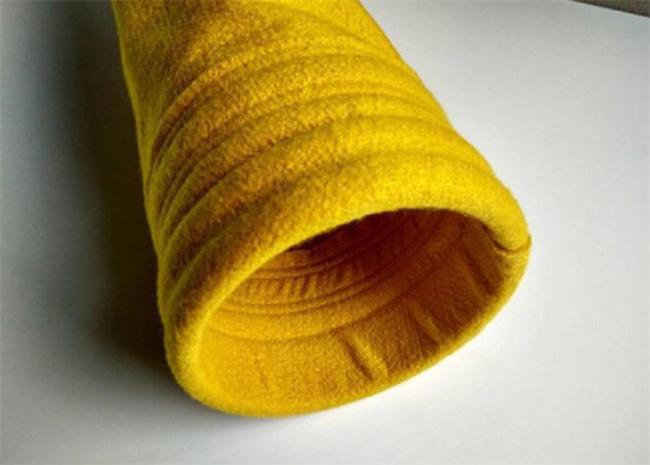

P84 Industrial Dust Collector Filter Bags 6000mm Scrim With PTFE Coating
Industrial Dust Collector P84 Filter Bag 6000 mm Scrim With PTFE Coating
P84 Filter Bag Introduction
P84 high temperature resistant filter bag characteristics due to the fineness of the fiber itself is significant, more because of irregular P84 high temperature resistant dust bag filter felt fiber cross-section to increase the fiber surface area to the maximum and provide a lot of tiny pores to make the surface filtration effect is better than the depth of filtration.
Good acid and alkaline resistance, stronger temperature resistance (260 degrees) make it can be used in more severe working conditions, widely used in waste incineration, thermal power generation, steel, metallurgy, chemical industry and other industries.
P84 Filter Bag Advantage:
Excellent stability in applications with high dry heat temperatures, mineral acids and alkaline.
P84 Filter Bag Disdvantage:
Must oversize bag for shrinkage that can occur in temperatures above 450 Degrees F.
P84 Filter Bag Specifications:
| Name | P84/M-Fiberglass Filter Felt |
P84 Filter Felt | |
| Material | Fiber | P84/M-Fiberglass | P84 fiber |
| Scrim | Glass fiber | PTFE | |
| Weight | g/m³ | 850±20 | 550 |
| Thickness | mm | 3.1±0.2 | 2.0±0.2 |
| Air Permeability | m³/㎡.min.200pa | 20-35 | 14-18 |
| Breaking Strength(N/5cm) | Warp | ≥2500 | ≥850 |
| Weft | ≥2800 | ≥1000 | |
| Elongation@50N(%) | Warp | ≤10 | ≤25 |
| Weft | ≤10 | ≤50 | |
| Service Temperature(℃) |
Continuous℃ | ≤260 | ≤240 |
| Instant℃ | 280 | 260 | |
| Finishing | Heat setting PTFE Coating |
Singeing,Calendaring | |
P84 Filter Bag Applicant:
Waste-to-Energy, Coal Fired Boilers,Incinerators
Production Process:
There are 19 working produres. Every product from Sinft had undergone detailed perfection.
Scientific surface treatment like heat setting, dipping, singeing, calendering and coating can signigicantly prevent the
fabric from shrinking,remove surface batting, imrove filtration effectiveness and increase heat resistant.
Package:
The dust filter bags are packed in PP woven bags or according to your requirements.
Company Introduction:
Hebei Sinft filter Co.,Ltd is a high-tech enterprise group integrating R&D, production and sales of dust
collector filter bags and filter cages. We are founded in 2007 and located in Shijiazhuang.
We own the most advanced complete sets of production equipment, the high-speed acupuncture production
lines, heat-setting and high temperature after-treatmentunits, laminating units, sewing equipment, and hanging
production lines.
Daily production capacity of filter bag is more than 7000 pcs, the scale of production and equipment are at the
forefront of the industry.
Sinft Team:
We often attend international and domestic exhibitions. The company will organize team building
activities regularly. We are not only colleagues, but also family members.
Sinft Certificate:
We have ISO 9001 Certifications. Our products are used in many places at home and abroad, such as
power plants in North America, cement plants in Europe which all Won high praise.
More details, pls feel free to contact us, Thanks
