ISO9001 Certified Finish Heat Set Nomex Filter Bag Abrasion Proof
High Gas Temperature Finish Heat Set Nomex Filter Bag Carbon Black

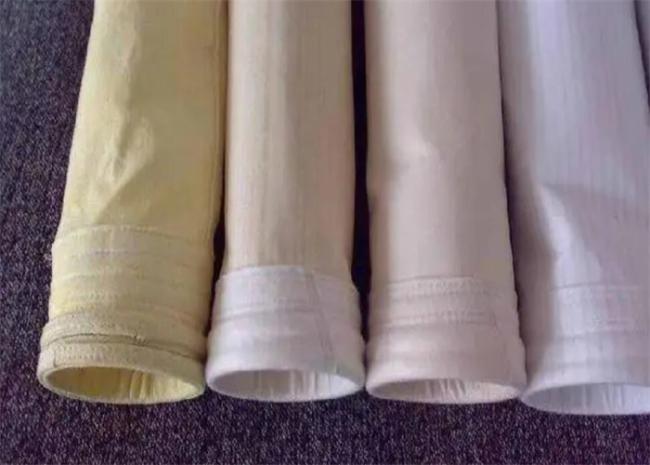

Nomex Filter Bag Introduction:
Aramid fiber needled felt filter bag filter in order to ensure the accuracy, I company with aramid fiber as the surface layer, fiber after impregnation of the PTFE (polytetrafluoroethylene) formed on the surface of filter layer compared with ordinary filter material filter layer, the density degree is higher, the type A structure is formed on the micro, filtering mechanism belongs to the surface of the filter, through dipping permeability of membrane process, liao small aperture, high porosity, Improve the filtering accuracy of the filter material, can separate all dust larger than the diameter of the micropore, so the dust purification efficiency is high and stable, it is easy to achieve the dust emission requirements.
Nomex Filter Bag Advantage:
strong points of high-temperature resistance, can be up to 220 degrees, good abrasion resistance, anti-adhesion.
Nomex Filter Bag Disdvantage:
easily hydrolyzed, easily rotted by acid vapors. It is therefore only suitable for certain applications.
Nomex Filter Bag Specifications:
| Name | Aramid Filter Felt | Aramid/M-Fiberglass Filter Felt |
Aramid/M-Fiberglass Filter Felt |
|
| Material | Fiber | Aramid fiber | Aramid/M-Fiberglass | Aramid/M-Fiberglass |
| Scrim | Aramid | Glass fiber | Glass fiber | |
| Weight | g/m³ | 550 | 850±20 | 900±8% |
| Thickness | mm | 2.1±0.1 | 3.1±0.2 | 3.0±0.2 |
| Air Permeability | m³/㎡.min.200pa | 18-25 | 15-40 | 3-9 |
| Breaking Strength(N/5cm) | Warp | ≥800 | ≥2600 | ≥2600 |
| Weft | ≥1200 | ≥2700 | ≥2700 | |
| Elongation@50N(%) | Warp | ≤25 | ≤10 | ≤10 |
| Weft | ≤40 | ≤10 | ≤10 | |
| Service Temperature(℃) |
Continuous℃ | ≤200 | ≤230 | ≤230 |
| Instant℃ | 240 | 260 | 260 | |
| Finishing | Singeing | Heat setting PTFE Coating |
Heat setting PTFE Coating |
|
Nomex Filter Bag Applicant:
boiler,hot asphalt concrete,the cement industry,steel factory and many other industries with dust ambient temperature
from below 200℃
Production Process:
There are 19 working produres. Every product from Sinft had undergone detailed perfection.
Scientific surface treatment like heat setting, dipping, singeing, calendering and coating can signigicantly prevent the
fabric from shrinking,remove surface batting, imrove filtration effectiveness and increase heat resistant.
Package:
The dust filter bags are packed in PP woven bags or according to your requirements.
Company Introduction:
Hebei Sinft filter Co.,Ltd is a high-tech enterprise group integrating R&D, production and sales of dust
collector filter bags and filter cages. We are founded in 2007 and located in Shijiazhuang.
We own the most advanced complete sets of production equipment, the high-speed acupuncture production
lines, heat-setting and high temperature after-treatmentunits, laminating units, sewing equipment, and hanging
production lines.
Daily production capacity of filter bag is more than 7000 pcs, the scale of production and equipment are at the
forefront of the industry.
Sinft Team:
We often attend international and domestic exhibitions. The company will organize team building
activities regularly. We are not only colleagues, but also family members.
Sinft Certificate:
We have ISO 9001 Certifications. Our products are used in many places at home and abroad, such as
power plants in North America, cement plants in Europe which all Won high praise.
More details, pls feel free to contact us, Thanks
