Asphalt Mixing Plant Aramid Nomex Filter Bag Abrasion Resistance High Strength
Asphalt Mixing Plant Dust Collector High temperature Nomex Filter Bag

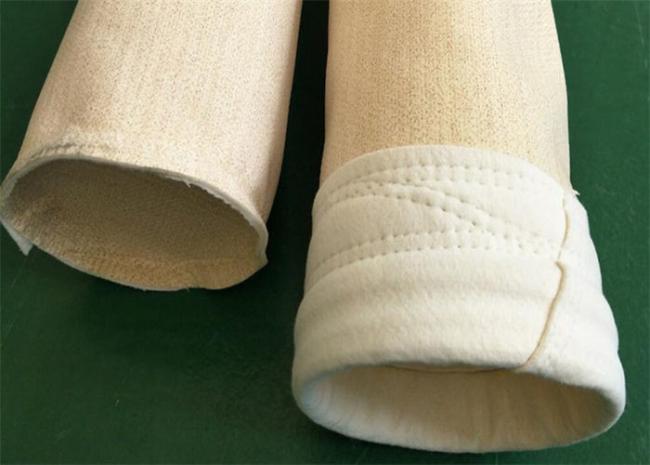

Nomex Filter Bag Introduction:
The sewing thread made of the same material with the inner texture of the bag fabric is used in the operations of sewing filter bags.The longitudinally sewing of the bags is done with special sewing technique of chain type by using high strength sewing thread with doubled three rows and the same sewing method is applied for sewing the base cover part. Otherwise the bags working in the system selected properly for the system might be torn because of unwrapping in the base cover or longitudinally.Therefore this causes the bags used in the system to have short life.
Nomex Filter Bag Advantage:
strong points of high-temperature resistance, can be up to 220 degrees, good abrasion resistance, anti-adhesion.
Nomex Filter Bag Disdvantage:
easily hydrolyzed, easily rotted by acid vapors. It is therefore only suitable for certain applications.
Nomex Filter Bag Specifications:
| Name | Aramid Filter Felt | Aramid/M-Fiberglass Filter Felt |
Aramid/M-Fiberglass Filter Felt |
|
| Material | Fiber | Aramid fiber | Aramid/M-Fiberglass | Aramid/M-Fiberglass |
| Scrim | Aramid | Glass fiber | Glass fiber | |
| Weight | g/m³ | 550 | 850±20 | 900±8% |
| Thickness | mm | 2.1±0.1 | 3.1±0.2 | 3.0±0.2 |
| Air Permeability | m³/㎡.min.200pa | 18-25 | 15-40 | 3-9 |
| Breaking Strength(N/5cm) | Warp | ≥800 | ≥2600 | ≥2600 |
| Weft | ≥1200 | ≥2700 | ≥2700 | |
| Elongation@50N(%) | Warp | ≤25 | ≤10 | ≤10 |
| Weft | ≤40 | ≤10 | ≤10 | |
| Service Temperature(℃) |
Continuous℃ | ≤200 | ≤230 | ≤230 |
| Instant℃ | 240 | 260 | 260 | |
| Finishing | Singeing | Heat setting PTFE Coating |
Heat setting PTFE Coating |
|
Nomex Filter Bag Applicant:
boiler,hot asphalt concrete,the cement industry,steel factory and many other industries with dust ambient temperature
from below 200℃
Production Process:
There are 19 working produres. Every product from Sinft had undergone detailed perfection.
Scientific surface treatment like heat setting, dipping, singeing, calendering and coating can signigicantly prevent the
fabric from shrinking,remove surface batting, imrove filtration effectiveness and increase heat resistant.
Package:
The dust filter bags are packed in PP woven bags or according to your requirements.
Company Introduction:
Hebei Sinft filter Co.,Ltd is a high-tech enterprise group integrating R&D, production and sales of dust
collector filter bags and filter cages. We are founded in 2007 and located in Shijiazhuang.
We own the most advanced complete sets of production equipment, the high-speed acupuncture production
lines, heat-setting and high temperature after-treatmentunits, laminating units, sewing equipment, and hanging
production lines.
Daily production capacity of filter bag is more than 7000 pcs, the scale of production and equipment are at the
forefront of the industry.
Sinft Team:
We often attend international and domestic exhibitions. The company will organize team building
activities regularly. We are not only colleagues, but also family members.
Sinft Certificate:
We have ISO 9001 Certifications. Our products are used in many places at home and abroad, such as
power plants in North America, cement plants in Europe which all Won high praise.
More details, pls feel free to contact us, Thanks
