5300mm 750g Fiberglass Filter Bag For Cement Kiln Tail High Performance
5300 mm 750g Fiberglass dust filter bag For Cement kiln tail

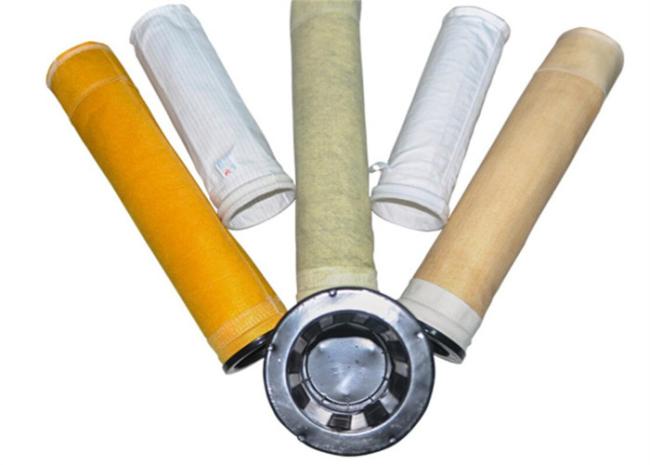

Fiberglass Filter Bag Introduction:
Fiberglass filter bag is a kind of high temperature resistant filter material with reasonable structure and good performance. It not only has the advantages of high temperature resistance, corrosion resistance, dimensional stability, minimal elongation and shrinkage, and high strength of glass fiber fabric, but also the felt layer fiber supports single fiber, three-dimensional microporous structure, high porosity, and low resistance to gas filtration. It is a high-speed, O high-temperature filter material. Compared with other high temperature resistant chemical fiber felts, it has special advantages such as low price, low running resistance, high filtration precision and higher temperature resistance. Suitable for high temperature flue gas filtration in steel, metallurgy, carbon black power generation, cement, chemical and other industries.
Fiberglass Filter Bag Advantage:
Our fiberglass filter bags are ideal for gas filtration applications. It can be used to meet the most demanding particle filtration applications. The filter bag has excellent acid and alkali resistance, wear resistance and high tensile strength. It can be used in a variety of complex situations and harsh environmental conditions. It can also be combined with other different materials to achieve the best gas composition filtering effect. We can provide you products with different specifications, and we accept customized requirements. If you are interested, please feel free to contact us directly!
Fiberglass Filter Bag Applicant:
Multi-fuel boiler, cement, iron, steel, metal …
Fiberglass Filter Bag Specifications
| Name | XLFG350 | XLFG502 | XLFG801 | |
| Ingredients | Fiber | E-Fiberglass | E-Fiberglass | E-Fiberglass |
| Loss on ignition | % | 10-13 | 10-13 | 10-13 |
| Weight | g/m³ | 350±15 | 510±15 | 780±15 |
| Thickness | mm | 0.35±0.03 | 0.5±0.2 | 1.0±0.2 |
| Weave | 1/3 twill | 1/3 twill | double twill | |
| Air Permeability | cm³/c㎡/s.127pa | 4-7 | 3-6 | 3-5 |
| Tensile Breaking Strength(N/2.5cm) | Warp | ≥1300 | ≥2100 | ≥2300 |
| Weft | ≥800 | ≥1300 | ≥1800 | |
| Maximum shrink of 90 mins | Temperature(℃) | 260 | 260 | 260 |
| % | ≤1 | ≤1 | ≤1 | |
| Service Temperature(℃) |
Continuous℃ | 240 | 240 | 240 |
| Instant℃ | 260 | 260 | 260 | |
| Velocity of filtration | m/min | <0.6 | <0.7 | <1.0 |
| Finishing | Acid Resistance/PTFE membrane | |||
Production Process:
There are 19 working produres. Every product from Sinft had undergone detailed perfection.
Scientific surface treatment like heat setting, dipping, singeing, calendering and coating can signigicantly prevent the
fabric from shrinking,remove surface batting, imrove filtration effectiveness and increase heat resistant.
Package:
The dust filter bags are packed in PP woven bags or according to your requirements.
Company Introduction:
Hebei Sinft filter Co.,Ltd is a high-tech enterprise group integrating R&D, production and sales of dust
collector filter bags and filter cages. We are founded in 2007 and located in Shijiazhuang.
We own the most advanced complete sets of production equipment, the high-speed acupuncture production
lines, heat-setting and high temperature after-treatmentunits, laminating units, sewing equipment, and hanging
production lines.
Daily production capacity of filter bag is more than 7000 pcs, the scale of production and equipment are at the
forefront of the industry.
Sinft Team:
We often attend international and domestic exhibitions. The company will organize team building
activities regularly. We are not only colleagues, but also family members.
Sinft Certificate:
We have ISO 9001 Certifications. Our products are used in many places at home and abroad, such as
power plants in North America, cement plants in Europe which all Won high praise.
More details, pls feel free to contact us, Thanks
| Does not perform well with moist heat |
