18 Vertical Wire Filter Bag Cages And Venturi 115mm Diameter Longer Life Time
Galvanized Round 18 Vertical Wire Filter Bag Cage With Venturi
Instructions for use of Filter bag cage:
Carbon steel dust removal bag skeleton bag cage is an installation spare part that enables various external dust removal bags to maintain a certain appearance and operating state under the standard of ash removal work conditions. It is a dust removal cloth.
The "bones" of the bag
Immediately related to the filter, the actual effect of dust removal and the service life of the dust bag.
The cage method of the dust bag: divided according to the shape
① Ring-shaped cage bones: cage bones used for garden bags;
② Special-shaped cage bones: cage bones used for flat, waist ring, prismatic and trapezoidal bags.
Divided by installation method
① Up-drawn cage: the cage that is loaded, unloaded and transported on the board of the dust removal equipment;
② Side loading test cage: the cage that is loaded, unloaded and transported from the side under the dust removal equipment flower plate.
Divided by cage structure
① Cage-type whole-section cage: a cage-type overall cage formed by electric welding of longitudinal bars and support points;
② Segmented cage bone: a cage bone made of two or more cage-type cage bones;
③ Extension spring cage: a cage made of stainless steel wire wound into a tension spring
In the bag filter, there is an "inconspicuous" but very important accessory - the venturi. The venturi plays the role of collecting and draining the wind and gathering the wind speed in the bag filter.
If there is no venturi, the gas injected by the injection valve will be dispersed and reach the top of the dust removal bag, which will not only reduce the cleaning performance of the bag filter, but also reduce the life of the dust filter bag. After the venturi is installed, the venturi changes the airflow from coarse to thin to speed up the gas flow rate, so that the gas forms a "vacuum" area on the back side of the venturi outlet. It can make the air flow more accurate and farther to the bottom of the dust bag, and increase the cleaning performance of the dust bag.
Applications:
Power Stations,Filtered dust,Flue ash, discharging flue ash
Coal dust,Building and Construction,Cement, furnace dust, gypsum, limestone, finely ground quartz,Calcium hydroxide, lead monoxide, quicklime, acid crystals,Pure clay, phosphates, magnesite concentrate, finely ground fluorid, production of aluminum,Chemical Industry,Thomas meal (Fertilizer),Rubber compounds, sinter dust, catalysts,Sodium sulfate,Soap powder
| Specifications | |||
| Types: | Round Style/Flat Style/Envelope Style/ Special Style | ||
| Number Of Wires: | 8/10/12/16/20/24 vertical wires(usually) | ||
| Ring Space: | Ring spacing standard is 6 inch or 8 inch.(15.24cm or 20.32cm) | ||
| Cage Diameter: | Cage diameters range from 4 inch to 8 inch (100mm to 200mm) | ||
| Wire thickness: | Wire thickness ranges are 2mm to 5mm | ||
| Material: | Carbon Stee, Galvanized Steel, Stainless Steel | ||
| Finishment: | Epoxy, PVC vinyl coating | ||
| Packaging: | Cages are packed in custom designed cartons | ||
| Usage: | Dust from factory of mine, wood,Cement, chemical, medicine, dying,Paint, plastic, food & other industry,such as coal fired power stations, Steel Power station, Cement industry, Paper industry & other Industrial Segments. | ||
| Advantages: | 1.no corrosion 2.no damage 3.3-5 times longer life than other bag Cage with steel | ||
| 4. economical maintenance(almost no Maintenance required) | |||
| 5.prominent effect in removing dust from Filter by pulsing 6.easy to install | |||
| 7.no ventury installation required | |||
| Standard Technical Data | |||
| Round Style | Diameter(mm) | Bag Diameter(mm) | Length(mm) |
| 115 | 120 | 2000,2400 2800, | |
| 3200,3600,4000, | |||
| 125 | 130 | 4400,4800,5200, | |
| 147 | 152 | 560,060,007,000 | |
| 195 | 200 | ||
| Flat Style | Perimeter | Bag Perimeter | Length(mm) |
| 800 | 800 | 2000 3000 4000 | |
| 5000 6000 | |||
| 900 | 900 | ||
| Envelope Style | Length Width Thickness | Bag Length Width Thickness | |
| 1500X750x25mm | 1500X750x25mm | ||
Why choose us?
1. Factory Experience: We are an experienced manufacturer with complete production lines and professional production equipment.
2. Quality assurance: We always strictly implement the quality management system, run through every detail of production, and be responsible for the products required by customers.
3. One-stop purchasing: We provide one-stop purchasing of filtration products to meet the different needs of global customers.
4. Other advantages: We respond quickly within 12 hours, provide efficient and high-quality services and competitive prices.

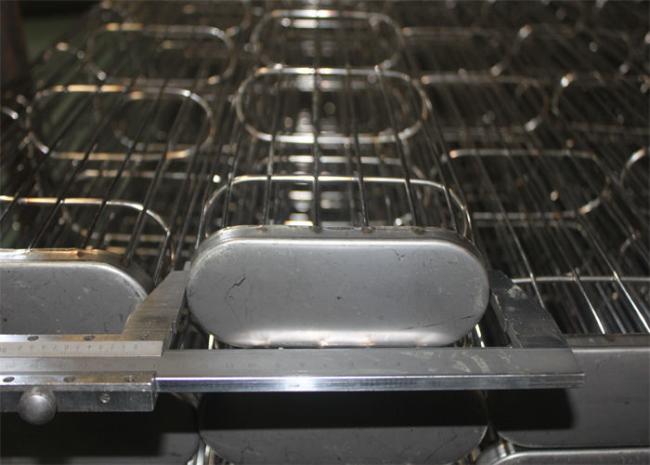

Filter Bag Cage Production Process:

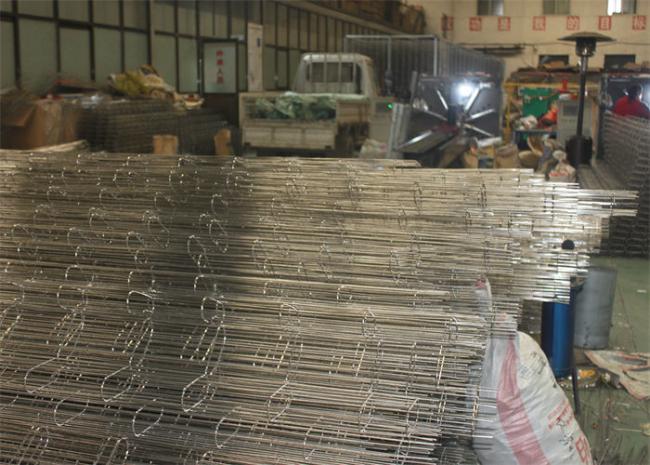

Our factory:
