Cement Plant Filter Bag Cage With Customizable Venturi Round Oval Style
Round And Oval Filter Bag Cage With Venturi For Cement Plant
The function of filter bag cage:
The filter cage is also called the dust bag cage , and the material is divided into silicone, plastic spray, galvanized, stainless steel, etc. The filter cage adopts a circular or elliptical structure. The longitudinal ribs and anti-stretching rings of the bag cage are evenly distributed, and have sufficient strength and rigidity to prevent damage and deformation. And protect the safety of the filter bag mouth when blowing. The filter cage is formed by a professional production line at one time, which not only ensures the straightness and distortion, but also is smooth and burr-free after butt welding, and has sufficient strength to prevent de-soldering, de-soldering, virtual welding and missing welding.
The filter bag cage adopts spraying technology, and the coating is firm, wear-resistant and corrosion-resistant, which avoids the rust of the skeleton surface and the bonding of the filter bag after the dust collector works for a period of time, ensures the smooth bag change, and reduces the damage to the bag during the bag change process.
The 7 major characteristics of the dust collector frame:
1. The dust collector frame adopts galvanized technology, and the coating is stable, which avoids the surface rust and the filter bag bonding after the dust collector works for a period of time, and the bag is changed smoothly. damage.
2. The design structure is strong and the service life is longer.
3. The skeleton of the dust collector adopts a circular structure. The longitudinal ribs and anti-support rings of the bag cage are evenly distributed, and have sufficient strength and rigidity to prevent damage and deformation. Protect the mouth of the filter bag during blowing.
4. The skeleton material of the dust collector is made of 20# carbon steel, which is formed at one time by the skeleton production line, with straightness and distortion, smooth and burr-free after butt welding, and has sufficient strength to prevent de-soldering, de-soldering, virtual welding and missing welding. Phenomenon.
5. Oval, star-shaped and stainless steel cages can be provided. 6, the use of equipment to produce a molding, performance.
7. With the detachable assembly technology, the replacement parts are less and the more convenient."
| Specifications | |||
| Types: | Round Style/Flat Style/Envelope Style/ Special Style | ||
| Number Of Wires: | 8/10/12/16/20/24 vertical wires(usually) | ||
| Ring Space: | Ring spacing standard is 6 inch or 8 inch.(15.24cm or 20.32cm) | ||
| Cage Diameter: | Cage diameters range from 4 inch to 8 inch (100mm to 200mm) | ||

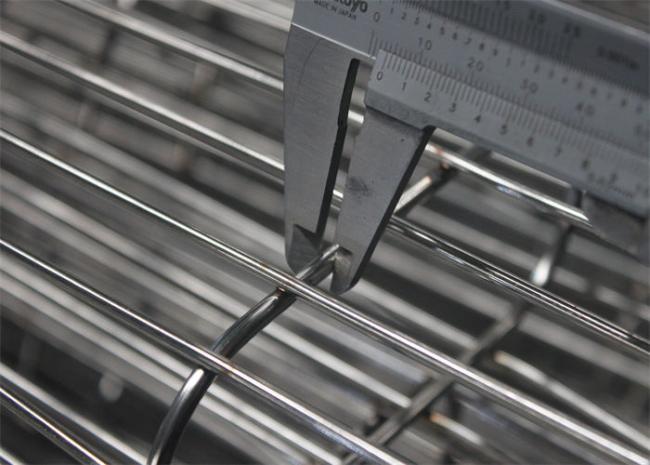

| Wire thickness: | Wire thickness ranges are 2mm to 5mm | ||
| Material: | Carbon Stee, Galvanized Steel, Stainless Steel | ||
| Finishment: | Epoxy, PVC vinyl coating | ||
| Packaging: | Cages are packed in custom designed cartons | ||
| Usage: | Dust from factory of mine, wood,Cement, chemical, medicine, dying,Paint, plastic, food & other industry,such as coal fired power stations, Steel Power station, Cement industry, Paper industry & other Industrial Segments. | ||
| Advantages: | 1.no corrosion 2.no damage 3.3-5 times longer life than other bag Cage with steel | ||
| 4. economical maintenance(almost no Maintenance required) | |||
| 5.prominent effect in removing dust from Filter by pulsing 6.easy to install | |||
| 7.no ventury installation required | |||
| Standard Technical Data | |||
| Round Style | Diameter(mm) | Bag Diameter(mm) | Length(mm) |
| 115 | 120 | 2000,2400 2800, | |
| 3200,3600,4000, | |||
| 125 | 130 | 4400,4800,5200, | |
| 147 | 152 | 560,060,007,000 | |
| 195 | 200 | ||
| Flat Style | Perimeter | Bag Perimeter | Length(mm) |
| 800 | 800 | 2000 3000 4000 | |
| 5000 6000 | |||
| 900 | 900 | ||
| Envelope Style | Length Width Thickness | Bag Length Width Thickness | |
| 1500X750x25mm | 1500X750x25mm | ||
Why choose us?
1. Factory Experience: We are an experienced manufacturer with complete production lines and professional production equipment.
2. Quality assurance: We always strictly implement the quality management system, run through every detail of production, and be responsible for the products required by customers.
3. One-stop purchasing: We provide one-stop purchasing of filtration products to meet the different needs of global customers.
4. Other advantages: We respond quickly within 12 hours, provide efficient and high-quality services and competitive prices.
Filter Bag Cage Production Process:
Our factory:
Our Certificate:
More details, pls feel free to contact us, Thanks
