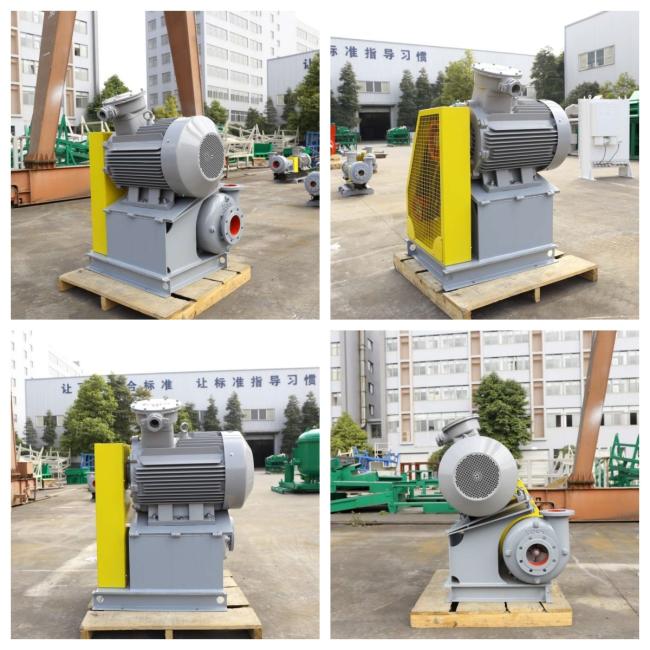

1760rpm 945kg High Shear Pumps Shear Centrifugal Pump For Drilling Additives
High-Shear Pump for Drilling Additives: Reduces Processing Time by 30% | XBSY
Pre-configured with intelligent torque control, the pump dynamically adjusts shear intensity based on real-time fluid viscosity. This reduces energy consumption by 15% compared to fixed-speed pumps and enables seamless PLC integration for remote monitoring, cutting manual intervention by 70% during extended drilling campaigns.Engineered for worldwide deployment with dual-standard 50/60Hz compatibility and metric/imperial connection options. The frequency conversion drive maintains consistent torque output under ±10% voltage fluctuations, ensuring reliable performance in remote oilfields with unstable power grids.
Features
Patented Seal Technology - Service life is 6 times longer than an ordinary mechanical seal. (Patent No. ZL200720079857.2)
High Shearing Efficiency - Special impeller and shear plate are used - shearing efficiency≥95%.
Long Service Life - The impeller and shear plate are made of stainless steel, and the rest of the overflow parts are made of high wear-resistant cast iron.
Patented Appearance - Compact and reasonable structure (Patent No. ZL200730094452.1).
| Model | Flow (m³/h) | Head (m) | Rotational Speed (rpm) | Efficiency (%) | Power (kW) | Weight (kg) | L × W × H (mm) | |
| / | / | / | / | / | Shaft power | Motor Power | / | / |
| WJQ5 × 6J-37 | 120 | 19 | 1760 | 28 | 22.2 | 37 | 945 | 860×1160×1169 |
