ZHAGA Socket Book 18 Receptacle Leadless Version Z-LEX-R Z-LEX-C Road Lighting 24V DC Auxiliary Power
JL-700W2 Zhaga Book-18 Receptacle Leadless Version
The JL-700W2 locking socket meets Zhaga Book-18 standard interface requirements (Z-LEX-R, Z-LEX-C) and is certified for easy development and installation in road lighting, area lighting, and commercial/residential applications including street lights, industrial/mining lights, corridor lights, and wall lights.

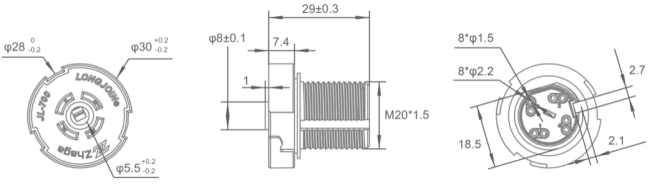

Product Dimensions
Drilling Plan
Product Features
- Standardized interface defined in Zhaga Book-18
- Compact size allowing greater flexibility in luminaire design
- Advanced sealing to achieve IP66 with no mounting screws
- Flexible mounting position - upwards, downwards, and sideways facing
- Integrated single gasket that seals to both luminaire and module, minimizing assembly time
- Multiple models with diameters of 40-80mm available to meet various controller design requirements
Specifications
| Model No. | JL-700W2 |
|---|---|
| Rated Voltage | 24VDC |
| Power Consumption | 1.5A MAX |
| Relative Humidity | 96% |
| Ambient Temperature | -40°C ~ +70°C |
| IP Rating | IP66 |
| Wires | Wire conductor outer diameter ≤1.5mm, wire sheath outer diameter ≤2.2mm, stripping head 7.5-14mm and tinned |
| Certifications | - |
Frequently Asked Questions
What is the ZHAGA Socket Book 18 Receptacle Leadless Version?
It is a lead-free connector socket conforming to Zhaga Book 18 standard, with models Z-LEX-R and Z-LEX-C, specially designed for road lighting intelligent module connection.
What are the advantages of the leadless version design?
Leadless structure avoids traditional wiring troubles, improves installation efficiency, enhances waterproof and anti-loosening performance, and makes the connection more stable and reliable.
What is the purpose of 24V DC auxiliary power supply?
24V DC auxiliary power provides stable and safe low-voltage power for sensors, dimming modules and control units, matching the power demand of intelligent lighting systems.
What are the characteristics of models Z-LEX-R and Z-LEX-C?
They are dedicated Zhaga socket products with high compatibility, compact structure, strong outdoor durability, and suitable for standardized matching of various road lamps.
In which application scenarios is this receptacle mainly used?
It is mainly used in road lighting, intelligent street lamps, urban public lighting and other scenes that need to connect Zhaga standard control modules.
