Zhaga Book 18 Receptacle Spring Needle Plate Road Regional Commercial Residential Lighting 4-Pin Interface
Product Overview
JL-700T Zhaga Book-18 Receptacle Spring needle plate road lighting, regional lighting or commercial and residential lighting
Product Summary
JL-700T locking socket meets the requirements of Zhaga Book-18 standard interface (Z-LEX-R, Z-LEX-C) and has passed relevant certification. This facilitates the development and installation of road lighting, regional lighting, or commercial and residential lighting applications, including street lights, industrial and mining lights, corridor lights, wall lights, and more.

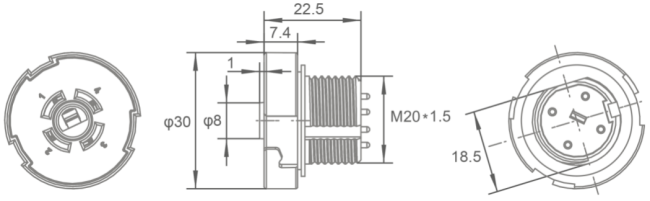

Product Dimensions
Drilling Plan
Product Features
- Standardized interface defined in Zhaga Book-18
- Compact size allowing greater flexibility in luminaire design
- Advanced sealing to achieve IP66 with no mounting screws
- Scalable solution allows use of Ø40mm photocell and Ø80mm LEX-M in a central management system with the same connection interface
- Flexible mounting position, upwards, downwards and sideways facing
- Integrated single gasket that seals to both luminaire and module that minimizes assembling time
Specifications
| Model No. | JL-700T |
|---|---|
| Rated Voltage | 24VDC |
| Power Consumption | 1.5A MAX |
| Related Humidity | 96% |
| Ambient Temperature | -40°C ~ +70°C |
| IP | IP66 |
| Certifications |  |
Frequently Asked Questions
Q1: What is a Zhaga Book 18 Receptacle with Spring Needle Plate and 4-Pin Interface?
A: It is a connector socket that meets Zhaga Book 18 standard, equipped with a spring needle (pogo pin) plate and a 4-pin interface, used for connecting intelligent control modules in various lighting fixtures.
Q2: What are the advantages of the spring needle plate design?
A: The spring needle structure provides stable and reliable elastic contact, good shock resistance, waterproof performance, and supports quick plug-and-play installation.
Q3: What is the role of the 4-pin interface in this receptacle?
A: The 4-pin interface supports power supply and dimming signal transmission, meeting the connection requirements of most intelligent lighting sensors and control modules.
Q4: Why choose Zhaga Book 18 standardized receptacles?
A: Zhaga Book 18 ensures unified mechanical and electrical standards, enabling interchangeability of modules from different brands and convenient system upgrade and maintenance.
Q5: In which lighting scenarios is this receptacle mainly applied?
A: It is widely used in road lighting, regional public lighting, commercial lighting, residential lighting, courtyard and park lighting projects.
