Zhaga Book 18 Socket Receptacle Built In AC-DC Switching Power Supply 24V DC Auxiliary Power
Price:
negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
LongJoin
Product Description
Zhaga Book 18 Socket Receptacle Built In AC-DC Switching Power Supply 24V DC Auxiliary Power
JL-710 Zhaga Book-18 Receptacle Built-in AC-DC Switching Power Supply
The JL-710 product is a socket developed based on the ZHAGA BOOK18 interface size standard. It features a built-in AC-DC switching power supply that outputs 24VDC/5W.
This solution addresses application scenarios where customer drivers lack auxiliary voltage output for ZHAGA light controllers, offering a significantly lower cost alternative to replacing dimming drivers with auxiliary voltage output.

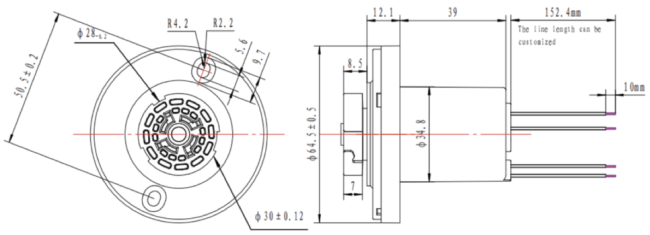

Product Dimensions
Product Features
- Standardized interface defined in Zhaga Book-18
- Support for top/side/bottom installation
- Compact size allowing greater flexibility in luminaire design
- Low cost solution
- 85~305VAC input range
- CLASS II driver
- No-load power consumption ≤0.12W
- Comprehensive protection: overvoltage/undervoltage/overcurrent/short circuit/open circuit/over temperature
- 0~10V dimming transfer interface
- IP66 rating (when used with our light controller)
- RoHS and UL certification compliant
Technical Specifications
| Input Specifications | |
|---|---|
| Input Voltage | Rated: 120-277VAC Limited: 85~305VAC |
| Input Frequency Range | 50/60Hz |
| Maximum Steady-state Input AC Current | 30mA (full load, 220VAC) |
| Cold Start Surge Current (I²t) | 0.009A²s (full load, 220VAC) |
| Efficiency | 80% (full load, 220VAC) |
| Output Specifications | |
| Output Voltage | 24VDC |
| Accuracy | ±2% |
| Rated Current | 0.21A |
| Rated Power | 5W |
| Ripple | 100mVp-p |
| Noise | 150mVp-p |
| Linear Adjustment Rate | ±0.12% |
| Load Adjustment Rate | ±5% |
| Start-up Time | <340mS |
| Start-up Overshoot Voltage | <5% |
| No Load Power Consumption | <0.12W |
| Protection Features | |
| Output Undervoltage Protection | Hiccup mode, automatic recovery after abnormal removal |
| Output Overvoltage Protection | Yes |
| Output Overcurrent Protection | Yes |
| Output Short Circuit Protection | Yes |
| Output Open Circuit Protection | Yes |
| Over Temperature Protection | Yes |
| Environmental Specifications | |
| Operating Temperature | -40℃~70℃ |
| Storage Temperature | -40℃~85℃ |
| Operating Humidity | 5%RH~99%RH |
| Storage Humidity | 5%RH~99%RH |
| Other Specifications | |
| Shell Material | PBT |
| IP Level | IP66 (when used with our light controller) |
| Mechanical Vibration | IEC60068-2-6 |
| Flammability Level | UL94-V0 |
| MTBF | ≥80000h |
| Weight | 85g |
| Certification |  |
* Real rated voltage range: 100~277VAC
* Real input frequency range: 47~63Hz
* Real input frequency range: 47~63Hz
Frequently Asked Questions
Q1: What is a Zhaga Book 18 Socket Receptacle with built-in AC-DC power supply?
A: It is a Zhaga Book 18 compliant interface socket with an integrated AC-DC switching power supply, which converts mains input into stable 24V DC auxiliary power for intelligent lighting modules.
Q2: What is the benefit of a built-in AC-DC switching power supply?
A: It eliminates the need for an external power adapter, simplifies wiring and installation, improves integration, and ensures more stable and reliable power output.
Q3: What is 24V DC auxiliary power used for?
A: It provides safe and stable low-voltage power for lighting sensors, dimming modules, communication units and other intelligent accessories on smart street lights.
Q4: What are the advantages of using the Zhaga Book 18 standard?
A: It ensures universal mechanical and electrical interface compatibility, supports plug-and-play of modules from different brands, and facilitates later upgrade and maintenance.
Q5: In which scenarios is this receptacle mainly applied?
A: It is widely used in road lighting, smart street lamps, urban public lighting, park lighting and commercial intelligent lighting systems.
