Smart IoT Dimming Photocontrol Zigbee Master With LTE Gateway Collector GPS/GNSS Positioning
Price:
negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
LongJoin
Product Description
Smart IoT Dimming Photocontrol Zigbee Master With LTE Gateway Collector GPS/GNSS Positioning
JL-246CG Smart IoT Dimming Photocontrol Zigbee-Master With LTE Gateway / Collector
This photocontrol can apply to independent control applications or system control applications, such as roads, exhibitions, schools, shopping malls, supermarkets, factories, parks and more.
This product includes a Zigbee communication module as well as an LTE communication module to allow its Zigbee group to be remotely managed with a smart IoT management system.

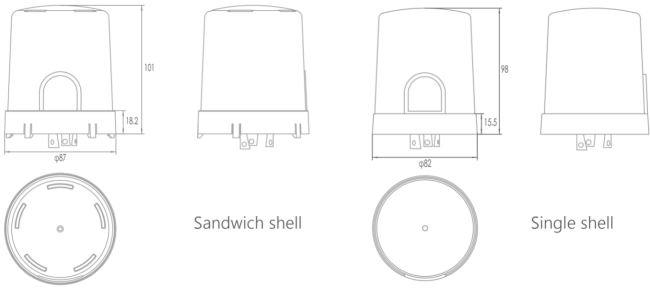

Product Size
Product Features
- ANSI C136.41 Twist-lock
- 0~10V Dimming
- Surge protection level: 6KV/3KA differential mode
- Sandwich cover for Long Life
- Multi-Volts Application
- IR-filtered Phototransistor
Specifications
| Model No. | JL-246CG |
|---|---|
| Rated Voltage | 120~277VAC |
| Applicable Voltage Range | 105~305VAC |
| Rated Frequency | 50/60Hz |
| Dimming Output | 0~10VDC |
| Wireless Communication(up) | LTE-Cat1 |
| Wireless Communication(down) | Zigbee |
| Spectral Acquisition Range | 350~1100nm; Peak wavelength 590nm |
| Rated Loading | 1000W Tungsten,1000VA Ballast,8A@120VAC/5A@208-277VAC e-Ballast |
| Operate Levels | Turn-On＜100Lx,Turn-Off＞150Lx / per client request |
| Power Consumption | 1.2W static,10W dynamic |
| Ambient Temperature | -40℃~70℃ |
| Related Humidity | 96% |
| Fail Mode | Fail-On |
| Shell material | PC+PC |
| High protection | Double Shell |
| Surge protection level | 6KV/3KA differential mode |
| IP level | Default IP66 |
| Factory Settings | Remote control+Adaptive mode |
| FCC | ● |
| Certifications |  |
| Criterion | IEC61000-4-5; IEC61000-4-2; IEC61000-4-3, IEC61000-4-6; GB/T 17743-2017; IEC61000-4-4; IEC61000-4-11; IEC61000-3-2; GB/T2423.10-2008; UL94-V0; |
Frequently Asked Questions
Q1: What is a Smart IoT Dimming Photocontrol Zigbee Master with LTE Gateway Collector?
A: It is an intelligent IoT dimming photocontrol that acts as a Zigbee master node, working with an LTE gateway collector to realize wireless networking and remote management for lighting systems.
Q2: What role does the Zigbee master play in this smart photocontrol system?
A: The Zigbee master serves as the core coordinator, establishing a local wireless network to connect and manage multiple dimming photocontrols, ensuring stable and low-power communication.
Q3: What is the function of the LTE gateway collector in this solution?
A: The LTE gateway collector uploads data from the Zigbee local network to the cloud platform via cellular network, supporting remote monitoring, control and data statistics of the entire lighting system.
Q4: What advantages does this Zigbee + LTE hybrid networking bring to smart lighting?
A: It combines low-cost, large-capacity Zigbee local networking with wide-coverage LTE remote transmission, achieving stable, scalable and easy-to-deploy smart lighting control.
Q5: What lighting scenarios is this Zigbee master IoT dimming system suitable for?
A: It is widely used in street lighting, residential areas, parks, campuses and industrial zones that require centralized dimming control and unified cloud management.
