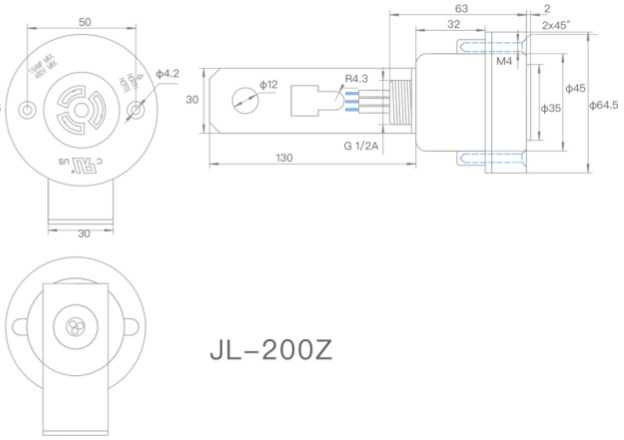

0~480V Wide Voltage Photocontrol Receptacle NEMA 3P PBT Material Or Bakelite Material
All JL-200Z photocontrol receptacles are designed for lanterns intended to accept a twist-lock photocontrol for power management.
- PBT material or bakelite material options
- Silicone gasket for enhanced waterproof protection
| Model No. | JL-200Z |
|---|---|
| Power Volt Range | 0~480VAC |
| Rated Frequency | 50/60Hz |
| Load Rating | 15 A |
| Ambient Temperature | -40°C ~ +70°C |
| Related Humidity | 96% |
| Lead Length | 6" min |
| Lead | AWG#12/14 AWG#16/18(non-UL) |
| Cable Line (IP65) | Optional |
| Certifications |  |
It is a NEMA 3-pin socket for photosensitive controllers, supporting a wide voltage range of 0-480V, suitable for various high and low voltage outdoor lighting control systems.
It adopts the standard NEMA 3P interface, which has good compatibility and can match most conventional photocontrol devices on the market.
This receptacle offers two material options: PBT material and bakelite material, allowing users to choose according to project requirements and environmental conditions.
PBT features high toughness, good insulation and strong weather resistance; bakelite has high heat resistance, flame retardancy and excellent mechanical strength, both suitable for long-term outdoor use.
It is mainly used in road lighting, street lamps, industrial and mining lighting, and public outdoor lighting with different voltage systems and high stability requirements.
