NEMA Socket Compact Photocontrol Receptacle 3P Microminiature ANSI C136.10 Requirements CE Marking
Price:
negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
LongJoin
Product Description
NEMA Socket Compact Photocontrol Receptacle 3P Microminiature ANSI C136.10 Requirements CE Marking
JL-220 Compact Photocontrol Receptacle
This 3P microminiature photocontrol receptacle is specially designed for lanterns die-casted with a rising platform intended to accept a twist-lock photocontrol for power management.
It offers 360° rotation limiting feature to conform ANSI C136.10 requirements, with die-cast support for enhanced durability.

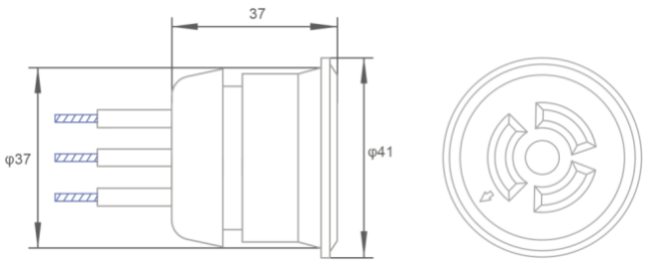

Product Dimensions
Technical Specifications
| Model No. | JL-220-14/16 | JL-220-18 |
|---|---|---|
| Applicable Volt Range | 0~480VAC | |
| Rated Frequency | 50/60Hz | |
| Load Rating | 15A | 12A |
| Lead | 16AWG/14AWG 6" min | 18AWG 6" min |
| Ambient Temperature | -40°C ~ +70°C | |
| Related Humidity | 96% | |
| Certifications |  |
|
Frequently Asked Questions
What is the NEMA Socket Compact Photocontrol Receptacle?
It is a compact socket designed for photocontrol sensors, compliant with NEMA standards, used to connect light-sensing control devices for outdoor lighting fixtures.
What does 3P microminiature design mean for this product?
3P stands for 3-pin interface, and microminiature means an ultra-small size that saves installation space and fits various compact lighting fixtures.
Why does this product meet ANSI C136.10 requirements?
Compliance with ANSI C136.10 ensures standardized interface size, electrical performance and safety, ensuring high compatibility and reliability in outdoor lighting systems.
What is the role of CE marking on this receptacle?
CE marking proves that the product meets EU safety, health and environmental protection standards, allowing it to be sold and used in the European Economic Area.
What are the typical applications of this compact NEMA receptacle?
It is widely used in road lighting, street lamps, courtyard lights, park lighting and residential lighting that supports miniature photosensitive controllers.
