Fixed Twist Lock Dimmable Receptacle 5P 7P Curved Contact Plate 5/7 Pin Options
All JL-240XH series photocontrol receptacles are designed for lanterns intended to have an ANSI C136.10 receptacle to fit a twist-lock photocontrol. This series conforms to the newly published ANSI C136.41 standard to allow LED lamp multi-control through the receptacle.
This series offers 2 or 4 gold-plated low voltage pads on the top surface to fit photocontrols with ANSI C136.41 conforming spring contacts, and provides 2 or 4 wiring leads at the rear side for signal connection.
- Glass-Fiber strengthened PBT construction
- Gilded pads made from phosphor bronze nickel plated and gilded over 0.7μm
- Gold plating per ASTM B 488 standard
- Silicone gasket included
- Gold pad narrowed for competitive cost

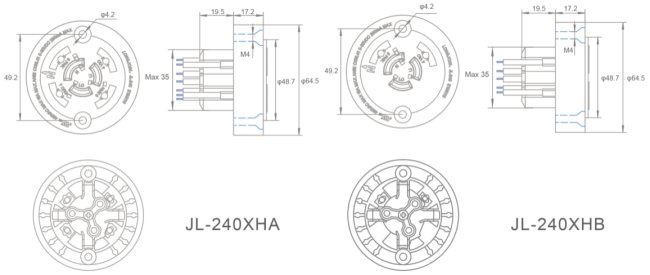

| Model No. | JL-240XH |
|---|---|
| Applicable Volt Range | 0~480VAC |
| Rated Frequency | 50/60Hz |
| Load Rating | 15A |
| Signal Control | 0-30 VDC, 250 mA Max |
| Lead | 16AWG/14AWG 6" min |
| Ambient Temperature | -40°C ~ +70°C |
| Related Humidity | 96% |
| Outdoor Wiring Cable | ● |
| Certifications | ANSI C136.41-2013  |
It is a dimming receptacle with a fixed twist-lock structure, used for stable connection and dimming signal transmission in outdoor lighting control systems.
It provides 5-pin (5P) and 7-pin (7P) configurations, which can be selected according to different dimming protocols and wiring requirements.
The curved contact plate provides better contact stability, stronger conductivity, and is resistant to loosening or sparking, ensuring long-term reliable operation outdoors.
The fixed twist lock ensures firm connection, providing vibration resistance and anti-falling protection, making the product suitable for long-term outdoor use in street lamps and road lighting.
It is mainly used in smart street lamps, road lighting, landscape lighting, and industrial outdoor lighting that requires stable dimming control.
