Product Description
Photocontrol Receptacle 7P North Orientation Free ANSI C136.41 Receptacle To Fit A Twist Lock Photocontrol
Product Overview
JL-250T Photocontrol Receptacle 7P North-Orientation-Free ANSI C136.41 receptacle designed to fit twist-lock photocontrols for LED lamp multi-control functionality.
Features 2 or 4 gold-plated low voltage pads on the top surface to accommodate ANSI C136.41 conforming spring contacts, with 2 or 4 wiring leads at the rear for signal connection. Includes 360° rotation limiting to meet ANSI C136.41 requirements.

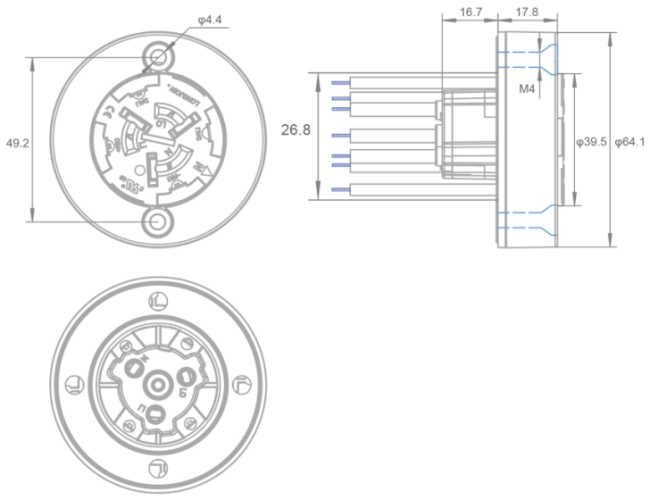

Product Size
Product Features
- Body constructed from polybutylene terephthalate
- Contacts made from phosphor bronze
- Gold pads feature nickel-plated phosphor bronze with gold plating per ASTM B 488
- Includes silicone gasket
- Rotatable via central slot adjustment with screwdriver
- Screw can be loosened to find north orientation, facilitating light controller installation and extending photocontrol service life
Specifications
| Model No. | JL-250T |
| Applicable Volt Range | 0~480VAC |
| Rated Frequency | 50/60Hz |
| Load Rating | 15A |
| Signal Control | 0-30 VDC, 1500 mA Max |
| Lead | 16AWG/14AWG 6" min |
| Ambient Temperature | -40°C ~ +70°C |
| Related Humidity | 96% |
| Certifications | ANSI C136.41-2013  |
Frequently Asked Questions
Q1: What is the Photocontrol Receptacle 7P North Orientation Free?
A: It is a 7-pin socket for photocontrol devices with a north orientation-free design, which eliminates the need for strict north-facing installation and brings great convenience to construction.
Q2: What standard does this receptacle comply with?
A: This receptacle fully meets ANSI C136.41 standards, ensuring unified interface dimensions, electrical performance and compatibility in the lighting control industry.
Q3: What is the benefit of the north orientation free design?
A: It allows the socket to be installed at any angle without adjusting the direction toward north, improving installation efficiency and adapting to different street lamp structures.
Q4: What kind of photocontrol devices is this receptacle suitable for?
A: It is specially designed to fit twist-lock photocontrols, providing a secure, locking connection for stable operation in outdoor environments.
Q5: In which lighting applications is this receptacle mainly used?
A: It is widely used in road lighting, street lamps, park lighting and outdoor public lighting systems that require twist-lock photocontrols.
