Built In Surge Protection Adapter NEMA Socket 7P 347VAC And 480VAC Versions
JL-250F Built in Surge Protection Adapter Socket
The JL-250F is designed for outdoor lamps and installed between the traditional NEMA socket and the light controller. It enables rapid transformation to improve the surge protection capability of NEMA interface lamps. The SPD inside lamps can be replaced by JL-250F, providing more convenient installation, maintenance and replacement while effectively reducing operation and maintenance costs.
The product features built-in surge differential mode + surge common mode protection, significantly improving the light controller's performance in complex electromagnetic interference environments. The combination design of temperature fuse and MOV+GDT prevents heating deterioration caused by MOV aging and over-energy. The center bottom ground hole design provides grounding for the lamp controller and enhances common mode suppression capability.

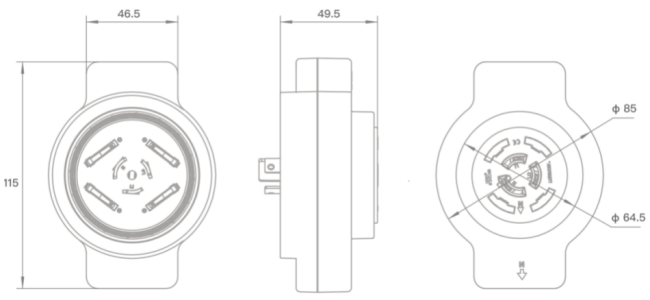

Product Dimensions
Product Features
- Product certification: ANSI C136.41 UL 1449 UL 773 ROHS CB CE UKCA
- Component certification: UL CUL TUV VDE PSE CQC ROHS REACH
- 20KV/10KA, 10KV/5KA different protection levels available
- Differential mode + common mode protection (L-N, L-G, N-G)
- 1.2/50μs & 8/20μs combined wave performance tests
- Center ground hole design
- Diagnostic LED indicator
- GDT+MOV technology prevents MOV aging from forming leakage current, ensuring longer life
- Built-in temperature fuse with over-temperature protection
- High strength PC material construction
- Gold-plated signal terminals in phosphor bronze nickel plating (ASTM B 488 compliant)
- Copper plug components
- Flat design for reduced wind resistance
- Ergonomic mechanical handshake design for easier rotation
- 347VAC and 480VAC versions available
Technical Specifications
| Specification | 250F15CL | 250F15C | 250F15DL | 250F15D | 250F21CL | 250F21C | 250F21DL | 250F21D |
|---|---|---|---|---|---|---|---|---|
| Rated operating voltage | 120~277VAC | |||||||
| Max operating voltage | 320VAC | |||||||
| Rated operating frequency | 50/60Hz | |||||||
| Rated surge voltage | 10KV | 10KV | 20KV | 20KV | 10KV | 10KV | 20KV | 20KV |
| Rated surge current | 5KA | 5KA | 10KA | 10KA | 5KA | 5KA | 10KA | 10KA |
| Max surge current | 10KA | 10KA | 20KA | 20KA | 10KA | 10KA | 20KA | 20KA |
| Max energy | 300J | 300J | 405J | 405J | 300J | 300J | 405J | 405J |
| Clamping voltage | 1200V | 1150V | 1200V | 1150V | 1150V | 1100V | 1150V | 1100V |
| L-N surge protection | √ | |||||||
| L-G,N-G surge protection | √ | √ | √ | √ | ||||
| Ground hole | √ | √ | √ | √ | ||||
| Leakage current suppression (GDT) | √ | √ | √ | √ | ||||
| Over-temperature protection | √ | |||||||
| Diagnostic LED | √ | |||||||
| AC line rated load | 15A | |||||||
| Control line rated load | 0-30 VDC, 1500mA | |||||||
| Operating temperature | -40°C ~ +70°C | |||||||
| Operating humidity | HR96% | |||||||
| Lifetime | long-life | Normal | long-life | Normal | long-life | Normal | long-life | Normal |
| Certification | ANSI C136.41-2013, UL 1449, UL 773 | |||||||
Frequently Asked Questions
Q1: What is the Built In Surge Protection Adapter NEMA Socket?
A: It is a NEMA standard socket with built-in surge protection function, used for outdoor lighting control systems to provide stable power and signal connection for dimming and photosensitive control modules.
Q2: What is the role of the built-in surge protection design?
A: Built-in surge protection effectively suppresses instantaneous overvoltage and surge interference, protecting lighting control modules and driver circuits from damage while extending equipment service life.
Q3: What pin specification does this NEMA socket adopt?
A: This product adopts a 7-pin (7P) interface design, meeting transmission needs for high voltage, power supply and multi-channel dimming signals simultaneously.
Q4: What voltage versions are available for this product?
A: It provides two voltage versions: 347VAC and 480VAC, suitable for medium and high voltage outdoor lighting systems in different regions and projects.
Q5: In which scenarios is this surge protection NEMA socket mainly applied?
A: It is mainly used in road lighting, intelligent street lamps, industrial and mining lighting, and outdoor public lighting with high voltage and high surge risk.
