This JL-260D series photocontrol receptacle is designed for lanterns intended to have an ANSI C136.10 receptacle to fit a twist-lock photocontrol. It conforms to the newly published ANSI C136.41 standard to allow LED lamp multi-control through the receptacle.

The receptacle offers 2 or 4 gold-plated low voltage pads on the top surface to fit photocontrols with ANSI C136.41 conforming spring contacts, and provides 2 or 4 wiring leads at the rear side for signal connection.

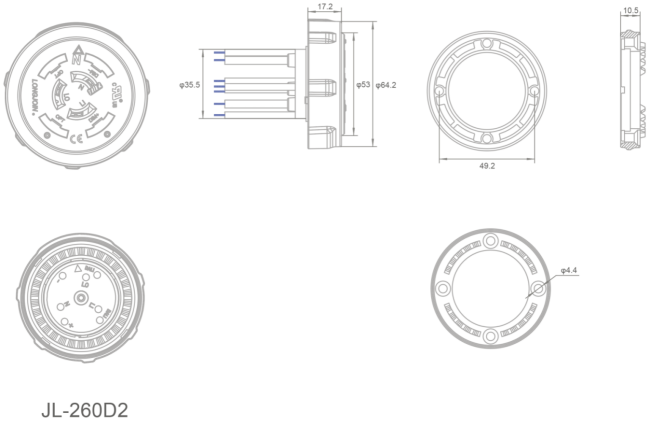

Key features include waterproof self-rotation with 360° limited rotation and a super compressed height size. The D1 type features an integral structure with external thread installation, while the D2 type is a split structure for internal thread installation.

• Body made from durable polycarbonate material
• Contacts constructed from phosphor bronze for optimal conductivity
• Gold pads made from nickel plated phosphor bronze with gold plating per ASTM B 488 standard
• High visibility North pointer for proper orientation
