PECU UK Version Steeple Top Cover Street Garden Passage Doorway Lighting
Price:
negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
LongJoin
Product Description
PECU UK Version Steeple Top Cover Street Garden Passage Doorway Lighting
Product Overview
The PECU JL-214B is designed to automatically control street lighting, garden lighting, passage lighting, and doorway lighting based on ambient natural light levels.
This product features electronic circuits with a phototransistor sensor and includes a built-in surge arrester (MOV). The JL-214B model specifically incorporates a face-top sensor designed for customer applications per BS5972 standards.
A preset 5-30 second time-delay prevents redundant operation caused by spotlights or lightning during nighttime. The product provides twist-lock terminals meeting BS5972 requirements and conforms to CE(UKCA) and RoHS directives.

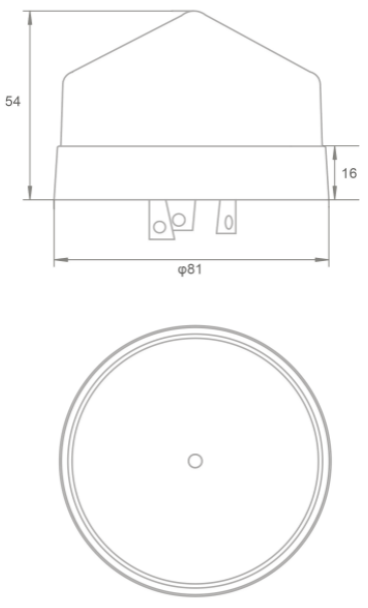

Product Dimensions
Product Features
- BS5972 Compliant
- ANSI C136.10 Twist-lock Compatible
- 5-30 Second Time Delay
- Multi-Voltage Available
- Built-in Surge Arrester
- Phototransistor Sensor
- Compatible with BS5972 Twist-lock Receptacle
Technical Specifications
| Model No. | JL-214B |
|---|---|
| Rated Voltage | 220~240VAC |
| Rated Frequency | 50/60Hz |
| Rated Loading | 1000W Tungsten, 1800VA Ballast |
| Power Consumption | 8W@240VAC |
| Operate Levels | On＜20Lx, off＞80Lx |
| Ambient Temperature | -40℃ ~ +70℃ |
| Related Humidity | 96% |
| Fail Mode | Fail-Off |
| Shell Material | PC |
| IP Level | IP54 |
| Certifications |  |
Frequently Asked Questions
What is the PECU UK Version lighting suitable for?
It is designed for street, garden, passage and doorway lighting applications.
What style is the top structure of this lighting fixture?
It adopts a steeple top cover design with classic and decorative appearance.
Is this lighting product suitable for the UK market?
Yes, it is the UK version, compliant with UK usage environment and standards.
What are the main features of the steeple top cover design?
The steeple top cover provides protection, rain resistance and enhances decorative effect for outdoor areas.
What installation scenarios are applicable for this PECU light?
It is widely used in outdoor streets, gardens, corridors, doorways and landscape areas.
