OTA Firmware Update LTE-Cat.1 Built In SIM Card 9A Load ESIM Oads Parks Campuses Shopping Malls Supermarkets Factories Parks
JL-245CC is a NEMA single light controller developed based on 4G (LTE Cat.1) communication technology, enabling remote control, real-time configuration, and monitoring. With its compact size and IP66 protection rating, this controller is ideal for various lighting applications including roads, parks, campuses, shopping malls, supermarkets, and industrial facilities.
- ANSI C136.41 Twist-lock compatibility
- 85~305VAC wide power supply range
- 9A maximum load capacity
- Zero crossing switch with >60,000 switching life
- 6KV/3KA surge protection
- Under-voltage/over-voltage/over-current fault self-test reporting and protection
- CLASS 2.0 metering accuracy for voltage, current, power, power factor, and cumulative energy consumption
- Built-in light sensor
- Double shell design for enhanced structural reliability

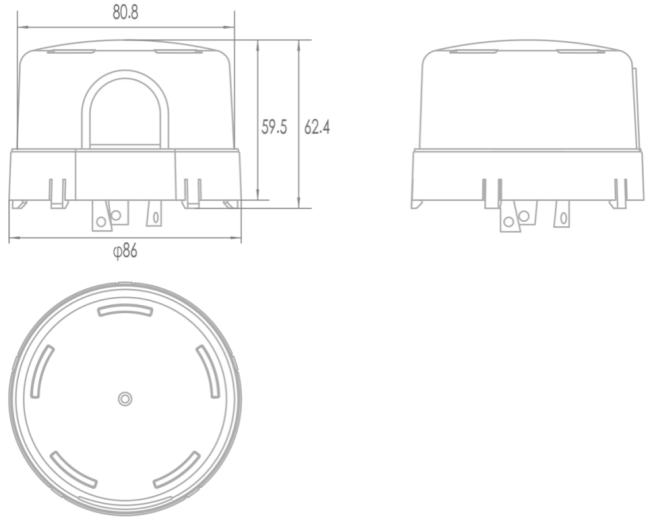

- Compact dimensions: Φ86×62.4mm
- eSIM technology (external pluggable SIM optional)
- IP66 rated for outdoor and industrial environments
| Power Supply | Rated: 100~277VAC; 50/60Hz Limited: 85~305VAC; 47~63Hz |
|---|---|
| Dimming Output | 0-10VDC |
| Wireless Communication | 4G (LTE Cat.1) Bands: LTE-FDD: B1/B3/B5/B8 LTE-TDD: B34/B38/B39/B40/B41 |
| Load Capacity | ≤9A |
| Power Consumption | 1.2W static, 2.4W dynamic |
| Operating Temperature | -35°C to 85°C |
| Operating Humidity | 5%RH to 99%RH |
| IP Rating | IP66 |
| Compliance Standards | IEC61000-4-5; IEC61000-4-2; IEC61000-4-3; IEC61000-4-6; GB/T 17743-2017; IEC61000-4-4; IEC61000-4-11; IEC61000-3-2; GB/T2423.10-2008; UL94-V0 |
| Dimensions | Φ86×62.4mm |
| Weight | 210g |
This intelligent lighting control device supports OTA firmware updates and features LTE-Cat.1 communication with built-in SIM card technology. Rated for 9A load capacity, it is widely used in parks, campuses, shopping malls, supermarkets, and industrial facilities.
OTA updates enable remote, wireless firmware upgrades without requiring on-site maintenance. This ensures optimal device performance, functional enhancements, and long-term system stability.
The built-in eSIM provides superior stability, enhanced waterproof and dustproof performance, eliminates loose contact issues, and simplifies installation in demanding outdoor and industrial environments.
The 9A load rating indicates the device can safely drive high-power lighting loads, supporting various street lights, floodlights, and area lighting systems in large-scale outdoor and commercial applications.
This controller is primarily used for smart lighting management in parks, campuses, shopping malls, supermarkets, factories, industrial zones, and other large-scale public and commercial areas.
