Smart IoT Dimming Photocontrol Zigbee End Device Roads Exhibitions Schools OTA Firmware Update
Price:
negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
LongJoin
Product Description
Smart IoT Dimming Photocontrol Zigbee End Device
Product Overview
The JL-245CZ Smart IoT Dimming Photocontrol is designed for both independent and system control applications in various settings including roads, exhibitions, schools, shopping malls, supermarkets, factories, and parks. This advanced photocontrol features a Zigbee communication module for integration with smart IoT management systems.

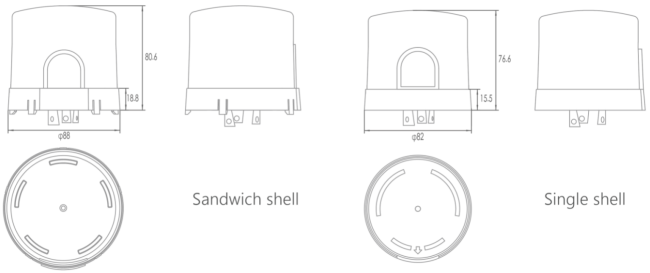

Product Dimensions
Product Features
- ANSI C136.41 Twist-lock compatibility
- 0~10V Dimming capability
- Surge protection level: 6KV/3KA differential mode
- Sandwich cover design for extended lifespan
- Multi-voltage application support
- IR-filtered Phototransistor
Technical Specifications
| Model No. | JL-245CZ |
| Rated Voltage | 120~277VAC |
| Applicable Voltage Range | 105~305VAC |
| Rated Frequency | 50/60Hz |
| Dimming Output | 0~10VDC |
| Wireless Communication | Zigbee |
| Spectral Acquisition Range | 350~1100nm; Peak wavelength 590nm |
| Rated Loading | 1000W Tungsten, 1000VA Ballast, 8A@120VAC/5A@208-277VAC e-Ballast |
| Operate Levels | Turn-On <100Lx, Turn-Off >150Lx / per client request |
| Power Consumption | 1.2W static, 2.4W dynamic |
| Ambient Temperature | -40℃~70℃ |
| Relative Humidity | 96% |
| Fail Mode | Fail-On |
| Shell Material | PC |
| High Protection | Double Shell |
| Surge Protection Level | 6KV/3KA differential mode |
| IP Level | Default IP66 |
| Factory Settings | Remote control + Adaptive mode |
| Certifications |  |
| Criterion | IEC61000-4-5; IEC61000-4-2; IEC61000-4-3; IEC61000-4-6; GB/T 17743-2017; IEC61000-4-4; IEC61000-4-11; IEC61000-3-2; GB/T2423.10-2008; UL94-V0 |
Frequently Asked Questions
Q1: What is a Smart IoT Dimming Photocontrol as Zigbee End Device with OTA firmware update?
A: This is a smart dimming photocontrol that functions as a Zigbee end device, supports Over-The-Air firmware updates, and is widely used for lighting control in roads, exhibitions, and schools.
Q2: What is a Zigbee End Device in this smart photocontrol system?
A: As a Zigbee end device, it connects to a Zigbee coordinator or gateway to form a local wireless network, enabling low-power communication and centralized lighting control.
Q3: What are the benefits of OTA firmware update for this Zigbee photocontrol?
A: OTA updates allow remote wireless firmware upgrades without disassembly or on-site maintenance, improving functionality, fixing bugs, and extending product lifecycle.
Q4: How does the smart dimming function improve lighting efficiency?
A: It automatically adjusts light brightness based on ambient light conditions or remote commands, achieving energy savings, precise dimming control, and optimized lighting effects.
Q5: In which scenarios is this Zigbee end device photocontrol mainly applied?
A: It is primarily used in road lighting, school campus lighting, exhibition hall lighting, and other public area lighting systems with Zigbee smart networking capabilities.
