Micro Buckle Type Direct Wire In Thermal Photocontrol Miniature Silicon Phototransistor
The photocontrol JL-102 is designed to automatically control passage lighting and doorway lighting based on ambient lighting levels. This product complies with the Standard for Non-industrial Photocontrol for Lighting Control UL773A.
- Time Delay: 20~120 seconds
- Ambient Temperature: -20℃ to +70℃
- PET enclosure (UL94 V-0 rated)
- Sensor separated for flexible allocations inside fixture (JL-102AR model only)

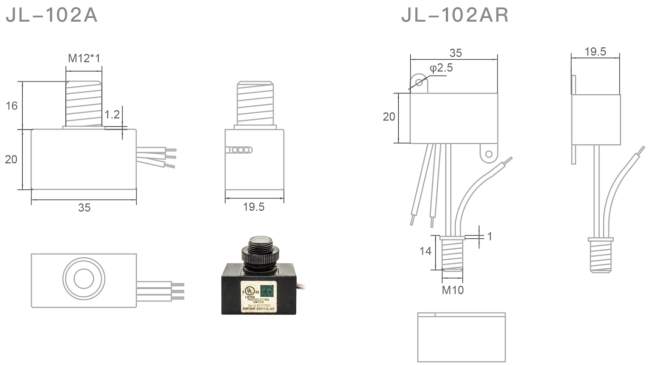

| Model No. | JL-102A / JL-102AR |
|---|---|
| Rated Voltage | 120VAC |
| Rated Frequency | 50/60Hz |
| Rated Loading | 600W Tungsten, 480VA Ballast, 2A e-Ballast |
| Power Consumption | 1.5W Max. |
| Operate Levels | 10~20Lx Turn-On / 30~60Lx Turn-Off |
| Ambient Temperature | -20℃ ~ +70℃ |
| Related Humidity | 96% |
| Fail Mode | Fail-On |
| Lead Wire | AWG#18, AWM1332 |
| Rainproof Cap | Optional |
| Certifications |  |
It is a compact micro buckle thermal photocontrol with direct wire-in installation, equipped with a miniature silicon phototransistor for high-precision light sensing.
The micro buckle design features a small size, firm installation, space-saving, and easy assembly in compact lighting fixtures.
It provides high sensitivity, fast response, stable performance and strong anti-interference ability, ensuring accurate dusk-to-dawn control.
Yes, it adopts a direct wire-in structure for safe, stable and convenient hardwiring in various small lighting fixtures.
It is mainly used in small outdoor lights, doorway lamps, passage lighting, wall lamps and other compact fixtures requiring miniaturized light control.
