Direct Wire In Thermal Photocontrol Aluminum Die Cast Enclosure Residential Street Lighting
Price:
negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
LongJoin
Product Description
Direct Wire In Thermal Photocontrol Aluminum Die Cast Enclosure Residential Street Lighting
JL-116 Direct Wire-in Thermal Photocontrol
The JL-116 photocontrol is designed for automatic control of passage lighting and doorway lighting based on ambient light levels. Featuring an electrical heating structure with time delay functionality, it prevents redundant switching caused by spotlights or lightning during nighttime operation.
A built-in temperature compensator ensures consistent performance across varying ambient temperatures. The design allows for convenient directional adjustment when used with an additional swivel accessory.

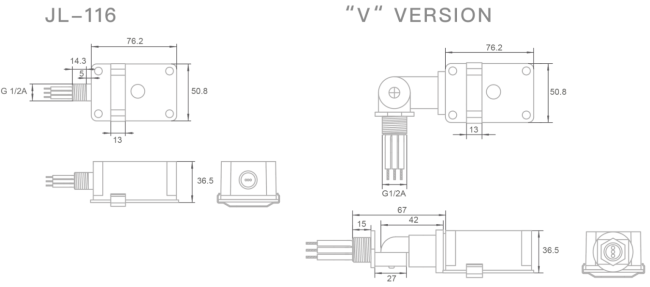

Product Dimensions
Product Features
- Time Delay: 30~120 seconds
- Ambient Temperature Range: -40℃ to +70℃
- Additional Swivel Available for directional adjustment
- Screw Thread: NPT 1/2" with Zinc Alloy Nut
- Aluminum Die-cast Enclosure
- Heavy Duty Capacity: up to 2000VA
Technical Specifications
| Model No. | JL-116A(*V) | JL-116B(*V) | JL-116C(*V) | JL-116D(*V) |
|---|---|---|---|---|
| Rated Voltage | 120VAC | 220~240VAC | 208~277VAC | 277VAC |
| Applicable Voltage Range | -- | 200~305VAC | -- | -- |
| Rated Frequency | 50/60Hz | |||
| Rated Loading | 2000W Tungsten, 2000VA Ballast | |||
| Power Consumption | 1.5W Max. | |||
| Operate Levels | 10~20Lx Turn-On / 30~60Lx Turn-Off | |||
| Ambient Temperature | -40℃ ~ +70℃ | |||
| Related Humidity | 96% | |||
| Fail Mode | Fail-On | |||
| Lead Wire | AWG#16, AWM3321 4" min | |||
| Certifications |  |
|||
Frequently Asked Questions
What is a direct wire in thermal photocontrol with aluminum die cast enclosure for residential street lighting?
This thermal-type photocontrol features a rugged aluminum die cast housing designed for direct wire-in installation, primarily used for automatic control of residential street lighting systems.
What are the advantages of the aluminum die cast enclosure for this thermal photocontrol?
The aluminum die cast enclosure provides excellent heat dissipation, high durability, and waterproof/corrosion resistance, ensuring stable performance in demanding outdoor environments.
How is this thermal photocontrol installed?
The direct wire-in design allows for safe and secure hardwiring into lighting fixtures, making installation straightforward and suitable for outdoor street lighting applications.
What is the working principle of this thermal photocontrol for residential street lighting?
It automatically senses ambient light levels to turn street lights on at dusk and off at dawn, providing energy-saving, maintenance-free automatic operation.
In which applications is this direct wire thermal photocontrol mainly used?
Primarily used in residential street lighting, community lighting, courtyard lamps, sidewalk lights, and other outdoor lighting applications requiring long-term reliable operation.
