Wide Voltage Direct Wire In Electronic Photocontrol Garden Lighting Security & Perimeter Lighting
Price:
negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
LongJoin
Product Description
Wide Voltage Direct Wire In Electronic Photocontrol Garden Lighting Security & Perimeter Lighting
JL-401E Wide Voltage Direct Wire-In Electronic Photocontrol
The JL-401E photoelectric switch is designed to automatically control street lighting, garden lighting, passage lighting, and doorway lighting based on ambient natural lighting levels. A preset 3-10 second time-delay prevents mis-operation caused by headlights or lightning during nighttime operation.

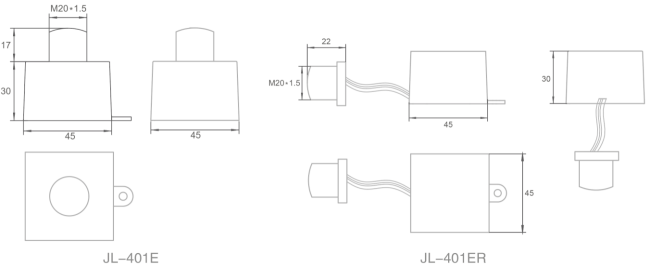

Product Dimensions
Product Features
- Sensor separated for flexible allocations inside fixture (JL-401ER only)
- 3-10 second time-delay prevents redundant turning-off caused by headlights or lightning
- Waterproof lens for reliable outdoor operation
Technical Specifications
| Model No. | JL-401E | JL-401ER |
|---|---|---|
| Rated Voltage | 347VAC | |
| Available Voltage Range | 120-380VAC | |
| Rated Frequency | 50/60Hz | |
| Rated Loading | 1800W Tungsten, 1800VA Ballast, 5A E-Ballast | |
| Power Consumption | 0.5W max. | |
| Operate Level | 10-30Lx On; 30-60Lx Off | |
| Fail Mode | Fail-On | |
| Ambient Temperature | -40℃ to +70℃ | |
| Relative Humidity | 96% | |
| IP Grade | IP65/IP54 | |
| Leads Length | AWG#16, AWM1015 | |
| Sensor Dimensions | 21 x 25mm Dia. [20mm Dia. mounting Hole] | |
| Sensor Type | IR-Filtered Phototransistor | |
| Surge Protection | 40J/1750A (MOV) | |
| Certifications |  |
|
Frequently Asked Questions
What is a wide voltage direct wire in electronic photocontrol for garden and security lighting?
It is an electronic light control device supporting wide voltage input, designed for direct wire-in installation, mainly used for garden lighting, security lighting and perimeter lighting automation.
What is the benefit of wide voltage design in this electronic photocontrol?
Wide voltage compatibility allows the photocontrol to work stably under different voltage conditions, improving adaptability in various power supply environments and avoiding damage from voltage fluctuations.
Is this electronic photocontrol suitable for direct wire installation?
Yes, it adopts a direct wire-in structure for simple and firm hardwiring, enabling convenient installation in various outdoor lighting fixtures.
What lighting applications is this wide voltage photocontrol mainly used for?
It is mainly applied in garden lighting, security lighting, perimeter lighting, wall packs and outdoor area lighting that requires reliable automatic dusk-to-dawn control.
How does this photocontrol improve security for perimeter areas?
It automatically turns on lighting at dusk and off at dawn, providing continuous illumination to enhance safety and deterrence in residential, garden and perimeter zones without manual operation.
